30096 - Toro 40" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 290000001 - 290999999) (2009) AIR FILTER AND MUFFLER ASSEMBLY KAWASAKI FH430V-ES28 Parts Diagram

40" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

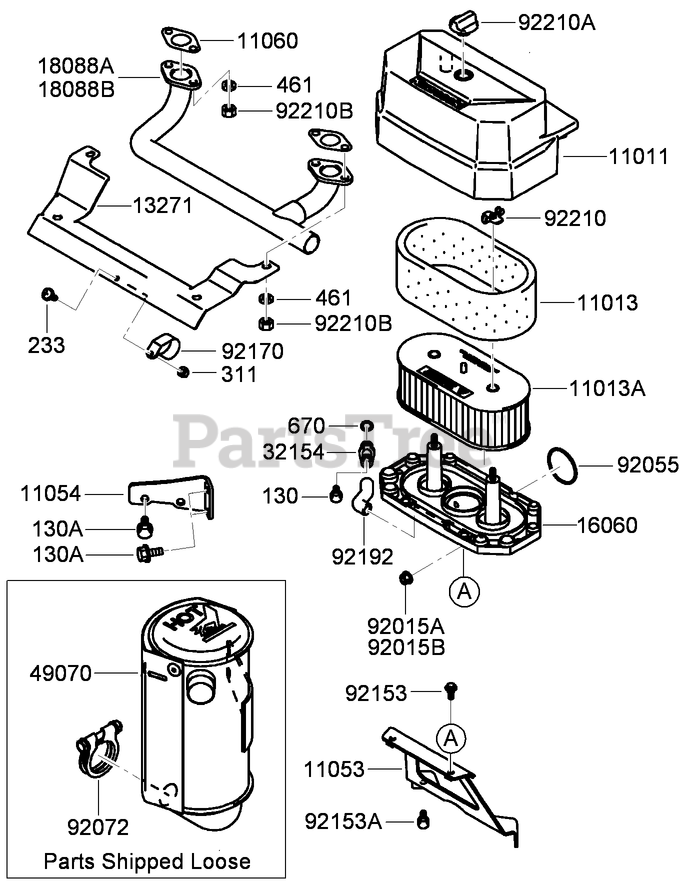

AIR FILTER AND MUFFLER ASSEMBLY KAWASAKI FH430V-ES28 Parts Diagram

  • Title

130

Kawasaki 130AA0610

BOLT-FLANGED (6X10)
(Superseded to 130B0610)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130AA0816

BOLT-FLANGED (8X16)
(Superseded to 130B0816)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

233

Kawasaki 233AA0416

SCREW-PAN, WP +-(4X16)
(Superseded to 233B0416)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 6

0

311

Kawasaki 311AA0400

NUT-HEX (4MM)
(Superseded to 311509-6152-00)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 10

0

461

Kawasaki 461DA0800

WASHER-SPRING (8MM)
(Superseded to 92200-0918)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

670

Kawasaki 670B2010

O-Ring (10mm)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 11

0

11011

Kawasaki 11011-7045

CASE-FILTER, AIR
(Superseded to 11011-7035)

Note: Obtain parts from www.kawpowerepc.com

$22.99

$

In Stock, Qty 15

0

11013

Kawasaki 11013-7025

ELEMENT-FILTER, AIR

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7031

ELEMENT-FILTER, AIR
(Superseded to 11013-7026)

Note: Obtain parts from www.kawpowerepc.com

$26.99

$

In Stock, Qty 20+

0

11053

Kawasaki 11053-7022

BRACKET

Note: Obtain parts from www.kawpowerepc.com

$36.99

$

Usually ships in 2-5 days

0

11054

Kawasaki 11054-7002-9H

BRACKET

Note: Obtain parts from www.kawpowerepc.com

$9.99

$

In Stock, only 1 left!

0

11060

Kawasaki 11060-7021

GASKET-MUFFLER
(Superseded to 11060-7006)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7022

PLATE

Note: Obtain parts from www.kawpowerepc.com

$17.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 16060-7016

PIPE-INTAKE
(Superseded to 16060-7013)

Note: Obtain parts from www.kawpowerepc.com

$22.99

$

Usually ships in 2-5 days

0

18088A

Kawasaki 18088-7001

PIPE-EXHAUST (part can be used as substitute on the product and is supplied until stock is exhausted)

Note: Obtain parts from www.kawpowerepc.com

$148.99

$

Usually ships in 2-5 days

0

18088B

Kawasaki 18088-7008

PIPE-EXHAUST
(Superseded to 18088-7001)

Note: Obtain parts from www.kawpowerepc.com

$148.99

$

Usually ships in 2-5 days

0

32154

Kawasaki 32154-7006

PIPE

Note: Obtain parts from www.kawpowerepc.com

$8.99

$

Usually ships in 2-5 days

0

49070

Kawasaki 49070-7021

MUFFLER

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92015A

Kawasaki 92015-1193

Nut (part can be used as substitute on the product and is supplied until stock is exhausted)
(Superseded to 92015-1367)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92015B

Kawasaki 92015-1367

NUT

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92055

Kawasaki 92055-7015

O-RING

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 8

0

92072

Kawasaki 92072-7012

BAND

Note: Obtain parts from www.kawpowerepc.com

$14.99

$

In Stock, Qty 9

0

92153

Kawasaki 92153-7038

BOLT (6X10)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, only 3 left!

0

92153A

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92170

Kawasaki 92170-7002

Clamp

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, only 2 left!

0

92192

Kawasaki 92192-7010

TUBE

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

In Stock, Qty 7

0

92210

Kawasaki 92210-7004

NUT (M6)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

92210A

Kawasaki 92210-7019

NUT

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0

92210B

Kawasaki 92210-7027

NUT (M8)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 20+

0
