300922B (84699) - Snapper 30" Rear-Engine Riding Mower, 9hp Electrical System (For 9HP Briggs Recoil Start) Parts Diagram

30" Rear-Engine Riding Mower, 9hp

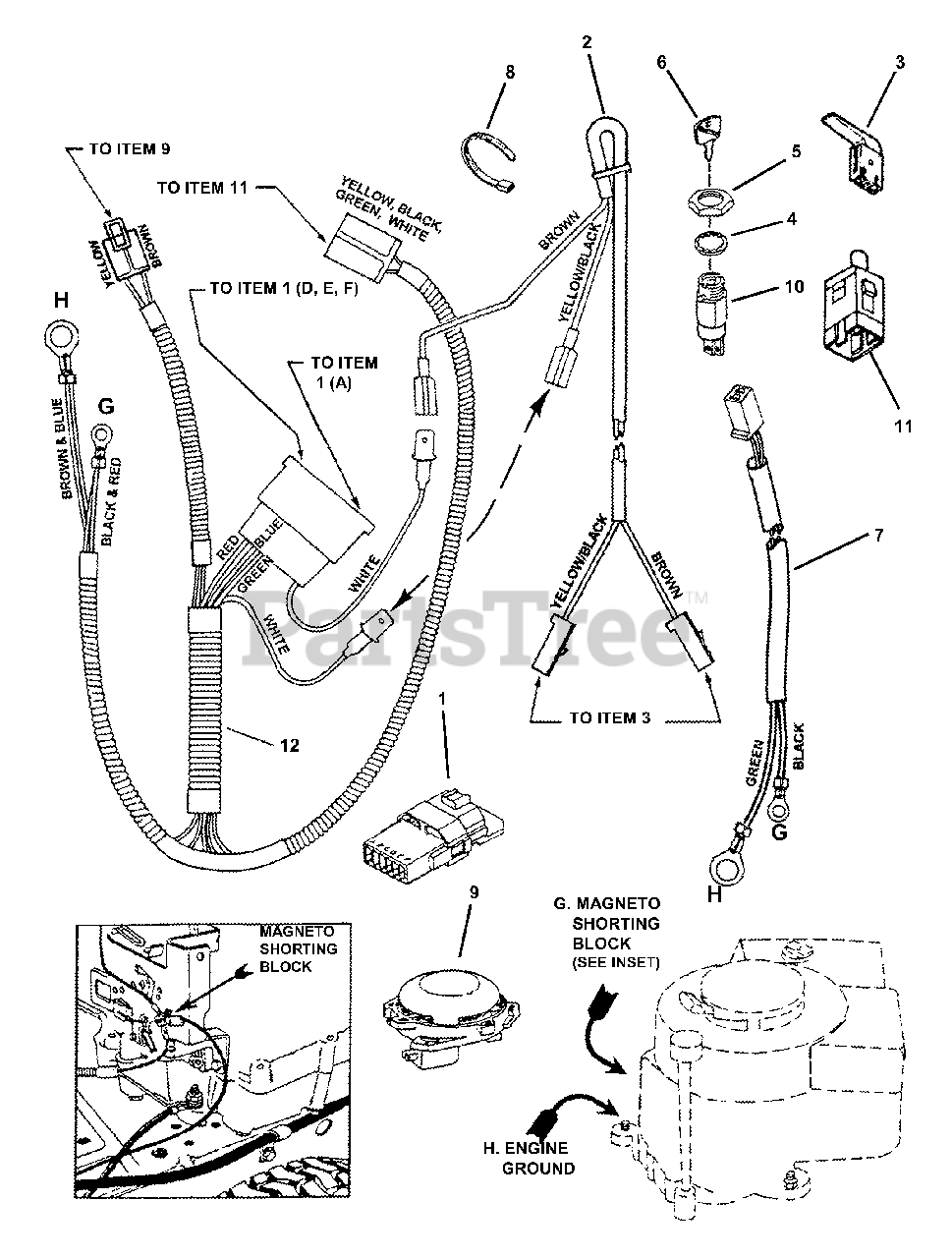

Electrical System (For 9HP Briggs Recoil Start) Parts Diagram

  • Title
1

Snapper 7063064

INTERLOCK, Module
(Superseded to 7063064YP)

Note: Was 28606

$

$

Not available

2

Snapper 7028386

HARNESS, Deck Interlock
(Superseded to 7028386YP)

$14.99

$

In Stock, only 2 left!

0

3

Snapper 7018524

SWITCH, Deck Interlock (NO)
(Superseded to 7018524YP)

$19.99

$

In Stock, Qty 9

0

4

Snapper 7091546

WASHER, 5/8 Internal Tooth Lock
(Superseded to 1960547SM)

Note: Was 90880

$4.49

$

In Stock, only 3 left!

0

5

Snapper 7015438

NUT, 5/8-32 Hex
(Superseded to 7015438YP)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7011138

KEY, Switch (2)
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

7

Snapper 7073714

HARNESS, Ground (Recoil Start)
(Superseded to 7073714YP)

$17.99

$

Usually ships in 2-12 days

0

8

Snapper 7012080

TIE, 7" Long Cable (3)
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7029211

SWITCH, Seat (NC)
(Superseded to 1714771SM)

$20.99

$

Usually ships in 2-12 days

0

10

Snapper 7017817

SWITCH, Ignition (2-Pole) (Recoil Start)
(Superseded to 7017817YP)

$31.99

$

In Stock, only 1 left!

0

11

Snapper 7022886

SWITCH, Traction Operator's Presence (NC/NO)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

12

Snapper 7028607

HARNESS, Operator's Presence Control
(Superseded to 7028607YP)

$51.99

$

Usually ships in 2-12 days
