300922B (84699) - Snapper 30" Rear-Engine Riding Mower, 9hp Blade Stop Pedals Parts Diagram

30" Rear-Engine Riding Mower, 9hp

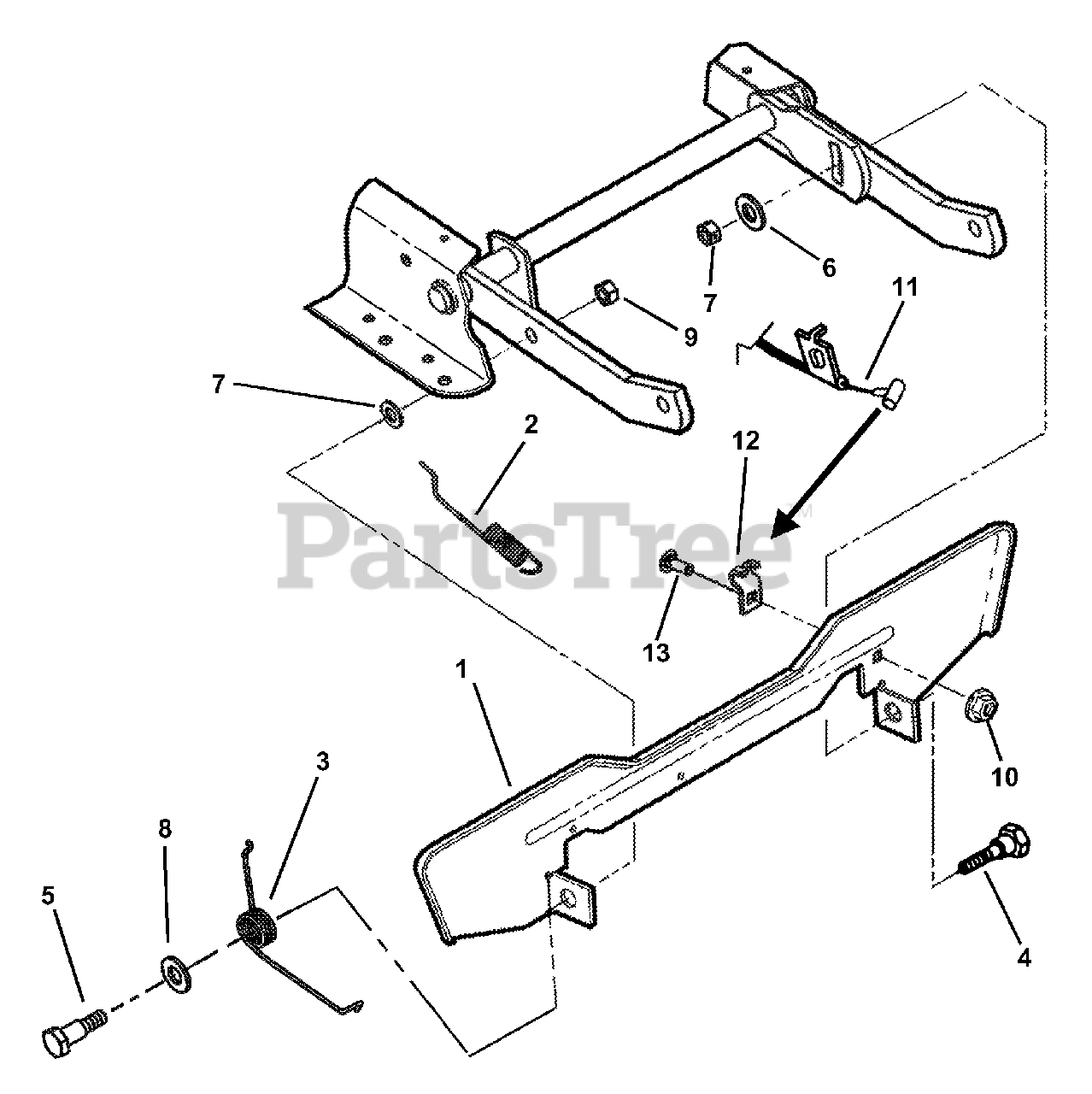

Blade Stop Pedals Parts Diagram

  • Title

1

Snapper 7073267

PEDAL, Blade Stop Control
(Superseded to 7073267YP)

$45.99

$

Usually ships in 2-12 days

0

2

Snapper 7035669

SPRING, Latching
(Superseded to 7035669YP)

$8.49

$

In Stock, only 1 left!

0

3

Snapper 7015448

SPRING, Pedal
(Superseded to 7015448YP)

$6.49

$

In Stock, only 1 left!

0

4

Snapper 7015495

BOLT, 3/8-24 Shoulder, Grade 5
(Superseded to 7015495YP)

$

$

Not available

5

Snapper 7015446

BOLT, 3/8-24 x 9/16" Shoulder
(Superseded to 7015446YP)

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 7012063

WASHER, Cone 13/32" I.D.
(Superseded to 703963)

$6.99

$

Usually ships in 2-12 days

0

7

Snapper 7091630

NUT, 3/8-24 Hex, Grade B
(Superseded to 703895)

Note: Was 90155

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7090250

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

9

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

10

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, Grade 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

11

Snapper 7073216

CABLE, No Reverse In Mow
(Superseded to 7073216YP)

$32.99

$

In Stock, only 3 left!

0

12

Snapper 7073217

CLIP, Cable
(Superseded to 7073217YP)

$5.99

$

In Stock, Qty 8

0

13

Snapper 7091530

BOLT, 1/4-20 x 3/4" Square Neck Carriage, Grade 5
(Superseded to 7091530SM)

Note: Was 91776

$3.99

$

In Stock, only 1 left!

0
