3008-2 (1690242) - Simplicity Wonderboy 30" Rear-Engine Riding Mower Engine & Seat Group Parts Diagram

Wonderboy 30" Rear-Engine Riding Mower

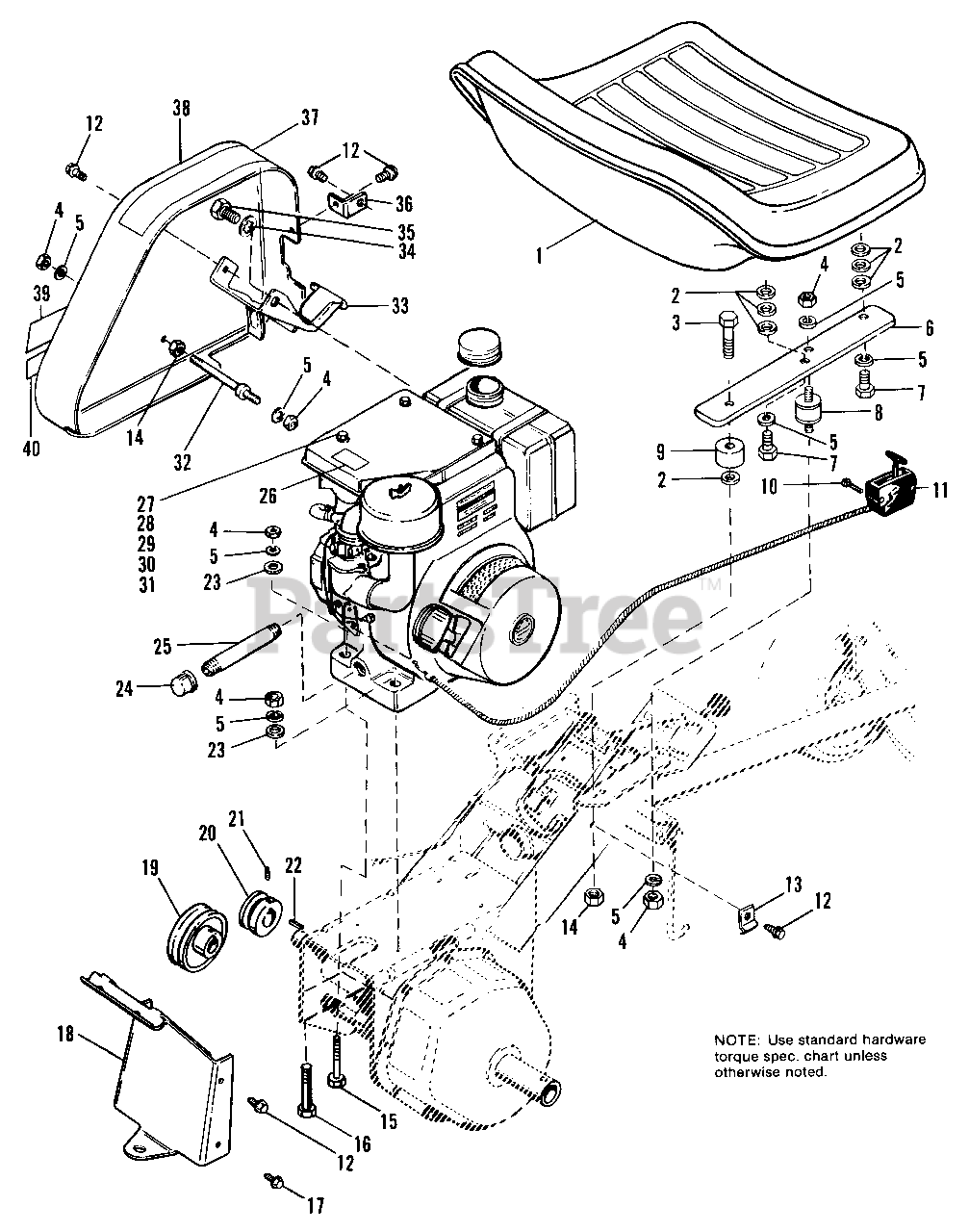

Engine & Seat Group Parts Diagram

  • Title

1

Simplicity 1651879

SEAT ASSY.

$

$

Not available

2

Simplicity 2819381

WASHER, Plain, 5/16

$

$

Not available

3

Simplicity 2821221

CASPCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

4

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1656499

SUPPORT, Seat

$

$

Not available

7

Simplicity 2821333

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

8

Simplicity 2157094SM

CONNECTOR, Cushion

$

$

Not available

9

Simplicity 1608535

MOUNT, Rubber

$

$

Not available

10

Simplicity 2828732

SCREW, Hex, Washer Hd., #10-24 x 1

$

$

Not available

11

Simplicity 1608962

THROTTLE & CHOKE ASSY.

$

$

Not available

12

Simplicity 2824856

SCREW, Tapping, 5/16-18 x 1/2

$

$

Not available

13

Simplicity 2826271SM

CLIP

$

$

Not available

14

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

15

Simplicity 2156151

SCREW, Hex, Special

$

$

Not available

16

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 2825003

SCREW, Tapping, 1/4-20 x 1/2

$

$

Not available

18

Simplicity 1608938

PLATE, Hitch, Rear

$

$

Not available

19

Simplicity 1609451

PULLEY, Drive, Transmission

$

$

Not available

20

Simplicity 1609449

PULLEY, Engine

$

$

Not available

21

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

22

Simplicity 2805100SM

KEY, 1/4 x 1/4 x 2-1/4

$5.49

$

In Stock, only 1 left!

0

23

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

24

Simplicity 2801752

CAP, Pipe, 3/8

$

$

Not available

25

Simplicity 901496

NIPPLE, Pipe

$

$

Not available

26

Simplicity 1609140

DECAL, Caution

$

$

Not available

27

Simplicity 2819316

CAPSCREW, Hex Hd., 1/4-20 x 1-3/4

$

$

Not available

28

Simplicity 2829000

SCREW, Taptite, Hex, 1/4-20 x 3/8

$

$

Not available

29

Simplicity 1608963

SHIELD, Heat

$

$

Not available

30

Simplicity 1608980

SUPPORT, Heat Shield

$

$

Not available

31

Simplicity 1608994

SPACER

$

$

Not available

32

Simplicity 158418

STUD

$

$

Not available

33

Simplicity 1609443

STOP, Belt

$

$

Not available

34

Simplicity 2809589

LOCKWASHER, Int., 1/2

$

$

Not available

35

Simplicity 2821370

CAPSCREW, Hex Hd., 1/2-20 x 1

$

$

Not available

36

Simplicity 1609444

BRACKET, Pulley Guard

$

$

Not available

37

Simplicity 1609232

DECAL, Safety

$

$

Not available

38

Simplicity 1609445

GUARD, Pulley

$

$

Not available

39

Simplicity 1657107

DECAL, Cover

$

$

Not available

40

Simplicity 1657109

DECAL, 3008

$

$

Not available
