3008-2 (1690242) - Simplicity Wonderboy 30" Rear-Engine Riding Mower 30" Draw Bar & Grass Catcher Adaptor Kit Parts Diagram

Wonderboy 30" Rear-Engine Riding Mower

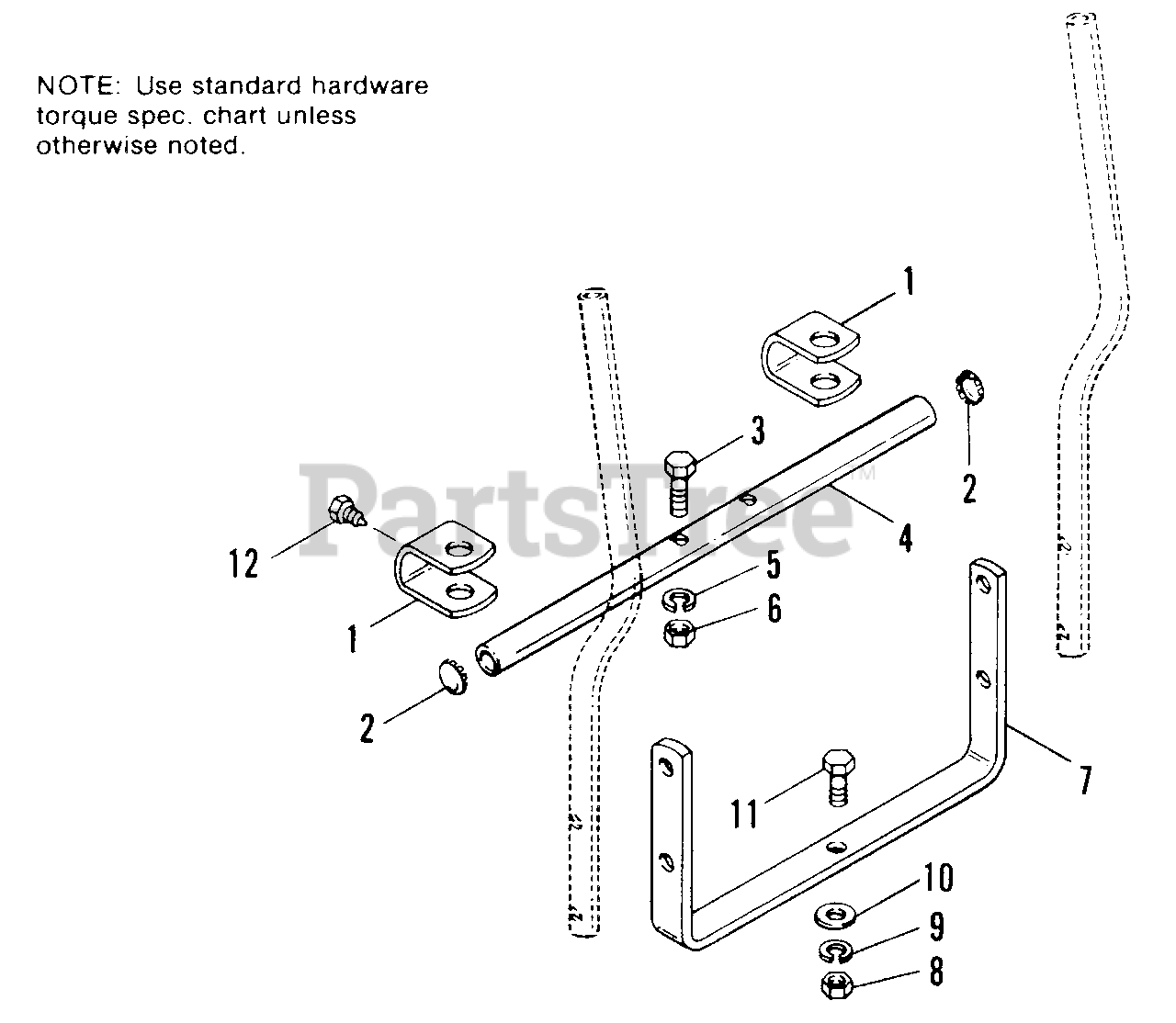

30" Draw Bar & Grass Catcher Adaptor Kit Parts Diagram

  • Title

1

Simplicity 177391

CLAMP

$

$

Not available

2

Simplicity 1608835

BUTTON, Plug

$

$

Not available

3

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

4

Simplicity 1611463

TUBE, Rear

$

$

Not available

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 177392

SUPPORT, Bracket

$

$

Not available

8

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

9

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

10

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

12

Simplicity 2827428

SCREW, Hex, Washer Hd., Taptite, 1/4-20 x 3/8

$

$

Not available
