3008 (1690115) - Simplicity Broadmoor Lawn Tractor Frame Hood & Dash Group (2932I01) Parts Diagram

Broadmoor Lawn Tractor

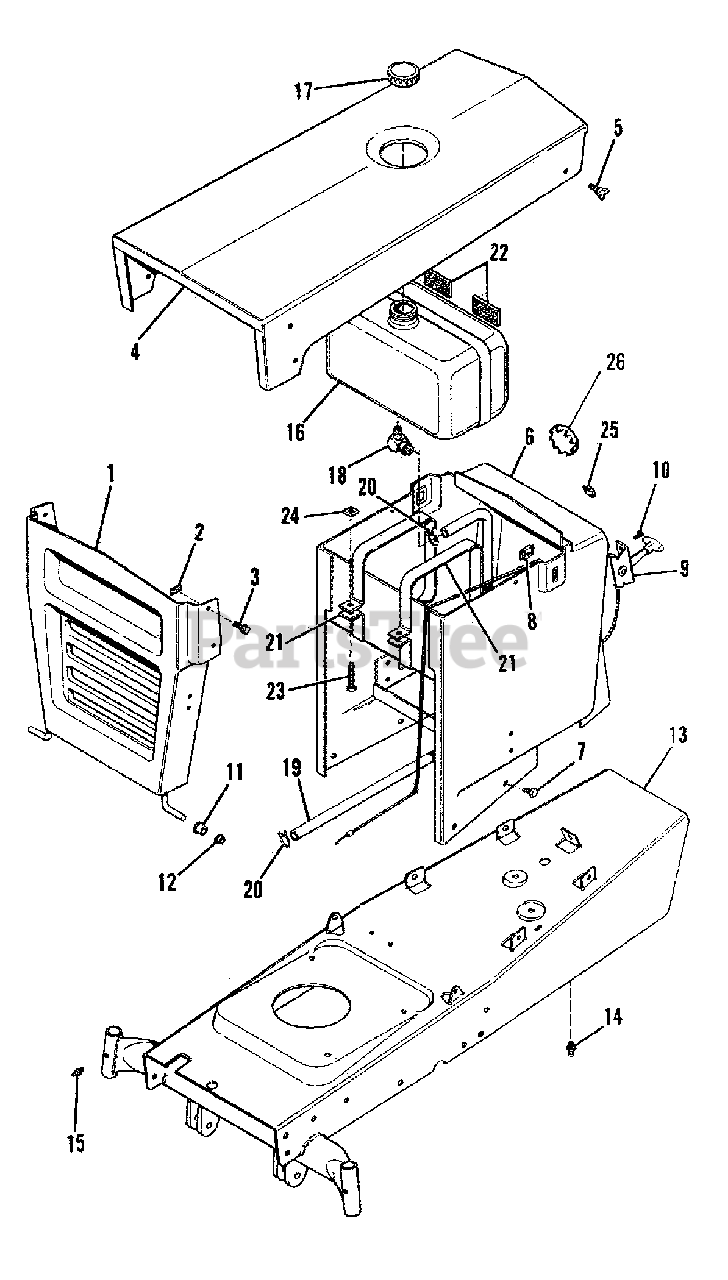

Frame Hood & Dash Group (2932I01) Parts Diagram

  • Title

1

Simplicity 1652366

GRILL ASSEMBLY

$

$

Not available

2

Simplicity 2828705

J-NUT

$

$

Not available

3

Simplicity 2830594

SCREW, Flange, 1/4-20 x 3/4" Large

$

$

Not available

4

Simplicity 1652367

HOOD

$

$

Not available

5

Simplicity 2828693

SCREW, Thumb

$

$

Not available

6

Simplicity 1652161

DASH ASSEMBLY

$

$

Not available

7

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8 " Large

$

$

Not available

8

Simplicity 2830659

NUT, Retainer

$

$

Not available

9

Simplicity 1650999

CONTROL

$

$

Not available

10

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8 " Large

$

$

Not available

11

Simplicity 2118273SM

BUSHING

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 1960093SM

FASTENER, Pushnut
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1653522

FRAME ASSEMBLY

$

$

Not available

14

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

15

Simplicity 2814687

FITTING, Grease

$

$

Not available

16

Simplicity 156174

TANK, Fuel

$

$

Not available

17

Simplicity 2156175SM

CAP, Fuel Tank

$31.99

$

In Stock, only 4 left!

0

18

Simplicity 174640

ELBOW, 90 Degrees

$

$

Not available

19

Simplicity 2156177

HOSE, Fuel

$

$

Not available

20

Simplicity 2154372

CLAMP, Hose

$

$

Not available

21

Simplicity 1653613

STRAP, Tank

$

$

Not available

22

Simplicity 106582

GASKET, Felt

$

$

Not available

23

Simplicity 930534

SCREW, Machine, 1/4-20 x 1-1/2" Large

$

$

Not available

24

Simplicity 2830633

NUT, Square, 1/4-20

$

$

Not available

25

Simplicity 2156319

BUTTON, Plug

$

$

Not available

26

Simplicity 156169

BUTTON, Plug

$

$

Not available
