3008 (1690115) - Simplicity Broadmoor Lawn Tractor Electrical Group (2932I06) Parts Diagram

Broadmoor Lawn Tractor

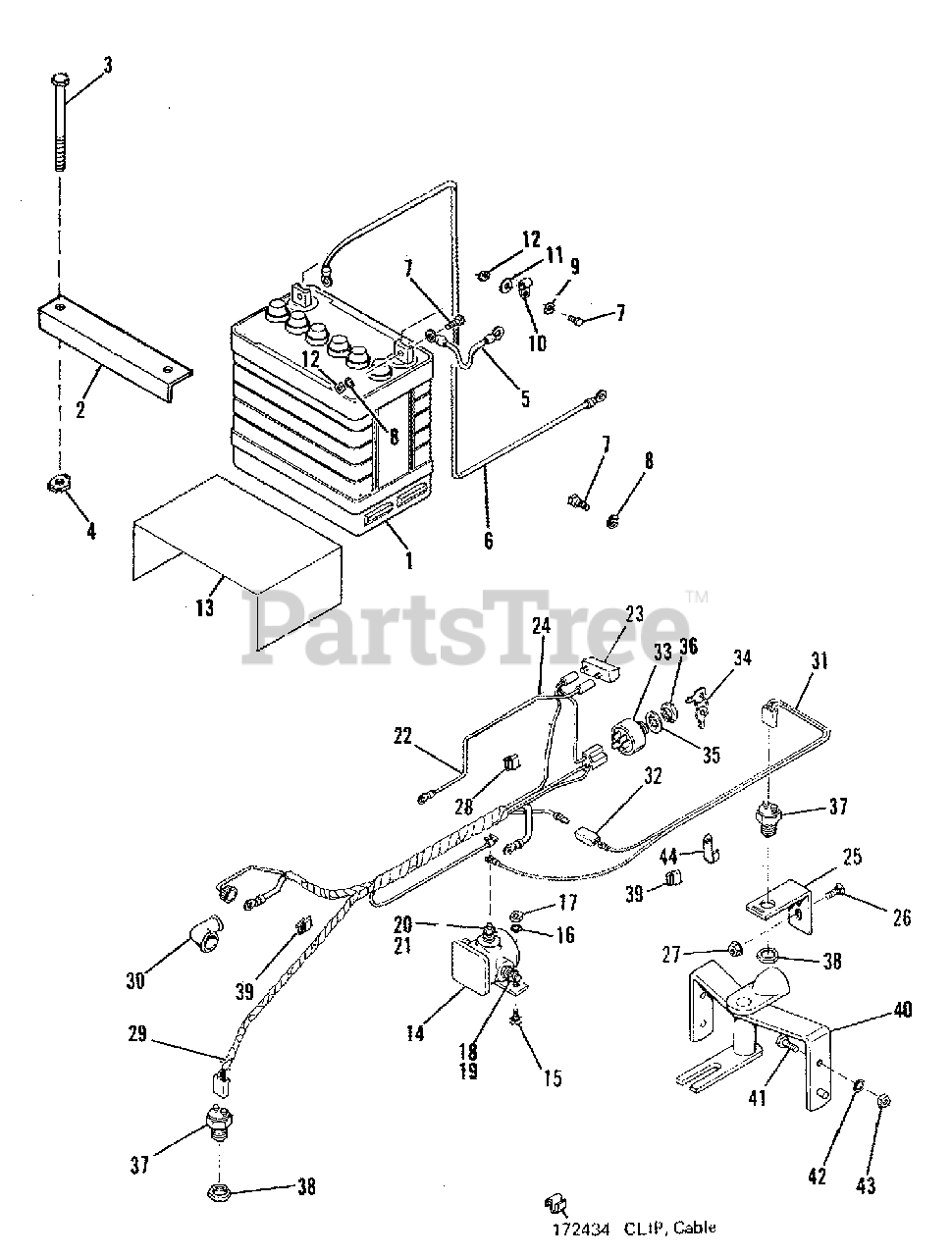

Electrical Group (2932I06) Parts Diagram

  • Title

1

Simplicity 2170059

BATTERY

$

$

Not available

2

Simplicity 170123

HOLD DOWN, Battery

$

$

Not available

3

Simplicity 2828634

CAPSCRE, Hex, 1/4"-20 x 7" Large

$

$

Not available

4

Simplicity 2826022

NUT, Retainer, 1/4"-20

$

$

Not available

5

Simplicity 2122213

CABLE

$

$

Not available

6

Simplicity 1707056SM

CABLE

$10.99

$

Usually ships in 2-12 days

0

7

Simplicity 2816019

CAPSCREW, Hex, 1/4"-20 x 3/4" Large

$

$

Not available

8

Simplicity 2816964SM

LOCKWASHER, 1/4"
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

9

Simplicity 909367

LOCKWASHER, 1/4"

$

$

Not available

10

Simplicity 158476

CLAMP

$

$

Not available

11

Simplicity 2817377

WASHER, Plain, 1/4"

$

$

Not available

12

Simplicity 2816622SM

NUT, Full Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 122143

INSULATION, Battery

$

$

Not available

14

Simplicity 2122216SM

SOLENOID

$

$

Not available

15

Simplicity 2823333

BOLT, Carriage

$

$

Not available

16

Simplicity 2816964SM

LOCKWASHER, 1/4"
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

17

Simplicity 2816622SM

NUT, Full Hex, 1/4"-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1917372SM

NUT, Full Hex, 5/16-18"
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 2822711

LOCKWASHER, Shake-Proof No.10

$

$

Not available

21

Simplicity 2817415

NUT, Full Hex No.10-32

$

$

Not available

22

Simplicity 1651789

WIRE, Solenoid to Circuit Breaker

$

$

Not available

23

Simplicity 2172163

BREAKER, Circuit

$

$

Not available

24

Simplicity 1651826

WIRE, Neg. Amp to Solenoid

$

$

Not available

25

Simplicity 178428

BRACKET

$

$

Not available

26

Simplicity 2830517

BOLT, Carriage, 1/4- x 3/4" Large

$

$

Not available

27

Simplicity 2830641

NUT, Flange, 1/4"-20

$

$

Not available

28

Simplicity 2172434SM

CLIP, Cable

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 1651085

HARNESS ASSEMBLY

$

$

Not available

30

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

31

Simplicity 122217

WIRE, Safety Switch

$

$

Not available

32

Simplicity 172100

CONNECTOR, Insulator

$

$

Not available

33

Simplicity 2178280SM

SWITCH, Ignition
(Superseded to 421064MA)

$32.99

$

In Stock, Qty 9

0

34

Simplicity 1717163SM

KEY & RING ASSEMBLY

$8.99

$

In Stock, Qty 20+

0

35

Simplicity 2818906

LOCKWASHER, 5/8" Int.

$

$

Not available

36

Simplicity 2122234SM

NUT, Special
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

37

Simplicity 2177522SM

SWITCH, Safety

$49.99

$

In Stock, Qty 9

0

38

Simplicity 1930647

NUT, Pal, 9/16-18
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

39

Simplicity 2165073SM

CLIP, Speed

$2.99

$

Usually ships in 2-12 days

0

40

Simplicity 1652319

PIVOT ASSEMBLY

$

$

Not available

41

Simplicity 2817397

CAPSCREW, 5/16-18 x 3/4" Large

$

$

Not available

42

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

43

Simplicity 1917372SM

NUT, Full Hex, 5/16-18"
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

44

Simplicity 1606820

J" CUP, Open`

$

$

Not available
