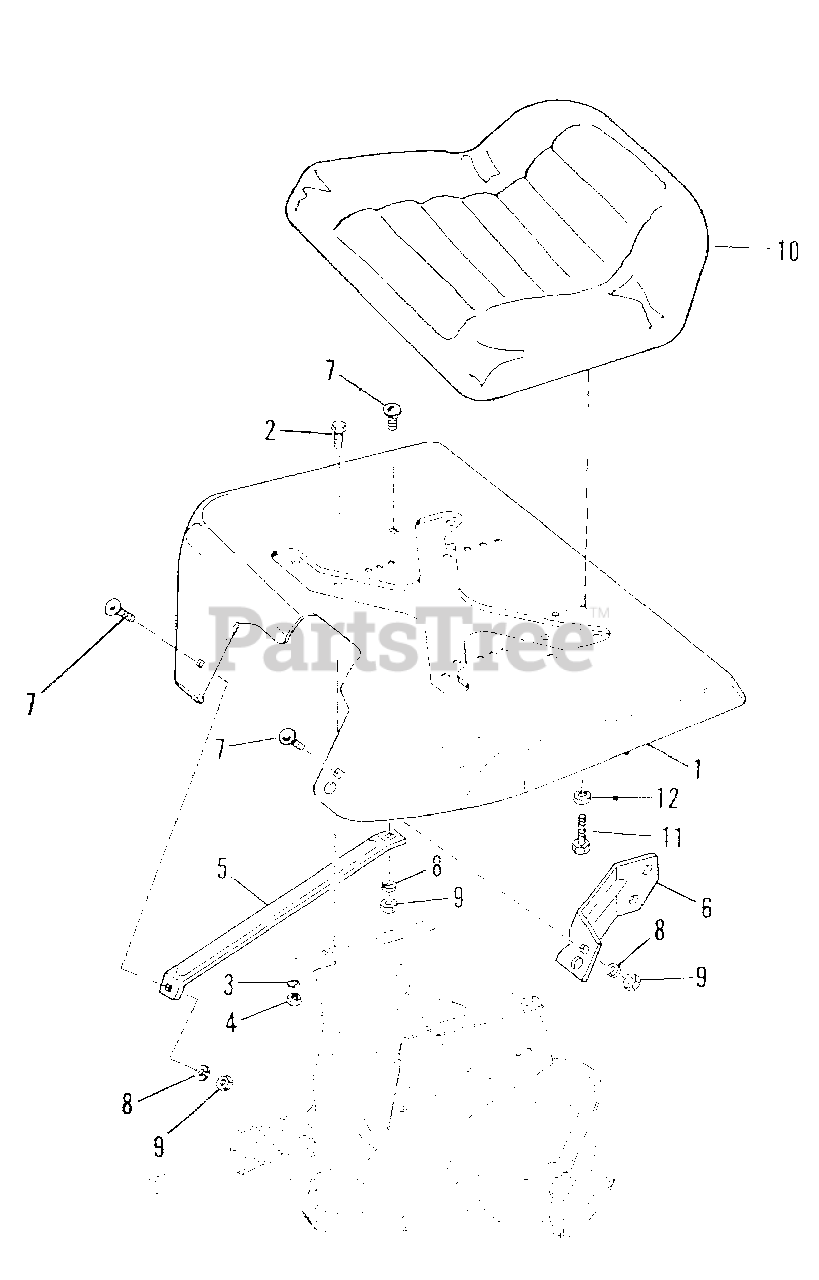

3008 (1690090) - Simplicity Broadmoor 36" Lawn Tractor Seat & Support Group (2932I07) Parts Diagram

Broadmoor 36" Lawn Tractor

Seat & Support Group (2932I07) Parts Diagram

  • Title

1

Simplicity 1652348

SUPPORT, Seat

$

$

Not available

2

Simplicity 2807729

CAPSCREW, Hex, 5/16"-18 X 1-1/4" Large

$

$

Not available

3

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1917372SM

NUT, Full, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1652349

BRACE, Seat Support

$

$

Not available

6

Simplicity 1653503

BRACKET

$

$

Not available

7

Simplicity 923700

BOLT, Carriage, 5/16-18 X 1/2" Large

$

$

Not available

8

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917372SM

NUT, Full Hex, 5/16-18"
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1651879

SEAT ASSEMBLY

$

$

Not available

11

Simplicity 2817397

CAPSCREW, Hex, 5/16"-18 x 3/4" Large

$

$

Not available

12

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0
