3008 (1690090) - Simplicity Broadmoor 36" Lawn Tractor PTO Group (2932I02) Parts Diagram

Broadmoor 36" Lawn Tractor

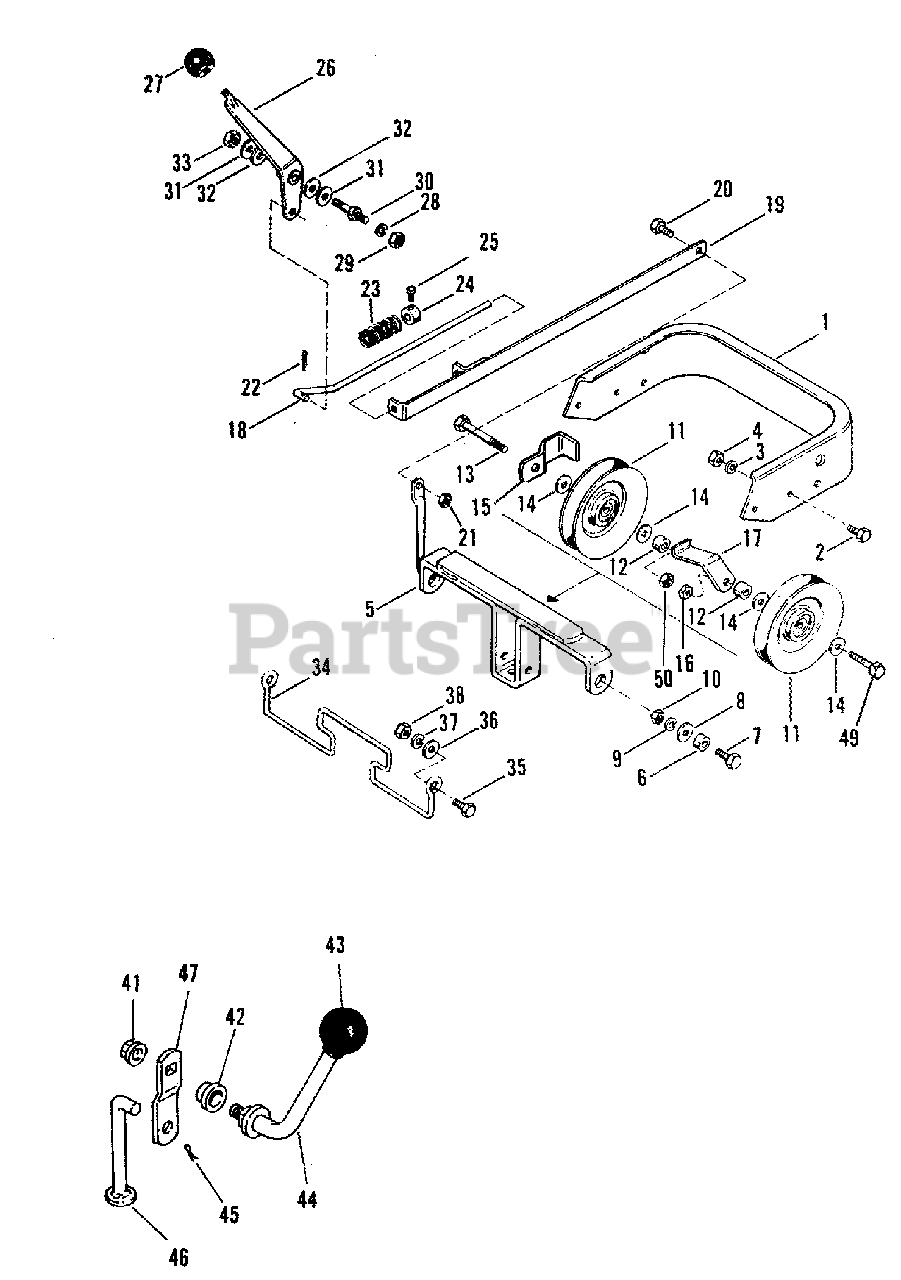

PTO Group (2932I02) Parts Diagram

  • Title

1

Simplicity 1652136

BUMPER, Front

$

$

Not available

2

Simplicity 2817397

CAPSCREW, Hex 5/16-18 x 3/4" Large

$

$

Not available

3

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1917372SM

NUT, Hex, Full 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1652135

CLEVIS ASSEMBLY, Pulley

$

$

Not available

6

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 1 left!

0

7

Simplicity 2807731

CAPSCREW, Hex, 3/8"-16 x 1" Large

$

$

Not available

8

Simplicity 1924940SM

WASHER, Plain, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

10

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16"
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

11

Simplicity 2101096SM

PULLEY

$59.99

$

In Stock, only 3 left!

0

12

Simplicity 165177

SPACER

$

$

Not available

13

Simplicity 2822606

CAPSCREW, 3/8-24 x 1-3/4" Large

$

$

Not available

14

Simplicity 2817642

WASHER, Plain, 3/8"

$

$

Not available

15

Simplicity 2162115SM

STOP, Belt
(Superseded to 2162115ASM)

$12.99

$

Usually ships in 2-12 days

0

16

Simplicity 2823428

LOCKNUT, Full Hex, 3/8"-16

$

$

Not available

17

Simplicity 1653400

STOP

$

$

Not available

18

Simplicity 176354

ROD, Clutch, P.T.O.

$

$

Not available

19

Simplicity 106399

GUIDE ASSEMBLY, Idler

$

$

Not available

20

Simplicity 2808127

CAPSCREW, Hex, 3/8"-16 x 3/4" Large

$

$

Not available

21

Simplicity 2823428

LOCKNUT, Full Hex, 3/8"-16

$

$

Not available

22

Simplicity 2822000

PIN, Cotter, 3/32 x 5/8" Large

$

$

Not available

23

Simplicity 2163103SM

SPRING

$8.49

$

Usually ships in 2-12 days

0

24

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

25

Simplicity 2828804

SCREW, Set, 1/4-20 x 3/8" Large

$

$

Not available

26

Simplicity 170103

LEVER ASSEMBLY

$

$

Not available

27

Simplicity 1729255SM

BALL, Knob

$12.99

$

Usually ships in 2-12 days

0

28

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18"
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 170108

STUD

$

$

Not available

31

Simplicity 2817642

WASHER, Plain, 5/16"

$

$

Not available

32

Simplicity 2159134

WASHER, Special

$

$

Not available

33

Simplicity 2823362

NUT, Hex, Full Lock, 5/16-18"

$

$

Not available

34

Simplicity 2165043SM

stop, Belt, P.T.O.

$

$

Not available

35

Simplicity 2817397

CAPSCREW, Hex, 5/16"-18 x 3/4" Large

$

$

Not available

36

Simplicity 2817642

WASHER, Plain, 5/16"

$

$

Not available

37

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 1917372SM

NUT, Full Hex, 5/16-18"
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

39

Simplicity 927322

CAPSCREW, Hex, 3/8-24 x 2" Large

$

$

Not available

40

Simplicity 2830628

LOCKNUT, Full Hex, 3/8"-24

$

$

Not available

41

Simplicity 2823428

LOCKNUT, 3/8"

$

$

Not available

42

Simplicity 1650827

TUBE

$

$

Not available

43

Simplicity 1729255SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

44

Simplicity 2174664

HANDLE, Clutch

$

$

Not available

45

Simplicity 919313

PIN, Cotter

$

$

Not available

46

Simplicity 1650828

ROD

$

$

Not available

47

Simplicity 1653509

ARM, Lift

$

$

Not available
