30079 - Toro 52" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 310000001 - 310999999) (2010) DECK DRIVE AND BAFFLE ASSEMBLY Parts Diagram

52" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

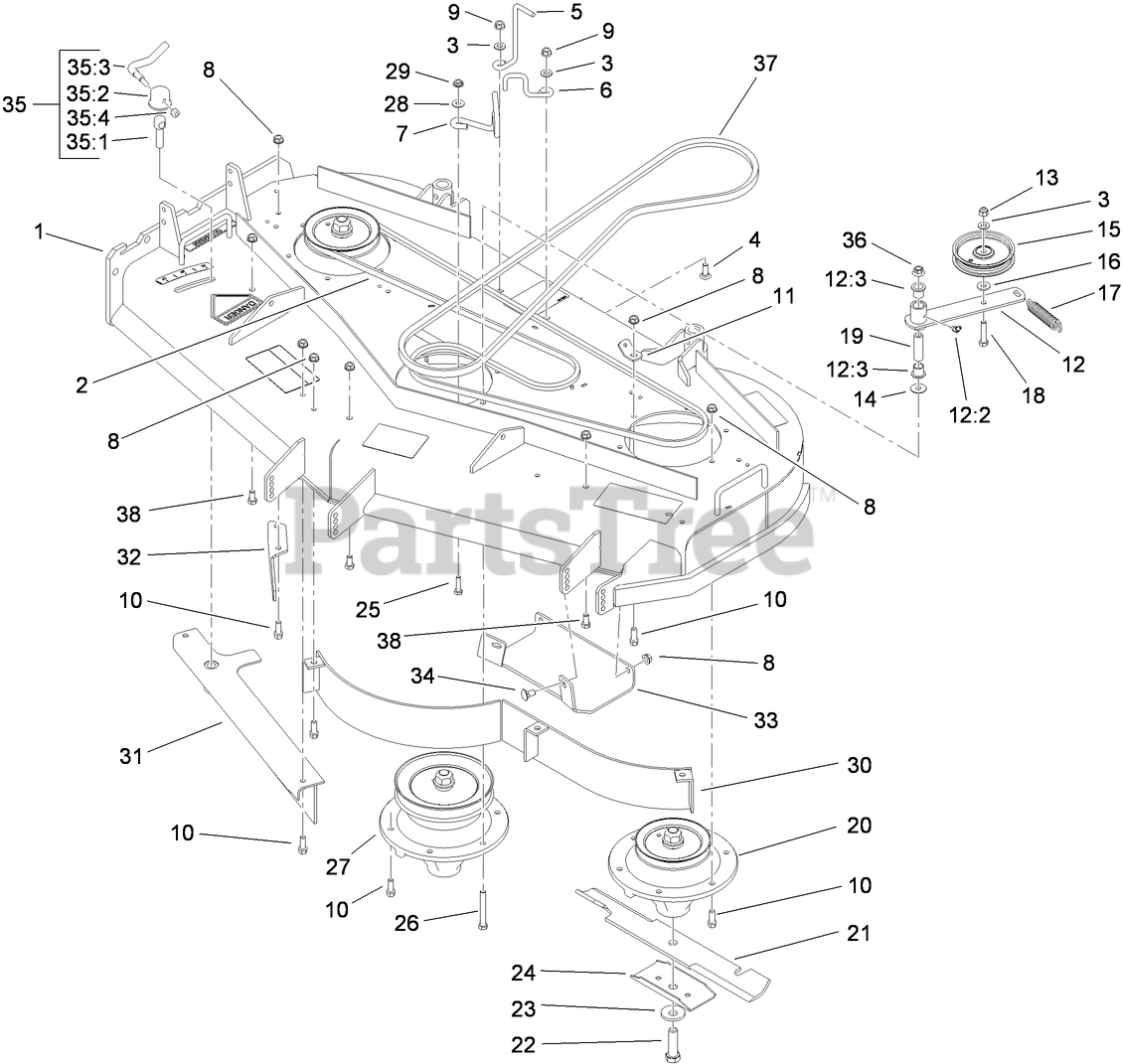

DECK DRIVE AND BAFFLE ASSEMBLY Parts Diagram

  • Title

1

Toro 112-7083

DECK ASM

$3990.99

$

Usually ships in 3-6 days

0

2

Toro 108-2694

BELT-V

$96.99

$

Usually ships in 3-6 days

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

4

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

5

Toro 98-5980

GUIDE-BELT

$83.99

$

In Stock, only 1 left!

0

6

Toro 110-6975

GUIDE-BELT

$26.99

$

Usually ships in 3-6 days

0

7

Toro 105-0850

GUIDE-BELT

$38.99

$

Usually ships in 3-6 days

0

8

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

10

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

11

Toro 104-6374

PLATE-SPRING

$20.99

$

Usually ships in 3-6 days

0

12

Toro 108-2728

IDLER ARM ASM

$92.99

$

Usually ships in 3-6 days

0

12:2

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

12:3

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 3 left!

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

14

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

15

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 3 left!

0

16

Toro 9202414

WASHER-SPACER

$5.49

$

Usually ships in 3-6 days

0

17

Toro 51-3650

SPRING-EXTENSION

$23.99

$

In Stock, Qty 5

0

18

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 112-7091

SPACER

$15.99

$

Usually ships in 3-6 days

0

20

Toro 110-0728

SPINDLE ASM

$539.99

$

Usually ships in 3-6 days

0

21

Toro 105-7781-03

BLADE-18IN, HI FLOW

$28.99

$

In Stock, Qty 13

0

22

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

23

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 18

0

24

Toro 108-2727

STIFFENER-BLADE

$34.99

$

In Stock, only 1 left!

0

25

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

26

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

27

Toro 110-0730

SPINDLE ASM

$663.99

$

Usually ships in 3-6 days

0

28

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

30

Toro 110-0740-03

BAFFLE

$274.99

$

Usually ships in 3-6 days

0

31

Toro 110-0745-03

ADJUSTABLE BAFFLE ASM

$

$

Not available

32

Toro 110-0754-01

BAFFLE-DISCHARGE

$38.99

$

Usually ships in 3-6 days

0

33

Toro 106-7358-01

Plate-Skid

$99.99

$

Usually ships in 3-6 days

0

34

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

35

Toro 107-1664

LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

35:1

Toro 106-3239

Screw-Lock

$52.99

$

Usually ships in 3-6 days

0

35:2

Toro 107-1644

CAP-LOCK

$38.99

$

In Stock, only 2 left!

0

35:3

Toro 106-3241

Lever-Lock
(Superseded to 107-1664)

$75.99

$

Usually ships in 3-6 days

0

35:4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

37

Toro 108-2693

BELT-V

$93.99

$

Usually ships in 3-6 days

0

38

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0
