30072 - Toro 32" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 311000001 - 311999999) (2011) SPINDLE AND BLADE ASSEMBLY Parts Diagram

32" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

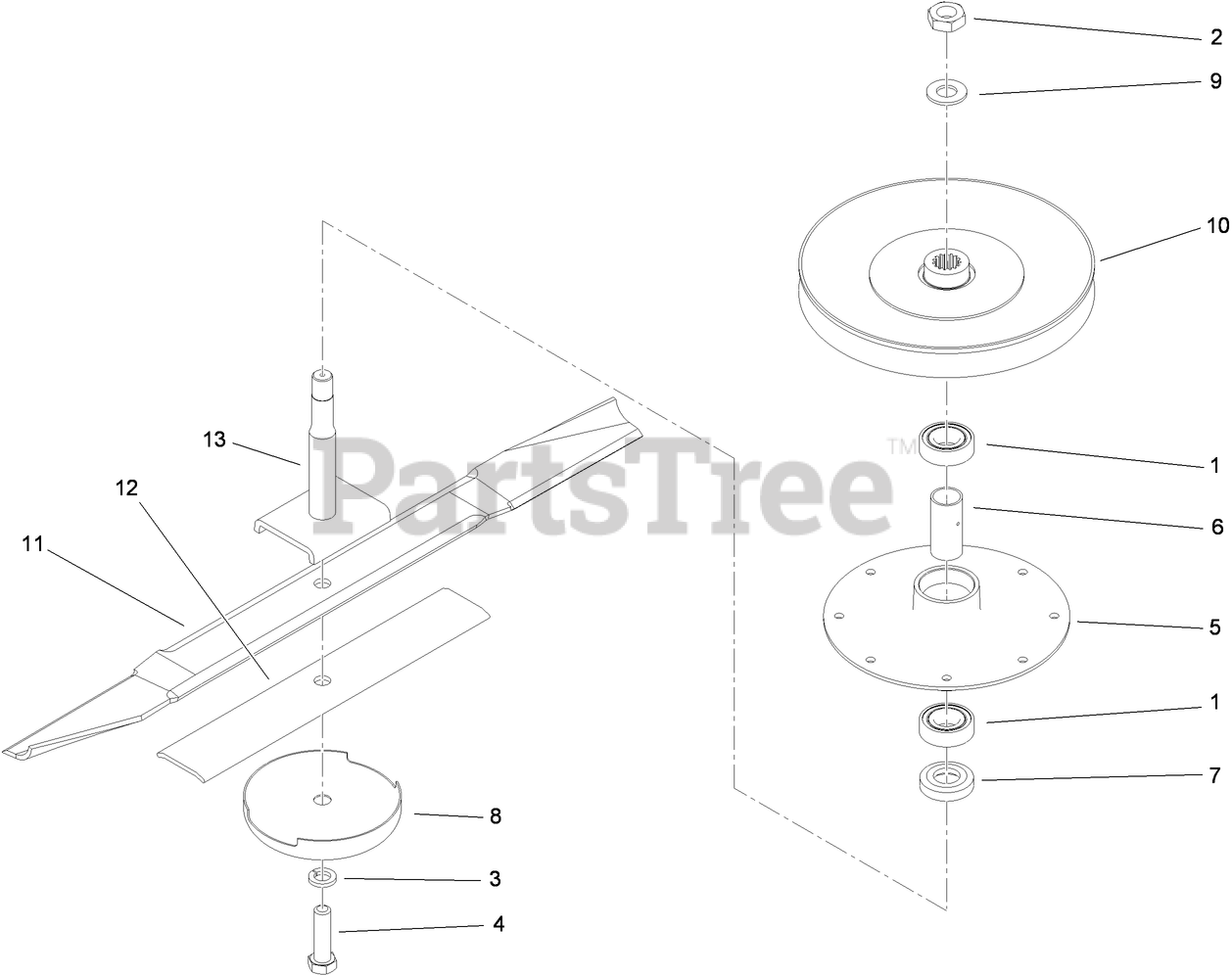

SPINDLE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 10

0

2

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

3

Toro 3253-23

WASHER-LOCK/SP

$5.49

$

In Stock, only 3 left!

0

4

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

5

Toro 67-6060

HOUSING-SPINDLE
(Superseded to 67-6060-03)

$570.99

$

Usually ships in 3-6 days

0

6

Toro 67-6070

SPACER-BEARING

$56.99

$

Usually ships in 3-6 days

0

7

Toro 67-6080

SPACER

$102.99

$

Usually ships in 3-6 days

0

8

Toro 92-6313

CUP-SCALP, ANTI

$53.99

$

In Stock, only 1 left!

0

9

Toro 106-0776

Washer-Pinion

$4.99

$

Usually ships in 3-6 days

0

10

Toro 74-0580

PULLEY ASM

$289.99

$

Usually ships in 3-6 days

0

11

Toro 80-4430

BLADE-RECYCLER
(Superseded to 80-4430-03)

$52.99

$

In Stock, only 1 left!

0

12

Toro 82-4750-03

SPACER-BLADE

$77.99

$

Usually ships in 3-6 days

0

13

Toro 105-4607-03

SPINDLE SHAFT ASM
(Superseded to 105-4607)

$210.99

$

Usually ships in 3-6 days

0
