30071 - Toro 91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp (SN: 314000001 - 314999999) (2014) UPPER CONTROL ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp

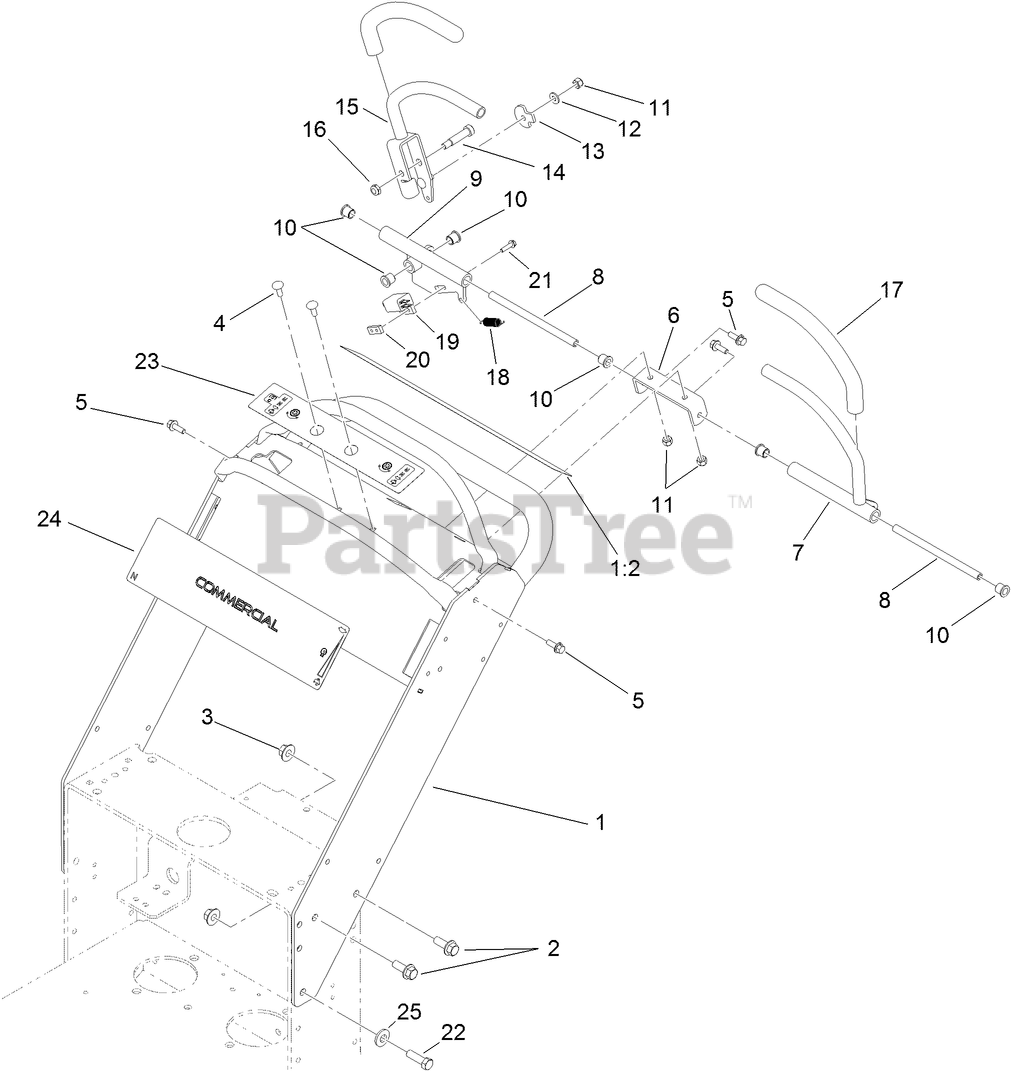

UPPER CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 114-3437

HANDLE ASM

$633.99

$

Usually ships in 3-6 days

0

1:2

Toro 114-3422

DECAL-WARNING, CONTROL

$52.99

$

Usually ships in 3-6 days

0

2

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

3

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

4

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

5

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

6

Toro 114-0235

BRACKET-SUPPORT

$33.99

$

Usually ships in 3-6 days

0

7

Toro 114-0272-03

LEVER-CONTROL

$126.99

$

Usually ships in 3-6 days

0

8

Toro 119-1885

SHAFT-PIVOT, MOTION CONTROL

$21.99

$

Usually ships in 3-6 days

0

9

Toro 114-0234

MOTION CONTROL ASM

$104.99

$

Usually ships in 3-6 days

0

10

Toro 103-9928

BEARING

$7.99

$

In Stock, Qty 11

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 114-0268

CAM-LEVER

$6.49

$

Usually ships in 3-6 days

0

14

Toro 114-0239

SCREW-HSH

$12.99

$

In Stock, only 2 left!

0

15

Toro 114-0238-03

LEVER

$126.99

$

Usually ships in 3-6 days

0

16

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 12

0

17

Toro 119-0222

GRIP

$9.49

$

Usually ships in 3-6 days

0

18

Toro 114-0249

SPRING-EXTENSION

$13.99

$

Usually ships in 3-6 days

0

19

Toro 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 15

0

20

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

21

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

22

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Toro 114-3424

DECAL-CONTROL

$20.99

$

Usually ships in 3-6 days

0

24

Toro 114-3442

DECAL-PANEL, CONTROL

$82.99

$

Usually ships in 3-6 days

0

25

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0
