30071 - Toro 91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp (SN: 314000001 - 314999999) (2014) GROUND DRIVE ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp

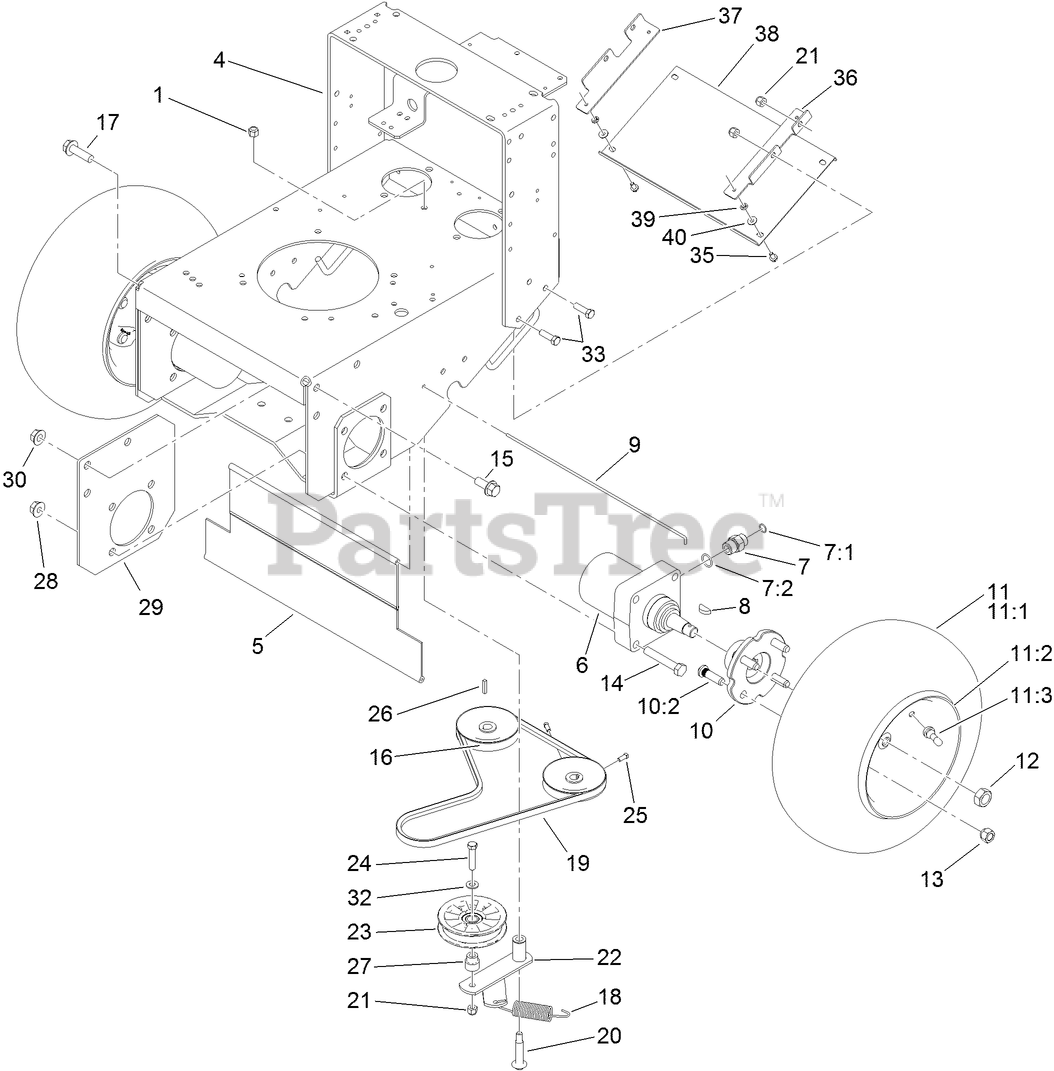

GROUND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

4

Toro 117-3528-01

FRAME-HYDRO

$947.99

$

Usually ships in 3-6 days

0

5

Toro 95-1526

SHIELD-TRAILING

$80.99

$

Usually ships in 3-6 days

0

6

Toro 104-1171

HYD MOTOR ASM

$1198.99

$

Usually ships in 3-6 days

0

7

Toro 340-6

FITTING-STRAIGHT

$20.99

$

In Stock, only 2 left!

0

7:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

7:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

8

Toro 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 5

0

9

Toro 95-1529

ROD-SHIELD

$5.49

$

Usually ships in 3-6 days

0

10

Toro 105-0800

WHEEL HUB ASM

$248.99

$

In Stock, only 1 left!

0

10:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

11

Toro 106-0892

WHEEL AND TIRE ASM

$307.99

$

Usually ships in 3-6 days

0

11:1

Toro 104-6322

TIRE

$111.99

$

In Stock, only 2 left!

0

11:2

Toro 106-0893

WHEEL

$173.99

$

Usually ships in 3-6 days

0

11:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

12

Toro 85-7310

NUT-MOTOR, WHEEL

$27.99

$

Usually ships in 3-6 days

0

13

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

14

Toro 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

15

Toro 3234-32

SCREW-HHF

$10.99

$

In Stock, only 1 left!

0

16

Toro 105-5648

PULLEY-PUMP

$125.99

$

Usually ships in 3-6 days

0

17

Toro 3234-22

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

18

Toro 68-9950

SPRING-TRACTION

$21.99

$

In Stock, only 2 left!

0

19

Toro 110-5049

BELT-V

$43.99

$

In Stock, only 1 left!

0

20

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

22

Toro 86-4770

IDLER LEVER ASM

$107.99

$

Usually ships in 3-6 days

0

23

Toro 109-4077

PULLEY-IDLER, FLAT

$21.99

$

In Stock, only 1 left!

0

24

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 120-6467

SCREW-SET, SQH

$3.49

$

Usually ships in 3-6 days

0

26

Toro 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

27

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

28

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

29

Toro 108-6657-01

PLATE-FRAME

$115.99

$

Usually ships in 3-6 days

0

30

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

32

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

33

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

35

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

36

Toro 110-5012-01

ANGLE-MOUNTING, LEFT

$33.99

$

Usually ships in 3-6 days

0

37

Toro 110-5013-01

ANGLE-MOUNTING, RIGHT

$33.99

$

Usually ships in 3-6 days

0

38

Toro 110-5014-01

PANEL-BOTTOM

$74.99

$

Usually ships in 3-6 days

0

39

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

40

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
