30071 - Toro 91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp (SN: 313000001 - 313999999) (2013) DECK DEFLECTOR, ROLLER AND COVER ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp

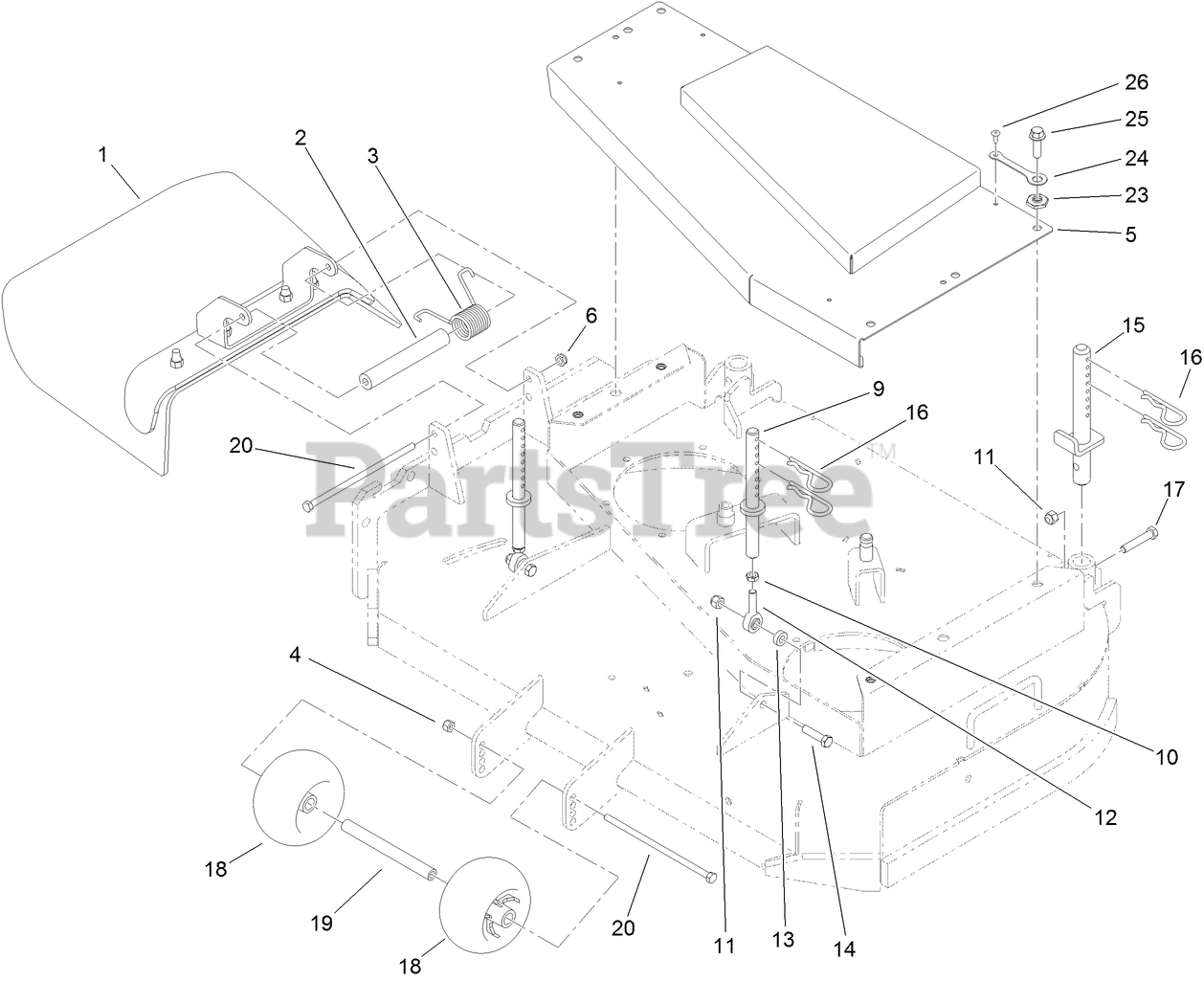

DECK DEFLECTOR, ROLLER AND COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 110-0790

DEFLECTOR ASM

$287.99

$

Usually ships in 3-6 days

0

2

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

3

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 119-6512-01

COVER-BELT, DECK

$279.99

$

Usually ships in 3-6 days

0

6

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

9

Toro 108-2674

FRONT PIN ASM

$98.99

$

Usually ships in 3-6 days

0

10

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

12

Toro 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

0

13

Toro 104-1156

SPACER

$7.49

$

In Stock, only 2 left!

0

14

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 110-2086

REAR PIN ASM

$77.99

$

Usually ships in 3-6 days

0

16

Toro 3290-256

PIN-HAIR

$8.49

$

In Stock, Qty 9

0

17

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

19

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

20

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

23

Toro 117-8347

NUT-SHOULDER

$

$

Currently unavailable

24

Toro 117-8339

LANYARD-3 INCH

$5.49

$

Usually ships in 3-6 days

0

25

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 18

0

26

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0
