30071 - Toro 91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp (SN: 311000001 - 311999999) (2011) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp

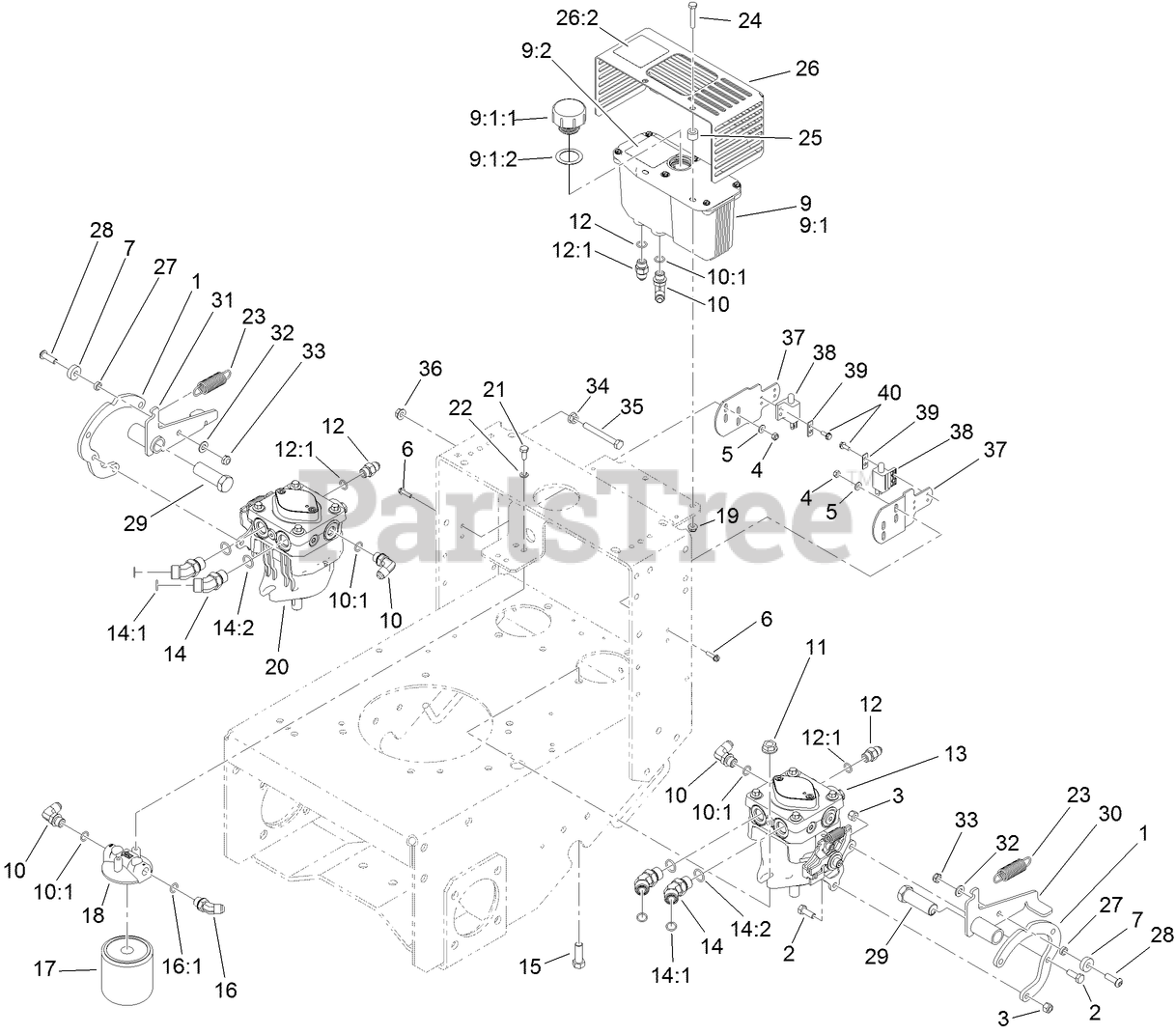

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 112-9722

BRACKET-ADAPTER, PUMP

$36.99

$

Usually ships in 3-6 days

0

2

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

7

Toro 251-259

BEARING-BALL

$16.99

$

In Stock, only 4 left!

0

9

Toro 107-8433

HYD RESERVOIR ASM

$384.99

$

Usually ships in 3-6 days

0

9:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

9:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$32.99

$

In Stock, Qty 20+

0

9:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

9:2

Toro 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

10

Toro 353-374

FITTING-ELBOW, 90 DEG
(Superseded to 103-1802)

$23.99

$

In Stock, only 2 left!

0

10:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

11

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

12

Toro 353-384

FITTING-STRAIGHT

$7.49

$

Usually ships in 3-6 days

0

12:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

13

Toro 115-4480

HYD PUMP ASM

$1643.99

$

Usually ships in 3-6 days

0

14

Toro 340-101

FITTING-HYD, 45 DEG

$37.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

14:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

15

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

16

Toro 353-212

FITTING-ELBOW, 45 DEG

$26.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

17

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 20+

0

17

Toro 1-633752

FILTER-OIL, HYD (WINTER)

$34.99

$

In Stock, only 3 left!

0

18

Toro 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

19

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 115-4481

HYD PUMP ASM

$1643.99

$

Usually ships in 3-6 days

0

21

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 105-1210

SPRING-EXTENSION

$21.99

$

Usually ships in 3-6 days

0

24

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

25

Toro 105-3619

Spacer

$17.99

$

Usually ships in 3-6 days

0

26

Toro 112-7060

SHIELD ASM

$253.99

$

Usually ships in 3-6 days

0

26:2

Toro 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

27

Toro 82-4240

SPACER-BEARING

$6.99

$

Usually ships in 3-6 days

0

28

Toro 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0

29

Toro 112-9724

PIN-ADJUSTMENT, NEUTRAL

$82.99

$

Usually ships in 3-6 days

0

30

Toro 112-9725

LH DETENT ARM ASM

$78.99

$

Usually ships in 3-6 days

0

31

Toro 112-9726

RH DETENT ARM ASM

$78.99

$

Usually ships in 3-6 days

0

32

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

33

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

34

Toro 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0

35

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

36

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

37

Toro 112-9723-01

BRACKET-NEUTRAL

$69.99

$

Usually ships in 3-6 days

0

38

Toro 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 16

0

39

Toro 82-4570

PLATE-SWITCH

$14.99

$

Usually ships in 3-6 days

0

40

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0
