30071 - Toro 91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp (SN: 311000001 - 311999999) (2011) ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp

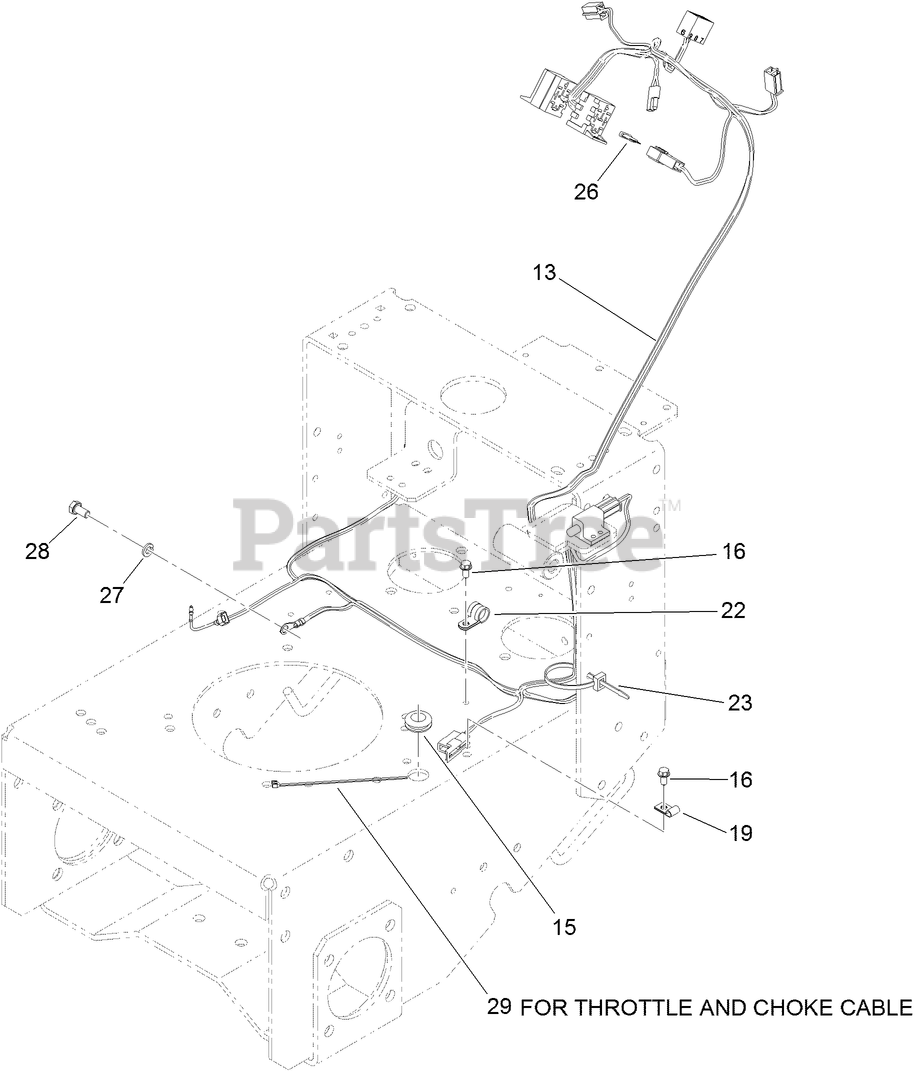

ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

  • Title
13

Toro 114-3420

HARNESS-WIRE

$485.99

$

Usually ships in 3-6 days

0

15

Toro 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

16

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

19

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

22

Toro 2412-134

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

23

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

26

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

27

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

28

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

29

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
