30070 - Toro 91cm Walk-Behind Mower, T-Bar, Gear Drive, 16hp (SN: 312000001 - 312999999) (2012) CONTROL PANEL ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Gear Drive, 16hp

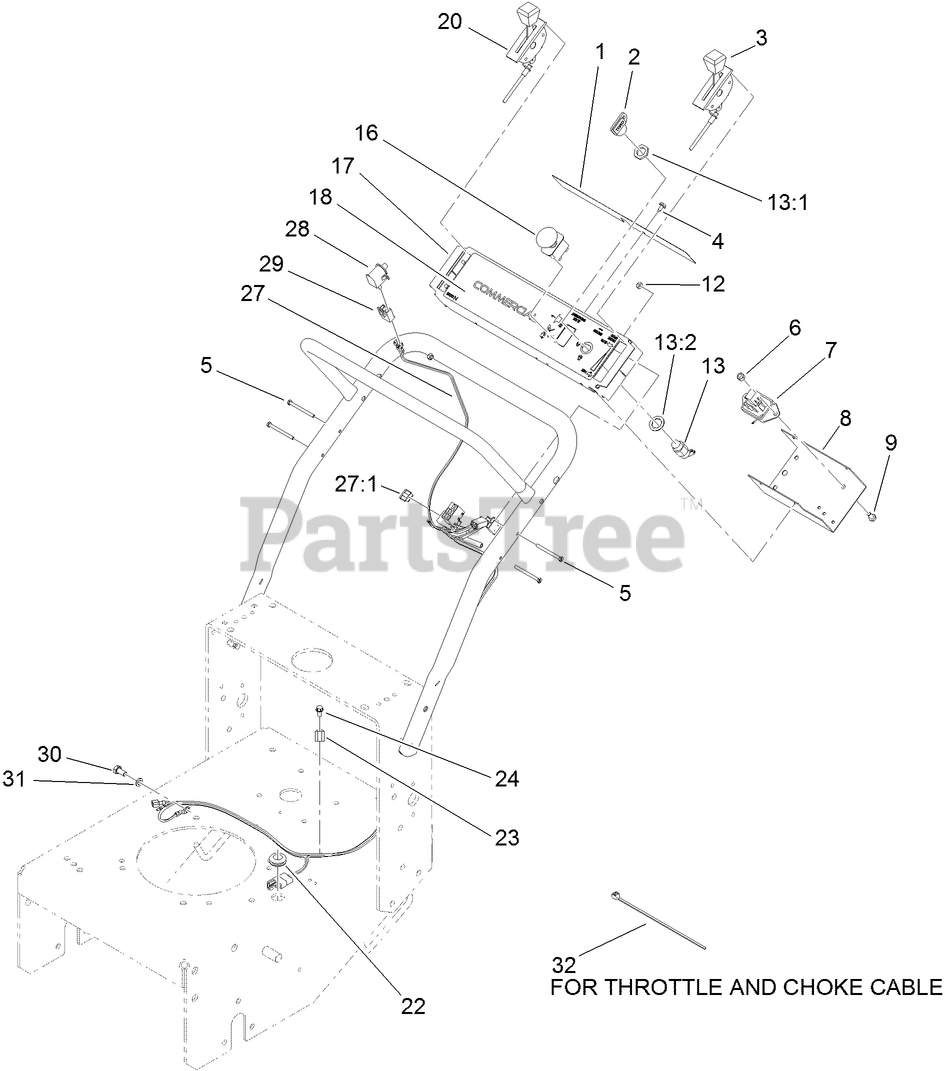

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 106-5519

DECAL-DANGER
(Superseded to 140-1877)

$21.99

$

Usually ships in 3-6 days

0

2

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 13

0

3

Toro 119-6539

CABLE-THROTTLE

$83.99

$

In Stock, only 1 left!

0

4

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 32105-14

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

7

Toro 104-8141

MODULE-DELAY

$68.99

$

In Stock, Qty 8

0

8

Toro 93-1187-03

PANEL-BOTTOM

$49.99

$

Usually ships in 3-6 days

0

9

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

12

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

13:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

13:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

16

Toro 104-8140

SWITCH-PTO

$79.99

$

Usually ships in 3-6 days

0

17

Toro 110-4982-03

PANEL-CONTROL

$123.99

$

Usually ships in 3-6 days

0

18

Toro 110-4972

DECAL-PANEL, CONTROL

$82.99

$

Usually ships in 3-6 days

0

20

Toro 110-4995

CABLE-CHOKE

$88.99

$

Usually ships in 3-6 days

0

22

Toro 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

23

Toro 2412-134

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

24

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

27

Toro 119-6508

HARNESS-WIRE

$270.99

$

Usually ships in 3-6 days

0

27:1

Toro 114241

FUSE-BLADE, 7.5 AMP

$11.99

$

Usually ships in 3-6 days

0

28

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

29

Toro 218-595

CONNECTOR-BODY

$

$

Not available

30

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

31

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
