30070 - Toro 91cm Walk-Behind Mower, T-Bar, Gear Drive, 16hp (SN: 311000001 - 311999999) (2011) HANDLE ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Gear Drive, 16hp

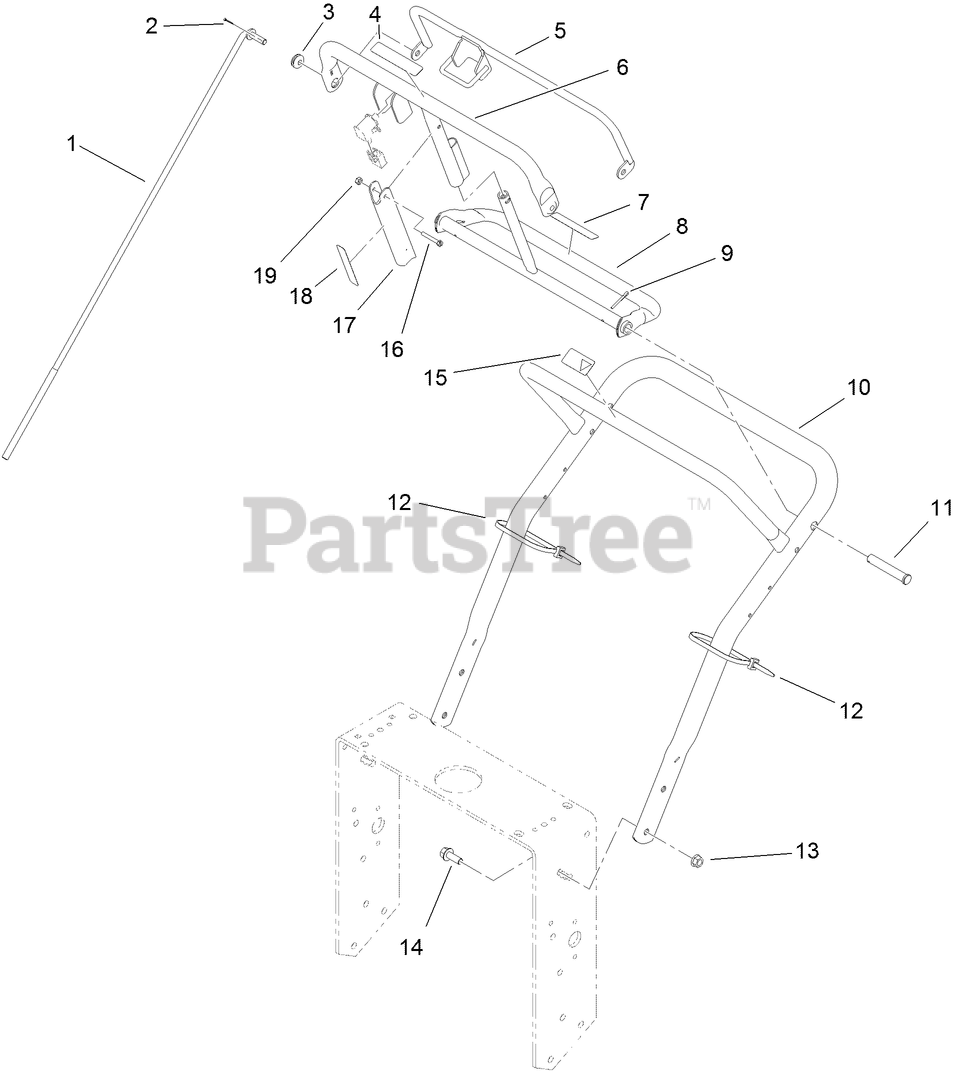

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-4677

ROD-CONTROL

$68.99

$

Usually ships in 3-6 days

0

2

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

3

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0

4

Toro 93-7298

DECAL-BAR, CONTROL

$38.99

$

In Stock, only 1 left!

0

5

Toro 82-7680-03

BAIL

$152.99

$

Usually ships in 3-6 days

0

6

Toro 82-7690-03

BAR-CONTROL

$281.99

$

Usually ships in 3-6 days

0

7

Toro 93-7299

DECAL-REVERSE

$33.99

$

Usually ships in 3-6 days

0

8

Toro 106-5477-03

PIVOT-CONTROL

$202.99

$

Usually ships in 3-6 days

0

9

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

10

Toro 105-3158-01

Upper Handle ASM
(Superseded to 105-3158-03)

$259.99

$

Usually ships in 3-6 days

0

11

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

12

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

13

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

14

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

15

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

16

Toro 32105-1

SCREW-SHH

$3.49

$

In Stock, Qty 7

0

17

Toro 51-4850-03

LEVER-BRAKE, PARKING

$38.99

$

In Stock, only 1 left!

0

18

Toro 93-7442

DECAL-LEVER, PARKING

$23.99

$

Usually ships in 3-6 days

0

19

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
