30069 - Toro Walk-Behind Mower, Pistol-Grip, Hydro Drive, 18hp (SN: 311000001 - 311999999) (2011) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

Walk-Behind Mower, Pistol-Grip, Hydro Drive, 18hp

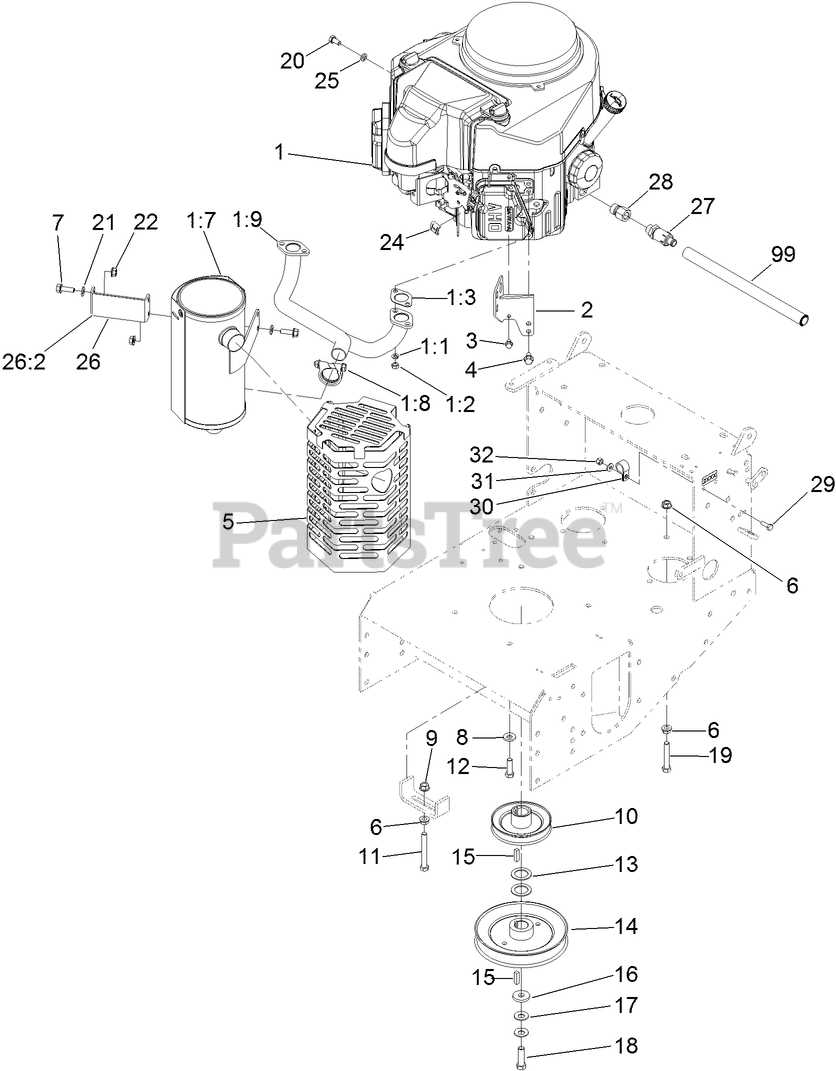

ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FS541V-BS10

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FS541V-BS10

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1:1

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

1:2

Toro 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

1:3

Toro 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

1:7

Toro 119-7800

MUFFLER-ENGINE

$455.99

$

Usually ships in 3-6 days

0

1:8

Toro 119-7801

CLAMP-MUFFLER

$20.99

$

Usually ships in 3-6 days

0

1:9

Toro 119-7802

MANIFOLD-EXHAUST

$116.99

$

Usually ships in 3-6 days

0

2

Toro 117-8561-03

BRACKET-MUFFLER

$56.99

$

Usually ships in 3-6 days

0

3

Toro 33103-012

SCREW-HHF

$5.49

$

In Stock, only 2 left!

0

4

Toro 33104-016

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

5

Toro 120-3238

MUFFLER SHIELD ASM

$541.99

$

Usually ships in 3-6 days

0

6

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

7

Toro 33104-025

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

8

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

9

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

10

Toro 1-653035

PULLEY

$68.99

$

In Stock, only 1 left!

0

11

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

12

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Toro 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

14

Toro 110-4891

PULLEY

$179.99

$

Usually ships in 3-6 days

0

15

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

16

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

17

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

18

Toro 116-3702

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

19

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

20

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

21

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

22

Toro 117-1350

NUT-HF, LOCK

$1.49

$

In Stock, only 3 left!

0

24

Toro 81-1690

CLAMP-CABLE

$2.99

$

Usually ships in 3-6 days

0

25

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 120-3245

MUFFLER BRACKET ASM

$71.99

$

Usually ships in 3-6 days

0

26:2

Toro 120-3244

FOIL-SHIELD, BRACKET

$11.99

$

Usually ships in 3-6 days

0

27

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 2 left!

0

28

Toro 103-1966

Adapter

$18.99

$

In Stock, only 3 left!

0

29

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

31

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

99

Toro 103-1964

HOSE-DRAIN, OIL

Note: Optional Equipment

$11.99

$

In Stock, only 2 left!

0
