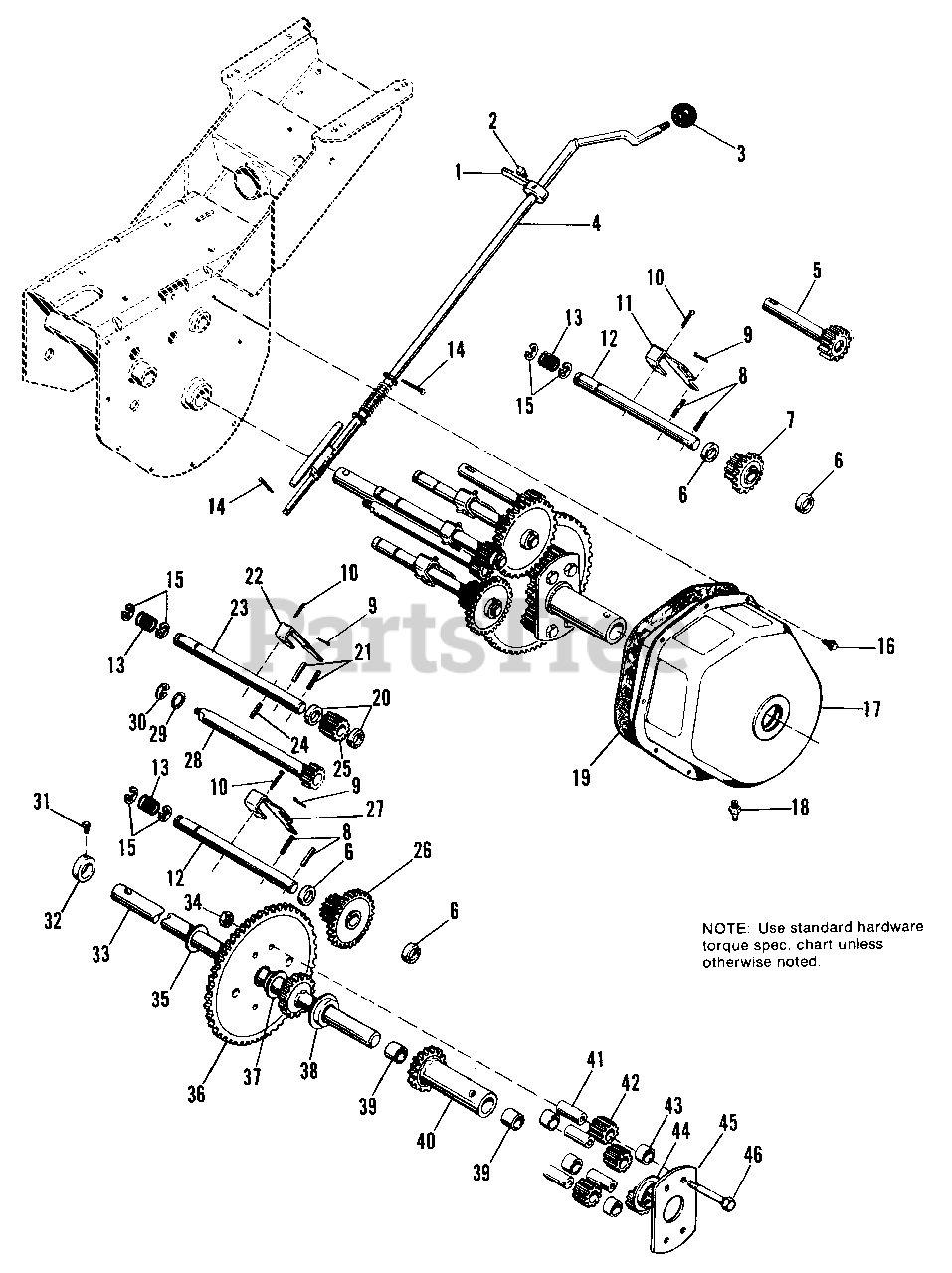

3005-2 (1690243) - Simplicity Wonderboy Rear-Engine Riding Mower Transmission Group Parts Diagram

Wonderboy Rear-Engine Riding Mower

Transmission Group Parts Diagram

  • Title

1

Simplicity 176419

LEVER ASSY.

$

$

Not available

2

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 10

0

3

Simplicity 1729255SM

BALL, Knob

$12.99

$

Usually ships in 2-12 days

0

4

Simplicity 176438

ROD ASSY., Shift

$

$

Not available

5

Simplicity 158548

SHAFT & GEAR ASSY.

$

$

Not available

6

Simplicity 158561

COLLAR, Thrust

$

$

Not available

7

Simplicity 158542

GEAR & BEARING ASSY.

$

$

Not available

8

Simplicity 2818111

PIN, Spring, 1/8 x 1

$

$

Not available

9

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

10

Simplicity 2819314

PIN, Cotter, 3/16 x 1-1/4

$

$

Not available

11

Simplicity 158535

LINK, Shift, Hi

$

$

Not available

12

Simplicity 2158541

SHAFT, Intermediate

$

$

Not available

13

Simplicity 158578

SPRING

$

$

Not available

14

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

15

Simplicity 2827793SM

RING, Retaining
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

16

Simplicity 2827428

SCREW, Hex, Washer Hd., Taptite, 1/4-20 x 3/8

$

$

Not available

17

Simplicity 158521

CASE ASSY., Gear

$

$

Not available

18

Simplicity 928724

FITTING, Grease

$

$

Not available

19

Simplicity 158524

GASKET, Gear Case

$

$

Not available

20

Simplicity 158562

COLLAR, Thrust

$

$

Not available

21

Simplicity 2816168SM

PIN, Spring, 1/4 x 3/4

$4.49

$

In Stock, Qty 15

0

22

Simplicity 158564

LINK, Shift, Reverse

$

$

Not available

23

Simplicity 158534

SHAFT, Reverse

$

$

Not available

24

Simplicity 2821450

PIN, Spring, 5/32 x 1

$

$

Not available

25

Simplicity 158557

PINION, Reverse

$

$

Not available

26

Simplicity 158570

GEAR & BEARING ASSY.

$

$

Not available

27

Simplicity 158563

LINK, Shift, Lo

$

$

Not available

28

Simplicity 106944

SHAFT & GEAR ASSY.

$

$

Not available

29

Simplicity 2153079

WASHER

$

$

Not available

30

Simplicity 2153124SM

RING, Retaining

$5.99

$

In Stock, Qty 20+

0

31

Simplicity 2828709

SETSCREW, 5/16-18 x 3/8

$

$

Not available

32

Simplicity 158357

COLLAR, Set

$

$

Not available

33

Simplicity 158352

AXLE ASSY., L.H.

$

$

Not available

34

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

35

Simplicity 2118252SM

WASHER, Special

$4.49

$

In Stock, Qty 10

0

36

Simplicity 158530

GEAR, Drive

$

$

Not available

37

Simplicity 158356

BUSHING

$

$

Not available

38

Simplicity 158358

CUP, Thrust

$

$

Not available

39

Simplicity 158363

BUSHING

$

$

Not available

40

Simplicity 158359

AXLE & BUSHING ASSY.

$

$

Not available

41

Simplicity 2121083SM

SPACER

$13.99

$

In Stock, only 1 left!

0

42

Simplicity 2158579SM

PINION, Diff.

$

$

Not available

43

Simplicity 2121084SM

SPACER. Diff.

$12.99

$

Usually ships in 2-12 days

0

44

Simplicity 158365

BUSHING

$

$

Not available

45

Simplicity 158364

PLATE, Diff

$

$

Not available

46

Simplicity 2821972

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2

$

$

Not available
