3005-2 (1690243) - Simplicity Wonderboy Rear-Engine Riding Mower Engine & Seat Group Parts Diagram

Wonderboy Rear-Engine Riding Mower

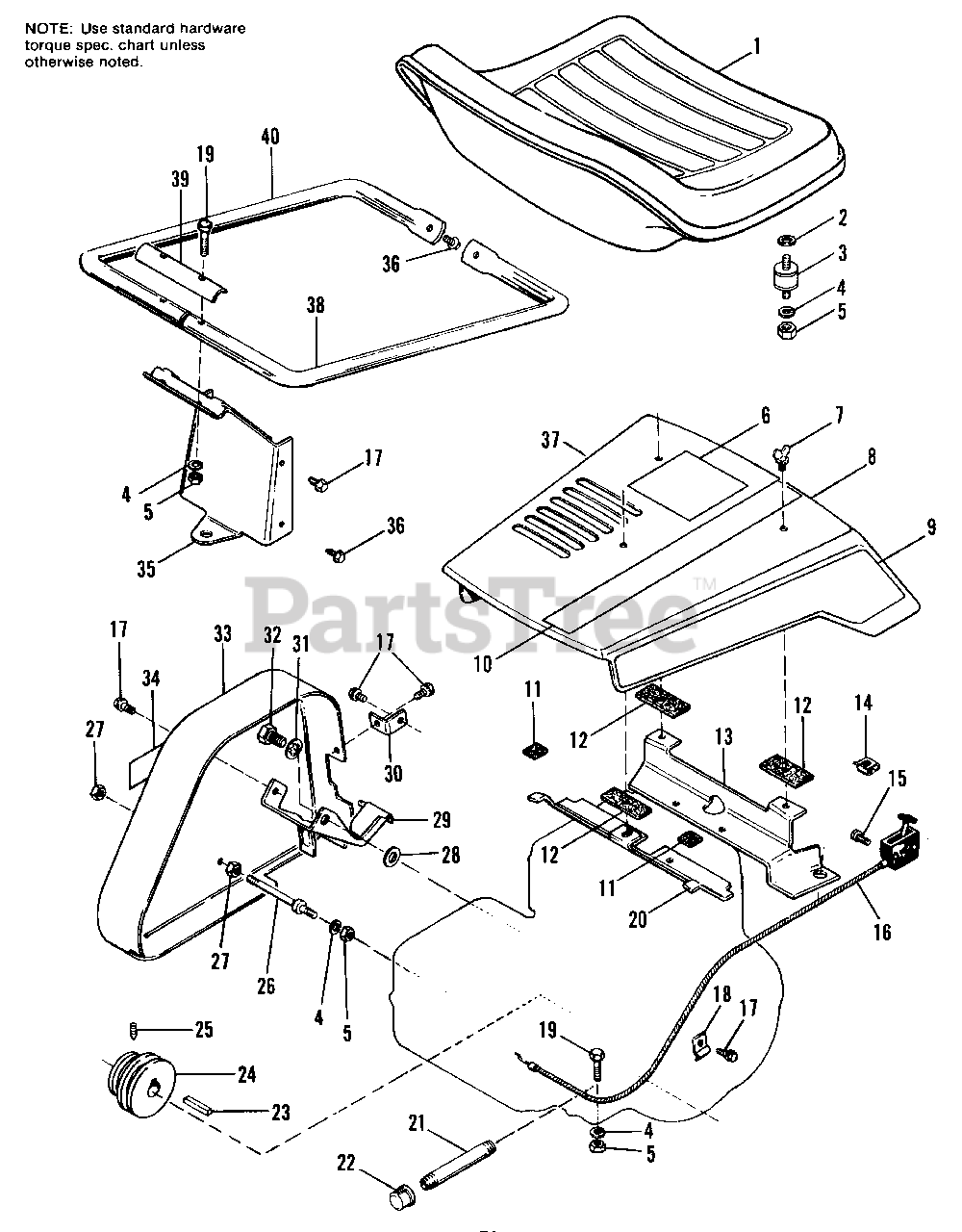

Engine & Seat Group Parts Diagram

  • Title
1

Simplicity 1651789

SEAT ASSY.

$

$

Not available

2

Simplicity 2819381

WASHER, Plain, 5/16

$

$

Not available

3

Simplicity 2157094SM

CONNECTOR, Cushion

$

$

Not available

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1657293

DECAL, Safety

$

$

Not available

7

Simplicity 2828693

SCREW, Wing, 5/16-18 x 3/4

$

$

Not available

8

Simplicity 158515

HOOD ASSY.

$

$

Not available

9

Simplicity 1657105

DECAL, Hood, L.H.

$

$

Not available

10

Simplicity 1651769

DECAL, Stripe

$

$

Not available

11

Simplicity 157582

BUTTON, Bumper

$

$

Not available

12

Simplicity 121399

GASKET, Felt

$

$

Not available

13

Simplicity 174746

SUPPORT, Front Hood

$

$

Not available

14

Simplicity 2828701

NUT, Retainer, 5/16-18

$

$

Not available

15

Simplicity 2828732

SCREW, Hex, Washer Hd., #10-24 x 1

$

$

Not available

16

Simplicity 1608962

THROTTLE & CHOKE ASSY.

$

$

Not available

17

Simplicity 2824856

SCREW, Taptite, Hex, 5/16-18 x 1/2

$

$

Not available

$

$

Not available

19

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

20

Simplicity 158449

SUPPORT, Rear Hood

$

$

Not available

21

Simplicity 158610

NIPPLE, Pipe

$

$

Not available

22

Simplicity 901751

CAP, Pipe

$

$

Not available

23

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

24

$

$

Not available

25

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

$

$

Not available

27

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

28

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

29

Simplicity 158527

STOP, Belt

$

$

Not available

30

Simplicity 1609444

BRACKET, Pulley Guard

$

$

Not available

31

Simplicity 2809589

LOCKWASHER, Int., 1/2

$

$

Not available

32

Simplicity 2821370

CAPSCREW, Hex Hd., 1/2-20 x 1

$

$

Not available

33

Simplicity 1609445

GUARD, Pulley

$

$

Not available

34

Simplicity 1657108

DECAL, 3005

$

$

Not available

35

Simplicity 1608938

PLATE, Hitch, Rear

$

$

Not available

36

Simplicity 2825003

SCREW, Tapping, 1/4-20 x 1/2

$

$

Not available

37

Simplicity 1657104

DECAL, Hood, R.H.

$

$

Not available

38

Simplicity 174629

HANDLE, Rear, R.H.

$

$

Not available

39

Simplicity 158584

BRACKET, Support Handle

$

$

Not available

40

Simplicity 158583

HANDLE, Rear, L.H.

$

$

Not available
