30042SR - Troy-Bilt 42" Side-Discharge Mower Deck (SN: 0100101 - 0199999) 42" S.D. MOWER ATTACHMENT Parts Diagram

42" Side-Discharge Mower Deck

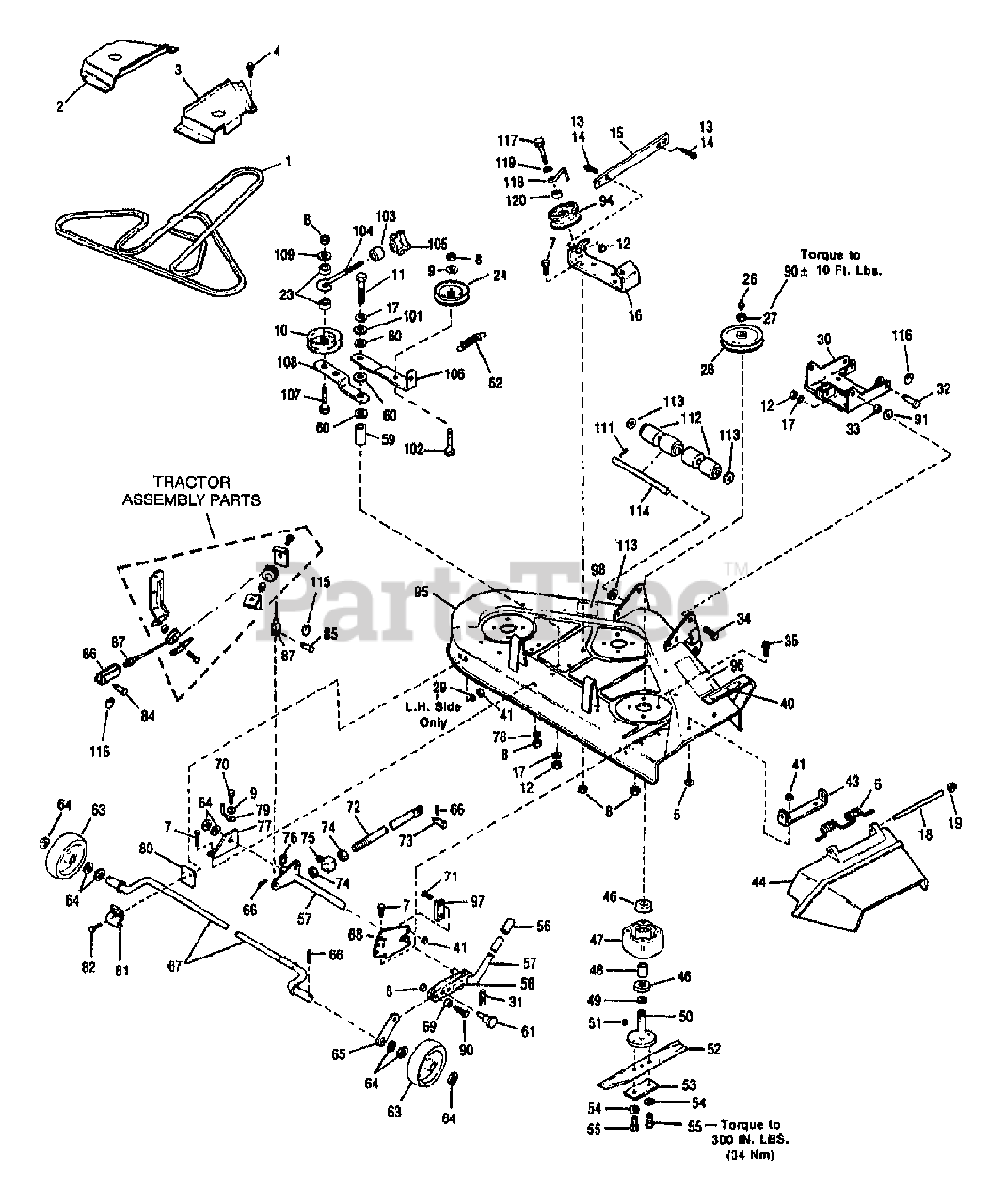

42" S.D. MOWER ATTACHMENT Parts Diagram

  • Title

1

Troy-Bilt 1755537

BELT
(Superseded to 1764007)

$91.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1755441001

COVER-BELT LH

$

$

Currently unavailable

3

Troy-Bilt 1755440001

COVER-BELT RH

$

$

Currently unavailable

4

MTD 1724492

SCR 1/4-20X.5 FL SELF TAP

$

$

Not available

5

Troy-Bilt 1736098

BOLT-CARR 5/16-18X.63 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 1756596

SPRING-TORSION

$

$

Not available

7

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

9

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

10

Troy-Bilt 1749911

PULLEY

$

$

Not available

11

Troy-Bilt 1100067

SCR-HH 1/2-13X2.0 G5 ZP

$

$

Not available

12

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 8

0

13

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

15

Troy-Bilt 1744382001

SUPT-BAR

$

$

Currently unavailable

16

Troy-Bilt 1743722001

BRKT-IDLER SUPPORT

$

$

Currently unavailable

17

Troy-Bilt 1100257

WASHER-1/2 FLAT

$

$

Not available

18

Troy-Bilt 1756760

ROD

$

$

Not available

19

Troy-Bilt 1724791

NUT-PUSH 3/8 ZP
(Superseded to 926-0100)

$

$

Not available

23

Troy-Bilt 1743997

SPACER

$

$

Currently unavailable

24

Troy-Bilt 1749764

PULLEY

$

$

Not available

26

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

27

Troy-Bilt 1185093

NUT-H/LK
(Superseded to 1762168)

$17.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 1752310

SHEAVE

$55.99

$

Usually ships in 3-6 days

0

29

MTD 1185261

WASHER-LOCK

$

$

Not available

30

Troy-Bilt 1743720001

ASSM-MOWER SUPT

$

$

Currently unavailable

31

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

32

Troy-Bilt 1752308

PIN-CLEVIS .62X2.50 ZP
(Superseded to 711-1626)

$43.99

$

Usually ships in 3-6 days

0

33

MTD 1730681

SPACER-TUBULAR

$

$

Not available

34

Troy-Bilt 1100055

SCR-HH 1/2-13X1.25 G5 ZP
(Superseded to 710-3032)

$6.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 1724491

SCR-HFLK 5/16-18X.75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

40

MTD 1744491

DECAL-CUTTING LINE

$

$

Not available

41

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 1728005001

BRKT-HINGE

$

$

Not available

44

MTD 1755750

DEFLECTOR-DISCHARGE

$

$

Not available

46

Troy-Bilt 1185828

BEARING-BALL

$46.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 1724029

HOUSING-SPINDLE

$176.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 1746869

SPACER

$19.99

$

In Stock, only 2 left!

0

49

MTD 1740627

WASHER-SPECIAL

$

$

Not available

50

Troy-Bilt 1742606

SHAFT
(Superseded to 1742625)

$333.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

52

Troy-Bilt 1736560

BLADE-42" GRS DECK

$47.99

$

Usually ships in 3-6 days

0

53

MTD 1724051

PLATE

$

$

Not available

54

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 1100009

SCR-HH 3/8-24X1.0 G5 ZP
(Superseded to 710-1039)

$4.49

$

In Stock, only 3 left!

0

56

Troy-Bilt 1756875

GRIP-HANDLE BLACK

$

$

Currently unavailable

57

Troy-Bilt 1743735001

ASSM-WHEEL HGT ADJ

$

$

Currently unavailable

58

Troy-Bilt 1756883

DECAL-CUTTING HEIGHT

$

$

Currently unavailable

59

Troy-Bilt 1749978

BEARING

$

$

Not available

60

MTD 1749716

WASHER-THRUST

$

$

Not available

61

Troy-Bilt 1751144

PIN

$

$

Currently unavailable

62

Troy-Bilt 1701322

SPRING-IDLER

$

$

Currently unavailable

63

Troy-Bilt 1743891

GAUGE-WHEEL
(Superseded to 734-04005)

$

$

Not available

64

Troy-Bilt 1185830

WASHER-1.38 X.765X .06 ZP
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

65

Troy-Bilt 1744026001

LINK-WHEEL SUPT

$

$

Currently unavailable

66

MTD 1100351

PIN-COTTER .120X1.25 ZP

$

$

Not available

67

MTD 1744025

SUPT-WHEEL SHAFT

$

$

Not available

68

Troy-Bilt 1743724001

QUANDRANT

$

$

Currently unavailable

69

Troy-Bilt 1747322

SPACER-.75X.40X.51 P/M

$

$

Currently unavailable

70

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0

71

MTD 1103195

SCR-HH 5/16-18X.63 G5

$

$

Not available

72

Troy-Bilt 1743718

ROD-ADJUSTER

$

$

Currently unavailable

73

MTD 1722409

PIN-CLEVIS .5X1.75 ZP

$

$

Not available

74

Troy-Bilt 1186235

NUT-HEX
(Superseded to 912-3015)

$4.99

$

In Stock, only 2 left!

0

75

Troy-Bilt 1743728

BLOCK-PIVOT

$

$

Currently unavailable

76

Troy-Bilt 1185649

RING-RETAINING EXT .694 ID

$

$

Not available

77

Troy-Bilt 1743747001

BRKT-SUPPORT

$

$

Currently unavailable

78

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179

$6.49

$

Usually ships in 3-6 days

0

79

Troy-Bilt 1744391

GUIDE-BELT

$

$

Currently unavailable

80

Troy-Bilt 1744023

PLATE-DOUBLER

$

$

Currently unavailable

81

Troy-Bilt 1744024001

SUPPORT-SHAFT

$

$

Currently unavailable

82

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, only 4 left!

0

84

MTD 1724632

PIN-CLEVIS .5X1.437 ZP

$

$

Not available

85

Troy-Bilt 1112587

PIN-CLEVIS .375 X .937 ZP

$4.99

$

Usually ships in 3-6 days

0

86

MTD 1747165

YOKE
(Superseded to 1916253001)

$

$

Not available

87

Troy-Bilt 1747321

ASSM-CABLE(MOWER DECK)
(Superseded to 1747321P)

$

$

Not available

90

Troy-Bilt 1100047

SCR-HH 3/8-16X1.5 G5 ZP
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 6

0

91

MTD 1724929

WASHER

$

$

Not available

94

Troy-Bilt 1749910

PULLEY

$90.99

$

In Stock, only 2 left!

0

95

Troy-Bilt 1757478

ASSM-BASE

$

$

Currently unavailable

96

Troy-Bilt 1750713

DECAL-OPEI CAUTION
(Superseded to 1739687)

$7.49

$

Usually ships in 3-6 days

0

97

MTD 1743726

RETAINER-SHAFT

$

$

Not available

98

MTD 1753908

DECAL-BELT ARRANGEMENT

$

$

Not available

101

Troy-Bilt 1702258

WASHER-WAVE .99X.76X.022

$

$

Currently unavailable

102

Troy-Bilt 1100078

SCR-HH 5/16-18X.875 G5 ZP
(Superseded to 710-3038)

$4.99

$

In Stock, only 3 left!

0

103

Troy-Bilt 1749718

WASHER-1.0X.39X.4 ZP

$

$

Currently unavailable

104

Troy-Bilt 1749719

BOLT-EYE

$

$

Currently unavailable

105

Troy-Bilt 1749720

KNOB

$

$

Currently unavailable

106

Troy-Bilt 1749713001

ARM-IDLER

$

$

Currently unavailable

107

Troy-Bilt 1100049

SCR-HH 3/8-16X2.25 G5 ZP
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 20+

0

108

Troy-Bilt 1749714001

ARM-IDLER

$

$

Currently unavailable

109

MTD 1708755

WASHER-.875X.390X.134

$

$

Not available

111

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

112

MTD 1754610

ROLLER

$

$

Not available

113

Troy-Bilt 1107386

WASHER-1.305X.649X.098 ZP
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

114

MTD 1751705

ROLLER

$

$

Not available

115

Troy-Bilt 1751908

RING-CIRCLE COTTER

$5.99

$

Usually ships in 3-6 days

0

116

Troy-Bilt 1751909

RING-COTTER
(Superseded to 714-3020)

$4.49

$

Usually ships in 3-6 days

0

117

Troy-Bilt 1111621

SCR-HH 1/2-13X3.25 G5 ZP
(Superseded to 710-1806)

$10.99

$

In Stock, only 4 left!

0

118

MTD 1753544

GUIDE-BELT

$

$

Not available

119

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

120

MTD 1755587

SPACER

$

$

Not available

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0
