300421-0117-XX - Briggs & Stratton Horizontal Engine Cyl, Piston, Muffler, CrnkCse Parts Diagram

Horizontal Engine

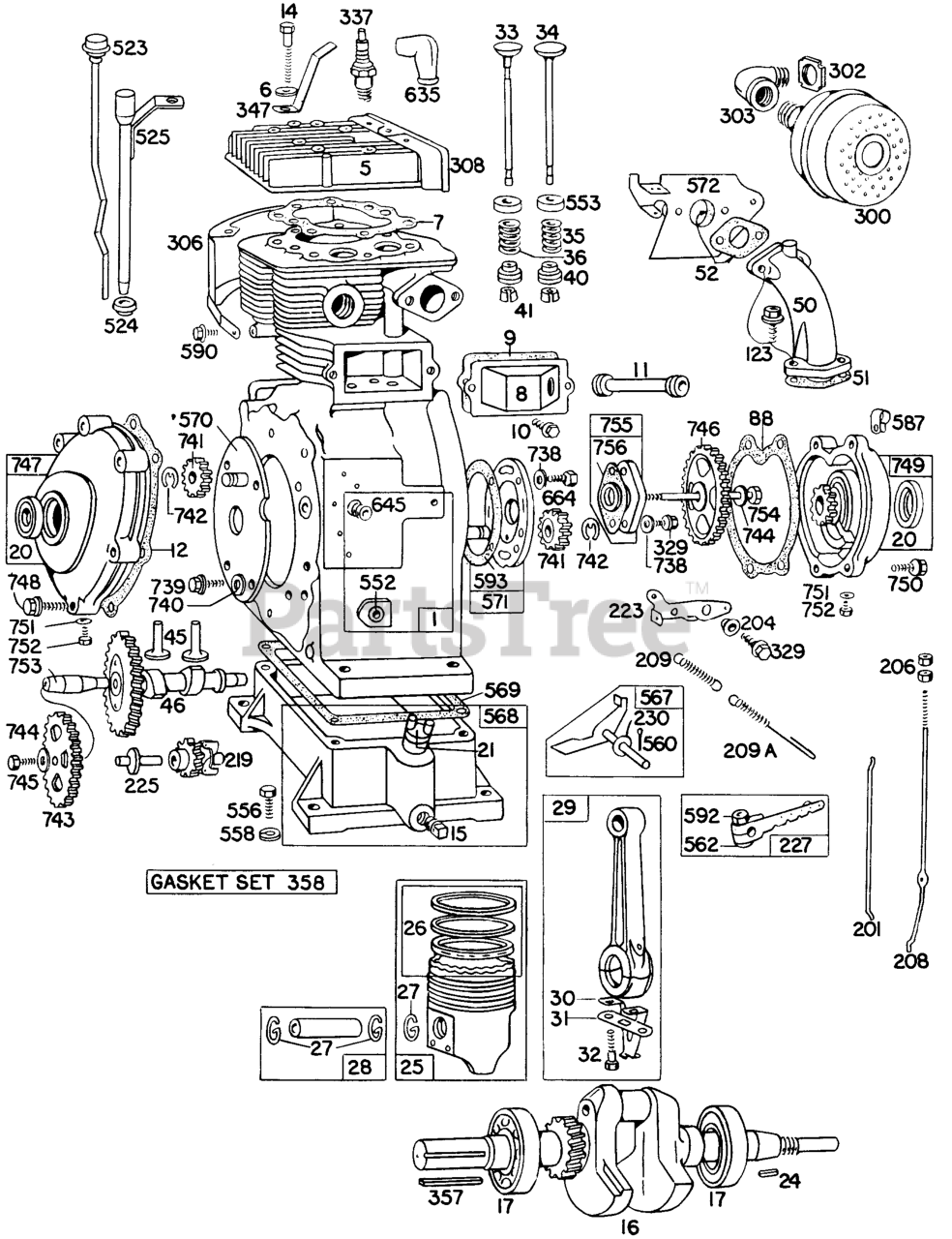

Cyl, Piston, Muffler, CrnkCse Parts Diagram

  • Title

1

Briggs & Stratton 391096

Cylinder Assembly
(Superseded to 392096)

$590.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 211889

Head-Cylinder

$

$

Not available

6

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 270400

Gasket-Cylinder Head
(Superseded to 692231)

Note: Included in Gasket Set-Part No. 299719

$11.99

$

In Stock, Qty 6

0

8

Briggs & Stratton 299328

Breather
(Superseded to 495738)

$53.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 299719

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 68818

Tube-Breather
(Superseded to 691512)

$

$

Not available

12

Briggs & Stratton 270448

Gasket-Cover (P.t.o Side)
(Superseded to 692914)

Note: Included in Gasket Set-Part No. 299719

$14.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

14

Briggs & Stratton 92674

Screw, Hex Head Cap (2-7/16" Long)
(Superseded to 691441)

$7.49

$

In Stock, Qty 5

0

14

Briggs & Stratton 93211

Screw, Machine Hex (5/16-18 X 2-21/32")
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

16

Briggs & Stratton 261218

Crankshaft
(Superseded to 691797)

$564.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 291667

Bearing, Ball
(Superseded to 691938)

$

$

Not available

20

Briggs & Stratton 299609

Seal-Oil
(Superseded to 691948)

$12.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66768

Plug, Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

24

Briggs & Stratton 61760

Key, Flywheel (For Breaker Ignition System)
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 299688

Piston Assy-Std

$179.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 299716

Piston Assy. .010" O.S.

$

$

Not available

25

Briggs & Stratton 299717

Piston Assy. .020" O.S.

$

$

Not available

25

Briggs & Stratton 299718

Piston Assy. .030" O.S.

$182.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 299690

Ring Set-Piston Standard

Note: Consists of: 211602 Ring-Piston, Comp., Top, Standard 211603 Ring-Piston, Comp., Center, Standard 299689 Ring-Piston, Oil, Standard (w/expander)

$103.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 299710

Ring Set-Piston .010" O.S.

Note: Consists of: 211694 Ring-Piston, Comp., Top, .010" O.S. 211695 Ring-Piston, Comp., Center, .010" O.S. 299713 Ring-Piston, Oil, .010" O.S. (w/expander)

$70.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 299711

Ring Set-Piston .020" O.S.

Note: Consists of: 211698 Ring-Piston, Comp., Top, .020" O.S. 211699 Ring-Piston, Comp., Center, .020" O.S. 299714 Ring-Piston, Oil, .020" O.S. (w/expander)

$73.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 299712

Ring Set-Piston .030" O.S.

Note: Consists of: 211702 Ring-Piston, Comp., Top, .030" O.S. 211703 Ring-Piston, Comp., Center, .030" O.S. 299715 Ring-Piston, Oil, .030" O.S. (w/expander)

$65.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 299745

For Chrome Piston Ring Set Standard Size
(Superseded to 299690)

$103.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 260924

Lock-Piston Pin
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

Pin-Piston Std (Std.)

$17.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 299632

Rod-Connecting

Note: For Connecting Rod with .020" undersize Crankpin Bore-order No. 390306

$128.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 221777

Dipper-Connecting Rod
(Superseded to 691726)

$13.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 221776

Lock-Rod Screw
(Superseded to 690396)

$5.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 230907

Screw-Connecting Rod
(Superseded to 692345)

$8.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 261207

Valve-Exhaust
(Superseded to 394436)

$65.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 230861

Valve-Intake

Note: Used Before Code Date 7004171

$

$

Not available

34

Briggs & Stratton 261206

Valve-Intake
(Superseded to 394435)

Note: Used After Code Date 7004161

$64.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 26828

Spring, Valve (Exhaust)
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

36

Briggs & Stratton 26828

Spring, Valve (Exhaust)
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 292260

Rotocoil Assy (Exhaust Valve)
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

41

Briggs & Stratton 68283

Collar-Valve Spring Retainer

$7.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 26670

Tappet-Valve
(Superseded to 691594)

$32.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 211794

Gear-Cam
(Superseded to 692855)

$288.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 211589

Manifold-Intake
(Superseded to 691152)

$78.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 27381

Gasket, Intake Elbo
(Superseded to 27381S)

Note: Included in Gasket Set-Part No. 299719

$4.99

$

In Stock, Qty 8

0

88

Briggs & Stratton 270449

Gasket-Gear Case Cover
(Superseded to 691310)

$15.99

$

Usually ships in 2-12 days

0

123

Briggs & Stratton 93357

Screw-Sem, Phillips Hex. Hd.
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260923

Link-Throttle
(Superseded to 691791)

$9.49

$

In Stock, only 1 left!

0

204

Briggs & Stratton 23849

Collar-Bell Crank
(Superseded to 690267)

$6.99

$

Usually ships in 2-12 days

0

206

Briggs & Stratton 21772

Nut, Square (Governor Adjusting)
(Superseded to 691584)

$9.99

$

In Stock, only 1 left!

0

208

Briggs & Stratton 230040

Rod-Governor Control
(Superseded to 593696)

$25.99

$

In Stock, only 2 left!

0

209A

Briggs & Stratton 260816

Spring, Governor (2 1/2" Long)
(Superseded to 691790)

$10.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 26764

Spring-Governor
(Superseded to 691596)

$10.99

$

In Stock, only 4 left!

0

219

Briggs & Stratton 291192

Gear-Governor

$79.99

$

Usually ships in 2-12 days

0

223

Briggs & Stratton 22814

Lever-Governor Control
(Superseded to 690263)

$14.99

$

Usually ships in 2-12 days

0

225

Briggs & Stratton 291177

Shaft-Governor Gear
(Superseded to 291192)

$79.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 291365

Lever-Governor
(Superseded to 690607)

$8.49

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 22826

Washer-Spacer
(Superseded to 690264)

$4.49

$

Usually ships in 2-12 days

0

302

Briggs & Stratton 91310

Locknut-Muffler
(Superseded to 691808)

$7.99

$

In Stock, only 3 left!

0

303

Briggs & Stratton 91308

Elbow, Exhaust 90 D (1" Street)
(Superseded to 690281)

$31.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 299536

Shield-Cylinder

$15.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 221953

Cover-Cylinder Head

$13.99

$

Usually ships in 2-12 days

0

329

Briggs & Stratton 93294

Screw, Sem (5/8" Long)
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

329

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

Note: For Ignition Cable Terminal order No. 221798

$4.49

$

In Stock, Qty 20+

0

347

Briggs & Stratton 220197

Switch, Stop (For 1-1/2" High, 38 Mm. Spark Plugs)
(Superseded to 690578)

$

$

Not available

357

Briggs & Stratton 91540

Key, Pulley (1/4")
(Superseded to 691483)

$6.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 299719

Gasket Set

$86.99

$

In Stock, only 2 left!

0

523

Briggs & Stratton 299385

Cap And Dipstick-Oil Filler

$

$

Not available

524

Briggs & Stratton 68838

Seal-Oil Filler Tube To Sump
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 299381

Pipe-Oil Filler

$24.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 23837

Bushing-Governor Crank
(Superseded to 393666)

$9.49

$

Usually ships in 2-12 days

0

553

Briggs & Stratton 62222

Seat-Valve Spring
(Superseded to 690269)

$4.99

$

Usually ships in 2-12 days

0

556

Briggs & Stratton 90887

Screw, Hex Head Cap (3/8-16 X 1-1/4")
(Superseded to 691104)

$4.49

$

In Stock, only 2 left!

0

558

Briggs & Stratton 92268

Washer-Lock (3/8 X 1/8 X 3/32")

$4.49

$

Usually ships in 2-12 days

0

560

Briggs & Stratton 91984

Pin-Cotter 1/16 X 1/2" Long
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

567

Briggs & Stratton 291364

Crank-Governor

$35.99

$

Usually ships in 2-12 days

0

568

Briggs & Stratton 291404

Base-Engine

Note: (Engine Base Furnished by the Equipment Mfr)

$223.99

$

Usually ships in 2-12 days

0

569

Briggs & Stratton 27351

Gasket-Engine Base
(Superseded to 691569)

Note: Included in Gasket Set-Part No. 299719

$11.99

$

In Stock, Qty 5

0

570

Briggs & Stratton 299459

Support Assy.-Bearing (P.t.o. Side)

$49.99

$

Usually ships in 2-12 days

0

571

Briggs & Stratton 299705

Support-Bearing (Mag. Side)

$45.99

$

Usually ships in 2-12 days

0

572

Briggs & Stratton 291871

Guide-Front Air

$14.99

$

Usually ships in 2-12 days

0

587

Briggs & Stratton 220509

Clip-Wire
(Superseded to 690389)

$3.99

$

Usually ships in 2-12 days

0

590

Briggs & Stratton 93171

Screw-Slotted Hex.
(Superseded to 690294)

$3.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 90356

Nut, Hex Mach (10-24)
(Superseded to 690276)

$3.99

$

Usually ships in 2-12 days

0

593

Briggs & Stratton 270513

Gasket-Brg Sup (.015" Thick)

Note: Included in Gasket Set-Part No. 299719

$7.99

$

Usually ships in 2-12 days

0

593

Briggs & Stratton 270514

Gasket-Brg Sup (.010" Thick)

Note: Included in Gasket Set-Part No. 299719

$8.99

$

Usually ships in 2-12 days

0

593

Briggs & Stratton 270515

Gasket-Brg Sup (.005" Thick)

Note: Included in Gasket Set-Part No. 299719

$7.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

645

Briggs & Stratton 230775

Bushing-Plunger
(Superseded to 692880)

$13.99

$

Usually ships in 2-12 days

0

664

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

738

Briggs & Stratton 221944

Washer-Flat
(Superseded to 690402)

$4.49

$

Usually ships in 2-12 days

0

739

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

740

Briggs & Stratton 221990

Washer-Flat

$

$

Not available

741

Briggs & Stratton 299472

Gear Assembly-Idler
(Superseded to 691803)

$41.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 93525

Retainer-E Ring
(Superseded to 691080)

$4.49

$

Usually ships in 2-12 days

0

743

Briggs & Stratton 211605

Gear-Drive

$44.99

$

Usually ships in 2-12 days

0

744

Briggs & Stratton 93526

Washer, Belleville
(Superseded to 690301)

$5.99

$

Usually ships in 2-12 days

0

745

Briggs & Stratton 93562

Screw-Drive Gear Mounting

$

$

Not available

746

Briggs & Stratton 211631

Gear-Drive (Mag. Side)

$67.99

$

Usually ships in 2-12 days

0

747

Briggs & Stratton 299732

Cover Assembly-P.t.o. Side

$

$

Not available

748

Briggs & Stratton 93585

Screw, Sem Hex Head
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

749

Briggs & Stratton 299731

Cover Assembly-Mag. Side

$119.99

$

Usually ships in 2-12 days

0

750

Briggs & Stratton 93587

Screw, Sem Hex Head (1/4-20 X 1")
(Superseded to 691083)

$5.99

$

Usually ships in 2-12 days

0

751

Briggs & Stratton 22355

Washer-Seal
(Superseded to 690258)

$6.99

$

Usually ships in 2-12 days

0

752

Briggs & Stratton 93554

Screw-Plug
(Superseded to 690304)

$3.99

$

Usually ships in 2-12 days

0

753

Briggs & Stratton 230892

Shaft-Cam Gear

$26.99

$

Usually ships in 2-12 days

0

754

Briggs & Stratton 93528

Screw-Hex.
(Superseded to 691081)

$6.49

$

Usually ships in 2-12 days

0

755

Briggs & Stratton 299706

Bearing-Gear

$54.99

$

Usually ships in 2-12 days

0
