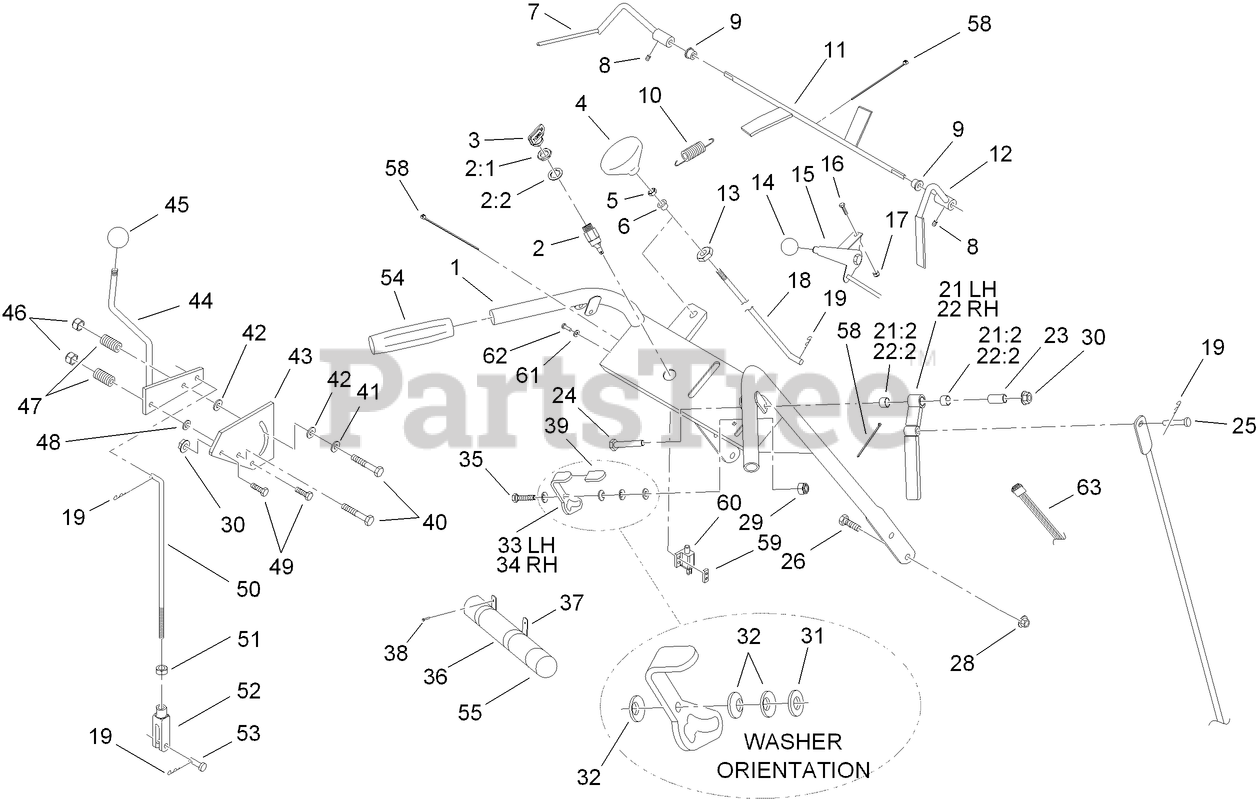

30033 - Toro Walk-Behind Mower, Pistol-Grip, Hydro Drive, 17hp (SN: 311000001 - 311999999) (2011) UPPER HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower, Pistol-Grip, Hydro Drive, 17hp

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 115-1040

HYDRO HANDLE ASM

$

$

Not available

2

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

2:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

2:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

3

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 13

0

4

Toro 1-323134

Knob-Push / Pull

$28.99

$

In Stock, only 2 left!

0

5

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

6

Toro 1-323143

Bearing-Nylon

$6.49

$

In Stock, only 4 left!

0

7

Toro 106-5485

LH OPERATOR PRESENCE CONTROL LEVER ASM

$63.99

$

Usually ships in 3-6 days

0

8

Toro 1-803322

SCREW-SET

$1.49

$

In Stock, Qty 5

0

9

Toro 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 10

0

10

Toro 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, only 1 left!

0

11

Toro 106-2717-03

ROD-CONTROL, OPERATOR PRESENCE

$63.99

$

In Stock, only 1 left!

0

12

Toro 106-5486

RH OPERATOR PRESENCE CONTROL LEVER ASM

$59.99

$

Usually ships in 3-6 days

0

13

Toro 1-323142

NUT-PUSH

$2.99

$

In Stock, only 2 left!

0

14

Toro 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 10

0

15

Toro 1-633696

THROTTLE CABLE ASM

$62.99

$

In Stock, only 3 left!

0

16

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

17

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 1-323181

Linkage-Blade

$123.99

$

Usually ships in 3-6 days

0

19

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

21

Toro 103-0218

LH Drive Lever ASM

$158.99

$

Usually ships in 3-6 days

0

21:2

Toro 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

0

22

Toro 103-0219

RH Drive Lever ASM

Note: Not illustrated

$158.99

$

Usually ships in 3-6 days

0

22:2

Toro 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

0

23

Toro 1-603749

Bushing-Lever, Drive

$7.99

$

In Stock, Qty 5

0

24

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

25

Toro 1-613055

Pin-Clevis

$8.99

$

In Stock, only 2 left!

0

26

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

28

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

29

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

30

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

31

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

33

Toro 1-612167

LH LATCH GRIP ASM
(Superseded to 137-9515)

$44.99

$

Usually ships in 3-6 days

0

34

Toro 1-612168

RH LATCH and GRIP ASM
(Superseded to 137-9514)

Note: Not illustrated

$45.99

$

Usually ships in 3-6 days

0

35

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

37

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

38

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

39

Toro 1-303019

GRIP-LATCH

$2.99

$

In Stock, Qty 5

0

40

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

41

Toro 1-603716

Washer-Friction

$5.49

$

In Stock, only 2 left!

0

42

Toro 1-323244

Washer-Friction
(Superseded to 93-1633)

$2.99

$

In Stock, Qty 14

0

43

Toro 1-603730

PLATE-LEVER, SHIFTER

$37.99

$

Usually ships in 3-6 days

0

44

Toro 106-2748

LEVER-SHIFT

$102.99

$

In Stock, only 2 left!

0

45

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 7

0

46

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

47

Toro 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

48

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

49

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

50

Toro 1-323522

Rod-Control, Speed

$14.99

$

Usually ships in 3-6 days

0

51

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

52

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

53

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

54

Toro 104-9838

GRIP-FOAM

$5.99

$

In Stock, Qty 16

0

55

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

58

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

59

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

60

Toro 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

61

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

62

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

63

Toro 103-2007

Harness-Wiring

$165.99

$

Usually ships in 3-6 days

0
