30033 - Toro Walk-Behind Mower, Pistol-Grip, Hydro Drive, 17hp (SN: 311000001 - 311999999) (2011) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

Walk-Behind Mower, Pistol-Grip, Hydro Drive, 17hp

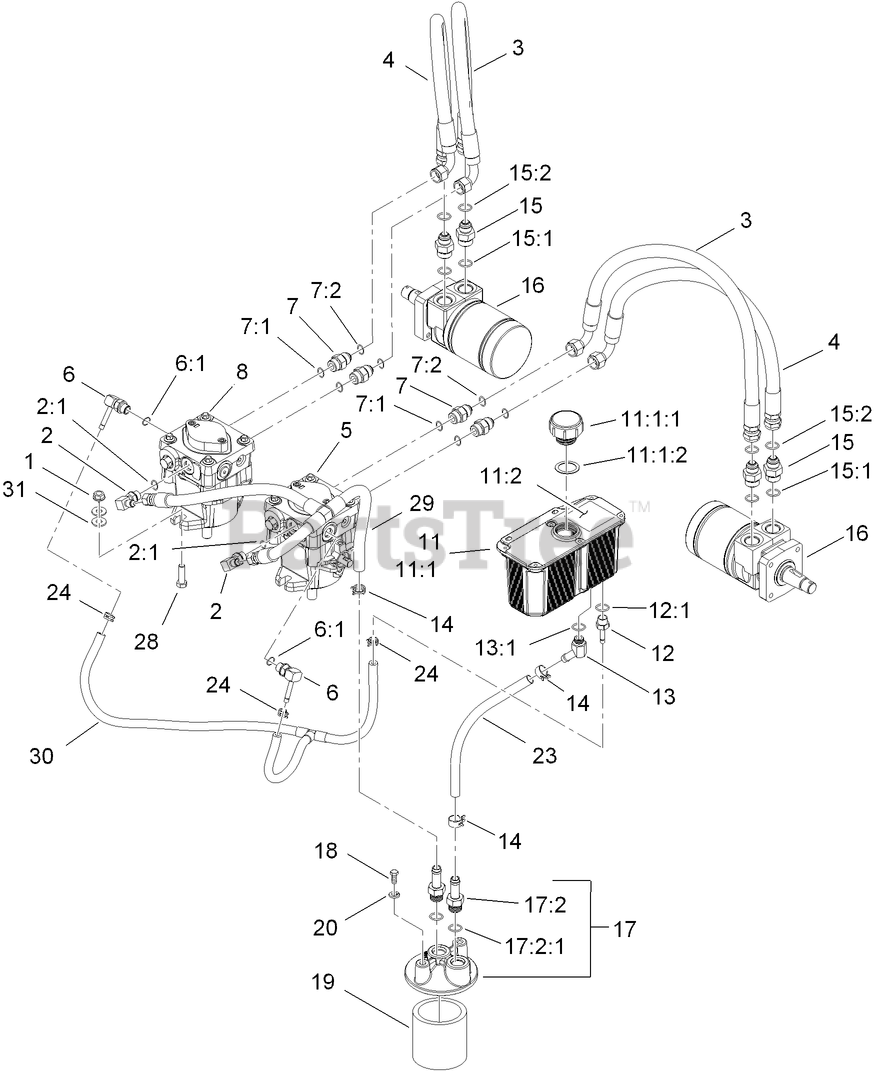

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Toro 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 1 left!

0

2:1

Toro 1-603921

O-Ring
(Superseded to 237-42)

$2.99

$

In Stock, Qty 20+

0

3

Toro 115-1020

HYD HOSE ASM

$

$

Not available

4

Toro 115-1021

HYD HOSE ASM

$

$

Not available

5

Toro 109-4987

PUMP-HYD

$1321.99

$

Usually ships in 3-6 days

0

6

Toro 103-1799

ELBOW-90 DEG

$29.99

$

In Stock, only 1 left!

0

6:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

7

Toro 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

7:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

7:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

8

Toro 109-4988

PUMP-HYD

$1200.99

$

In Stock, only 1 left!

0

11

Toro 107-8433

HYD RESERVOIR ASM

$384.99

$

Usually ships in 3-6 days

0

11:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

11:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$27.99

$

In Stock, Qty 20+

0

11:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

11:2

Toro 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

12

Toro 103-1801

Adapter-Straight

$30.99

$

In Stock, only 1 left!

0

12:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

13

Toro 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

14

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-603991

Fitting-Straight

$21.99

$

In Stock, only 2 left!

0

15:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

15:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

16

Toro 1-603718

HYD MOTOR ASM

$1206.99

$

In Stock, only 2 left!

0

17

Toro 103-2889

Filter Head ASM

$107.99

$

Usually ships in 3-6 days

0

17:2

Toro 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

17:2:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

18

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 15

0

20

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

23

Toro 103-2959

Hose-Charge

$8.49

$

Usually ships in 3-6 days

0

24

Toro 103-1716

Clamp-Hose

$1.49

$

In Stock, Qty 11

0

28

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

29

Toro 103-3914

CHARGE HOSE ASM

$69.99

$

Usually ships in 3-6 days

0

30

Toro 103-4019

CASE DRAIN HOSE ASM

$66.99

$

Usually ships in 3-6 days

0

31

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
