30032 - Toro 91cm Walk-Behind Mower, T-Bar, Hydro Drive, 15hp (SN: 310000001 - 310999999) (2010) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Hydro Drive, 15hp

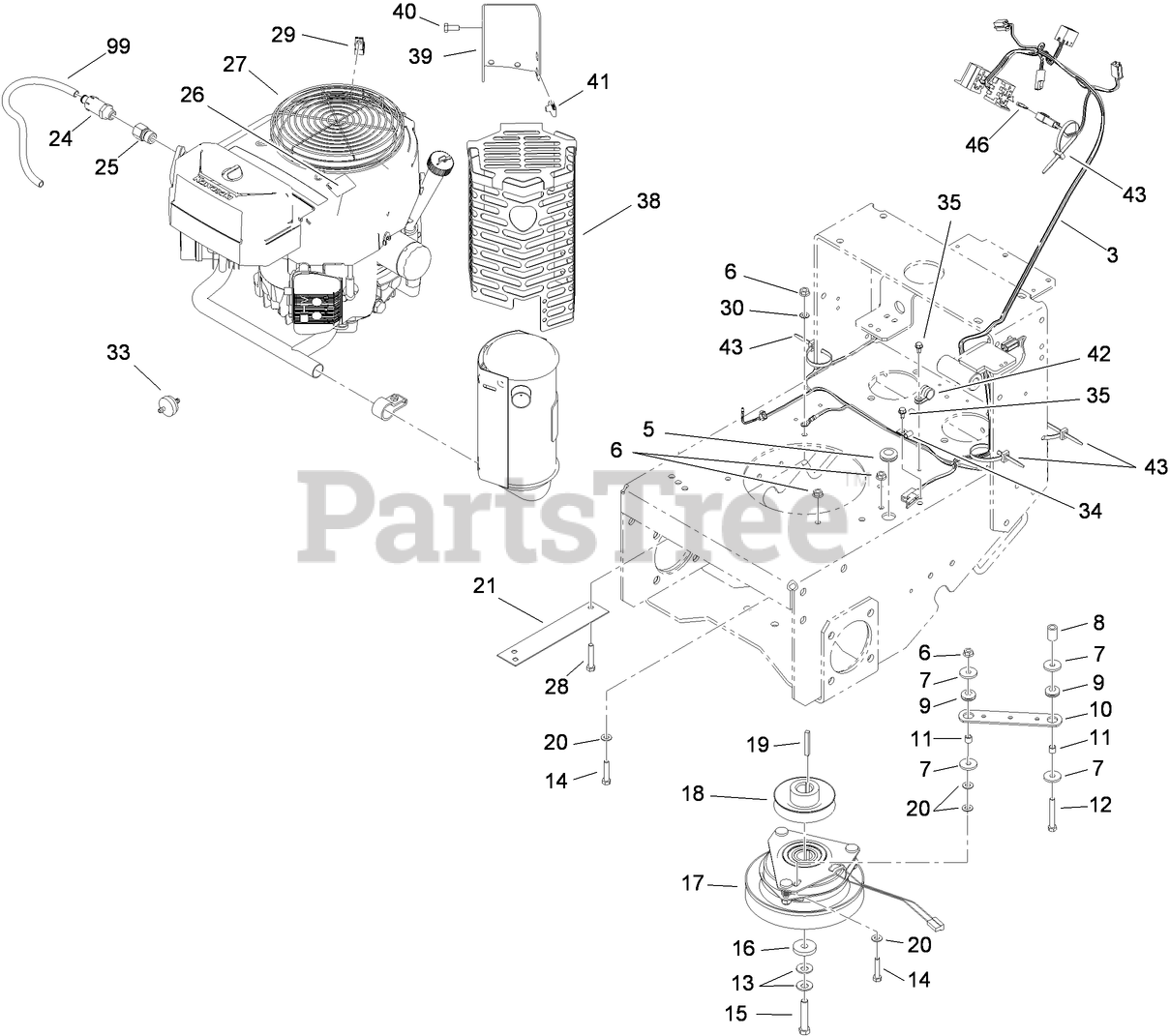

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

3

Toro 114-3420

HARNESS-WIRE

$485.99

$

Usually ships in 3-6 days

0

5

Toro 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

6

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 5

0

8

Toro 104-6373

TUBE-RETAINER

$15.99

$

Usually ships in 3-6 days

0

9

Toro 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

10

Toro 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 1 left!

0

11

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

12

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

14

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3212-9

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

16

Toro 107-4136

WASHER
(Superseded to 1-543610)

$6.49

$

In Stock, Qty 5

0

17

Toro 105-2635

CLUTCH / BRAKE ASM

$576.99

$

In Stock, only 1 left!

0

18

Toro 44-5940

Pulley

$151.99

$

Usually ships in 3-6 days

0

19

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 94-5847-01

COVER-PULLEY

$

$

Not available

24

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

25

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

26

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

27

ENGINE-KAWASAKI, FH430V-AS53

Note: Not serviced separately

$

$

Not available

27

ENGINE-KAWASAKI, FH430V-AS53

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

28

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

29

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

30

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

33

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

34

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

35

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

38

Toro 115-4150-03

MUFFLER SHIELD ASM

$175.99

$

Usually ships in 3-6 days

0

39

Toro 115-4154-03

BRACKET-MUFFLER

$34.99

$

Usually ships in 3-6 days

0

40

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

41

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

42

Toro 2412-134

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

43

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

46

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

99

Toro 103-1964

HOSE-DRAIN, OIL

$11.99

$

In Stock, only 1 left!

0
