30032 - Toro 91cm Walk-Behind Mower, T-Bar, Hydro Drive, 15hp (SN: 310000001 - 310999999) (2010) CONTROL PANEL ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Hydro Drive, 15hp

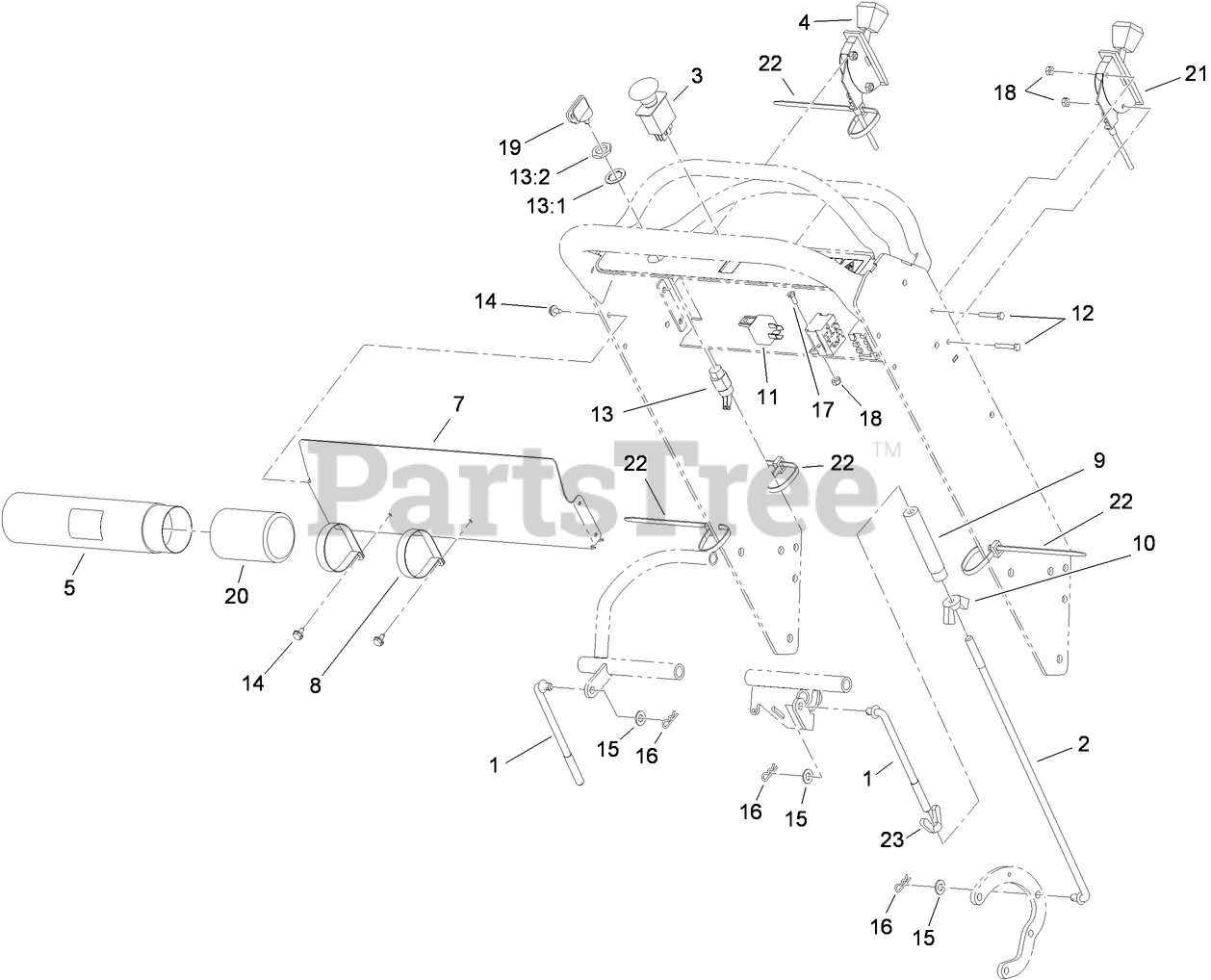

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 114-0275

ROD-CONTROL, UPPER

$37.99

$

Usually ships in 3-6 days

0

2

Toro 114-0276

ROD-CONTROL, LOWER

$46.99

$

Usually ships in 3-6 days

0

3

Toro 114-0279

SWITCH-PTO, ON-ON-(ON)

$59.99

$

In Stock, Qty 18

0

4

Toro 110-4994

CABLE-THROTTLE

$106.99

$

Usually ships in 3-6 days

0

5

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

7

Toro 114-0270-03

COVER-PANEL, CONTROL

$123.99

$

Usually ships in 3-6 days

0

8

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

9

Toro 95-1504

TURNBUCKLE

$71.99

$

Usually ships in 3-6 days

0

10

Toro 32103-3

NUT-WING

$1.99

$

Usually ships in 3-6 days

0

11

Toro 105-4145

RELAY

$49.99

$

Usually ships in 3-6 days

0

12

Toro 3290-360

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

13

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, Qty 11

0

13:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

13:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

14

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

17

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

18

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

20

Toro 104-7048

CAP-HOUSING

$5.99

$

Usually ships in 3-6 days

0

21

Toro 110-4995

CABLE-CHOKE

$88.99

$

Usually ships in 3-6 days

0

22

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

23

Toro 114-0281

NUT-WING, LH

$11.99

$

Usually ships in 3-6 days

0
