30032 - Toro 91cm Walk-Behind Mower, T-Bar, Hydro Drive, 15hp (SN: 290000001 - 290999999) (2009) LOWER CONTROL ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Hydro Drive, 15hp

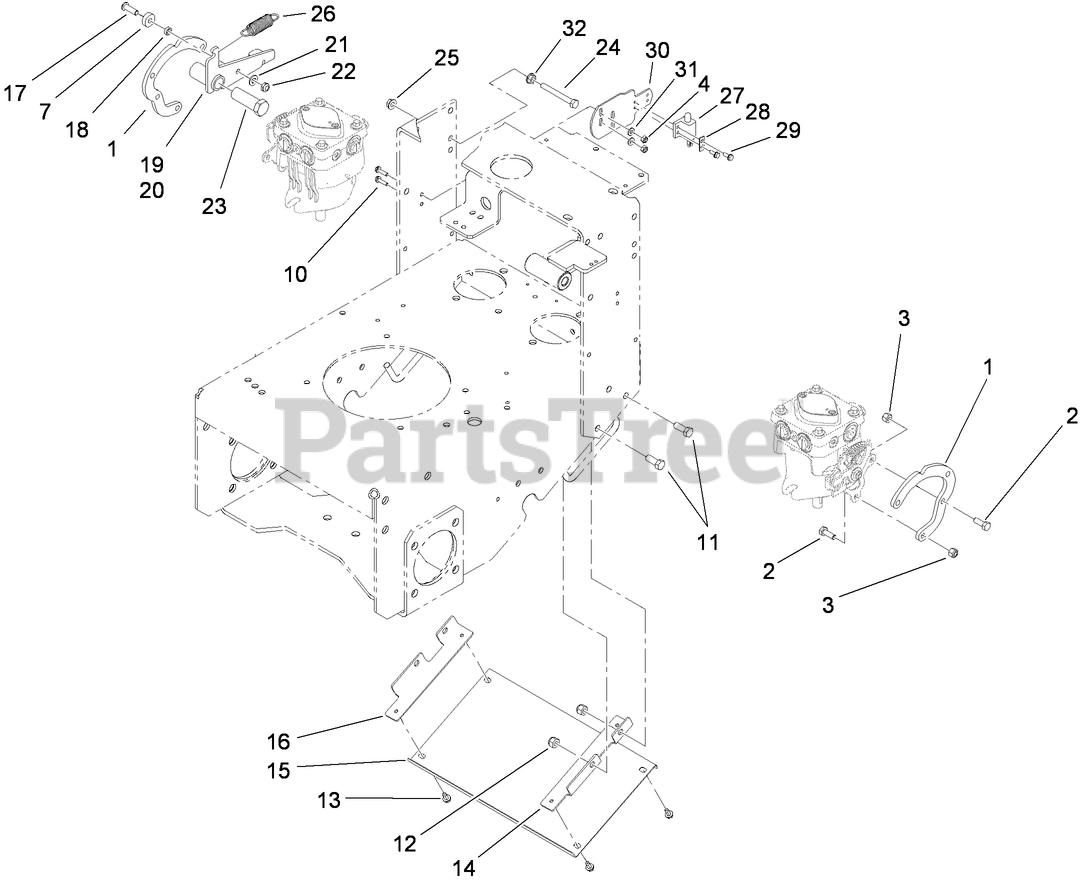

LOWER CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 112-9722

BRACKET-ADAPTER, PUMP

$36.99

$

Usually ships in 3-6 days

0

2

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 251-259

BEARING-BALL

$16.99

$

In Stock, only 4 left!

0

10

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

11

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

14

Toro 110-5012-01

ANGLE-MOUNTING, LEFT

$33.99

$

Usually ships in 3-6 days

0

15

Toro 110-5014-01

PANEL-BOTTOM

$74.99

$

Usually ships in 3-6 days

0

16

Toro 110-5013-01

ANGLE-MOUNTING, RIGHT

$33.99

$

Usually ships in 3-6 days

0

17

Toro 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0

18

Toro 82-4240

SPACER-BEARING

$6.99

$

Usually ships in 3-6 days

0

19

Toro 112-9726

RH DETENT ARM ASM

$78.99

$

Usually ships in 3-6 days

0

20

Toro 112-9725

LH DETENT ARM ASM

$78.99

$

Usually ships in 3-6 days

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

23

Toro 112-9724

PIN-ADJUSTMENT, NEUTRAL

$82.99

$

Usually ships in 3-6 days

0

24

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

25

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

26

Toro 105-1210

SPRING-EXTENSION

$21.99

$

Usually ships in 3-6 days

0

27

Toro 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 16

0

28

Toro 82-4570

PLATE-SWITCH

$14.99

$

Usually ships in 3-6 days

0

29

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

30

Toro 112-9723-01

BRACKET-NEUTRAL

$69.99

$

Usually ships in 3-6 days

0

31

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0
