30031 - Toro 91cm Walk-Behind Mower, T-Bar, Gear Drive, 15hp (SN: 290000001 - 290999999) (2009) LOWER CONTROL ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Gear Drive, 15hp

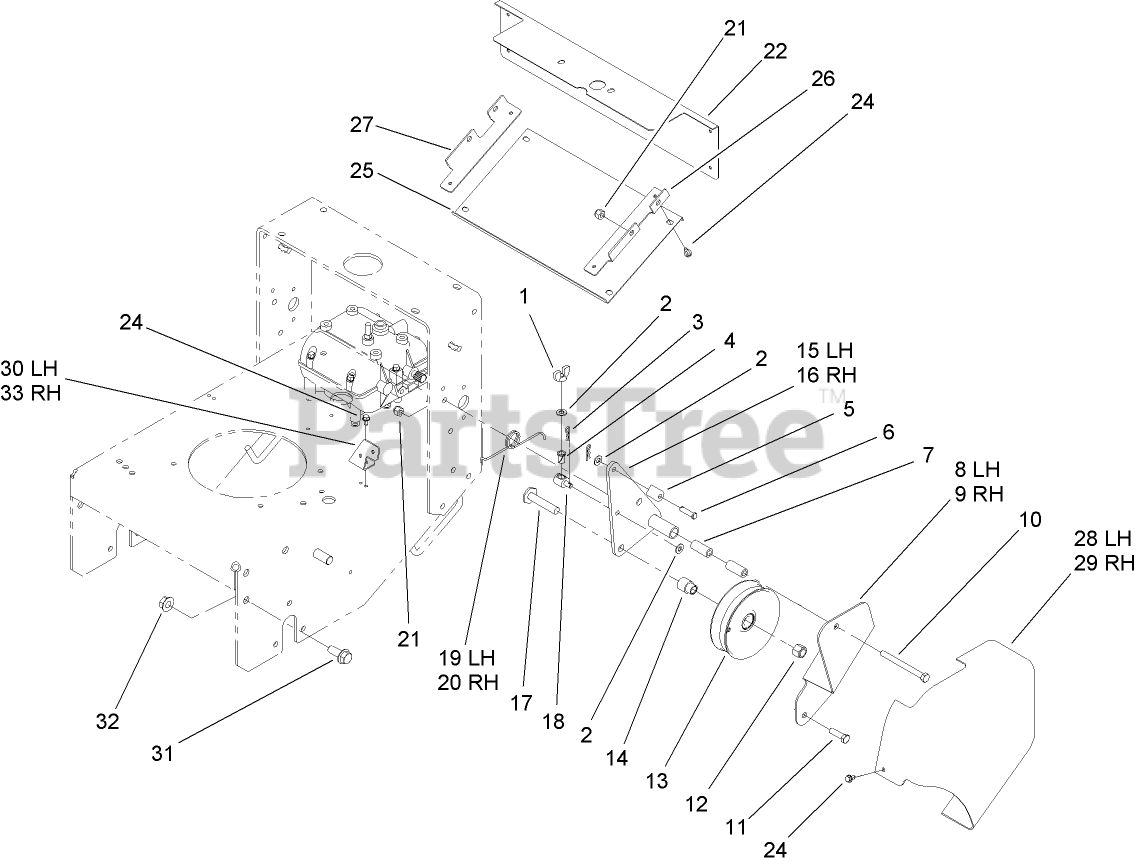

LOWER CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 32103-25

NUT-WING

$5.49

$

Usually ships in 3-6 days

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

4

Toro 52-2890

BUSHING-NYLON

$3.49

$

Usually ships in 3-6 days

0

5

Toro 74-0521

FITTING-ROD

$14.99

$

Usually ships in 3-6 days

0

6

Toro 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

7

Toro 74-0040

SPACER-PIVOT, IDLER

$6.49

$

Usually ships in 3-6 days

0

8

Toro 108-2725-01

SUPPORT-IDLER, LH

$55.99

$

Usually ships in 3-6 days

0

9

Toro 108-2724-01

SUPPORT-IDLER, RH

$55.99

$

Usually ships in 3-6 days

0

10

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 6

0

11

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 95-2800

PULLEY-IDLER

$44.99

$

Usually ships in 3-6 days

0

14

Toro 95-2801

SPACER-PULLEY

$9.49

$

Usually ships in 3-6 days

0

15

Toro 108-2740-01

ARM-IDLER, LH

$74.99

$

Usually ships in 3-6 days

0

16

Toro 108-2741-01

ARM-IDLER, RH

$74.99

$

Usually ships in 3-6 days

0

17

Toro 51-4450

SCREW-LEVELER

$13.99

$

Usually ships in 3-6 days

0

18

Toro 68-9690

FITTING-ROD

$56.99

$

Usually ships in 3-6 days

0

19

Toro 51-4380

SPRING-TORSION, LH

$17.99

$

In Stock, Qty 5

0

20

Toro 51-4370

SPRING-TORSION, RH

$17.99

$

In Stock, Qty 5

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro 104-8158-03

GUARD-SHAFT, TRANSMISSION

$124.99

$

Usually ships in 3-6 days

0

24

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

25

Toro 110-5014-01

PANEL-BOTTOM

$74.99

$

Usually ships in 3-6 days

0

26

Toro 110-5012-01

ANGLE-MOUNTING, LEFT

$33.99

$

Usually ships in 3-6 days

0

27

Toro 110-5013-01

ANGLE-MOUNTING, RIGHT

$33.99

$

Usually ships in 3-6 days

0

28

Toro 105-4659

GUARD-BELT, LH

$

$

Not available

29

Toro 105-4660

GUARD-BELT, RH

$

$

Not available

30

Toro 107-4078-01

BRACKET-MOUNTING, LH

$33.99

$

Usually ships in 3-6 days

0

31

Toro 3234-32

SCREW-HHF

$10.99

$

In Stock, only 1 left!

0

32

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

33

Toro 107-4079-01

BRACKET-MOUNTING, RH

$33.99

$

Usually ships in 3-6 days

0
