30031 - Toro 91cm Walk-Behind Mower, T-Bar, Gear Drive, 15hp (SN: 280000001 - 280999999) (2008) 91 CENTIMETER DECK ASSEMBLY NO. 112-7085 Parts Diagram

91cm Walk-Behind Mower, T-Bar, Gear Drive, 15hp

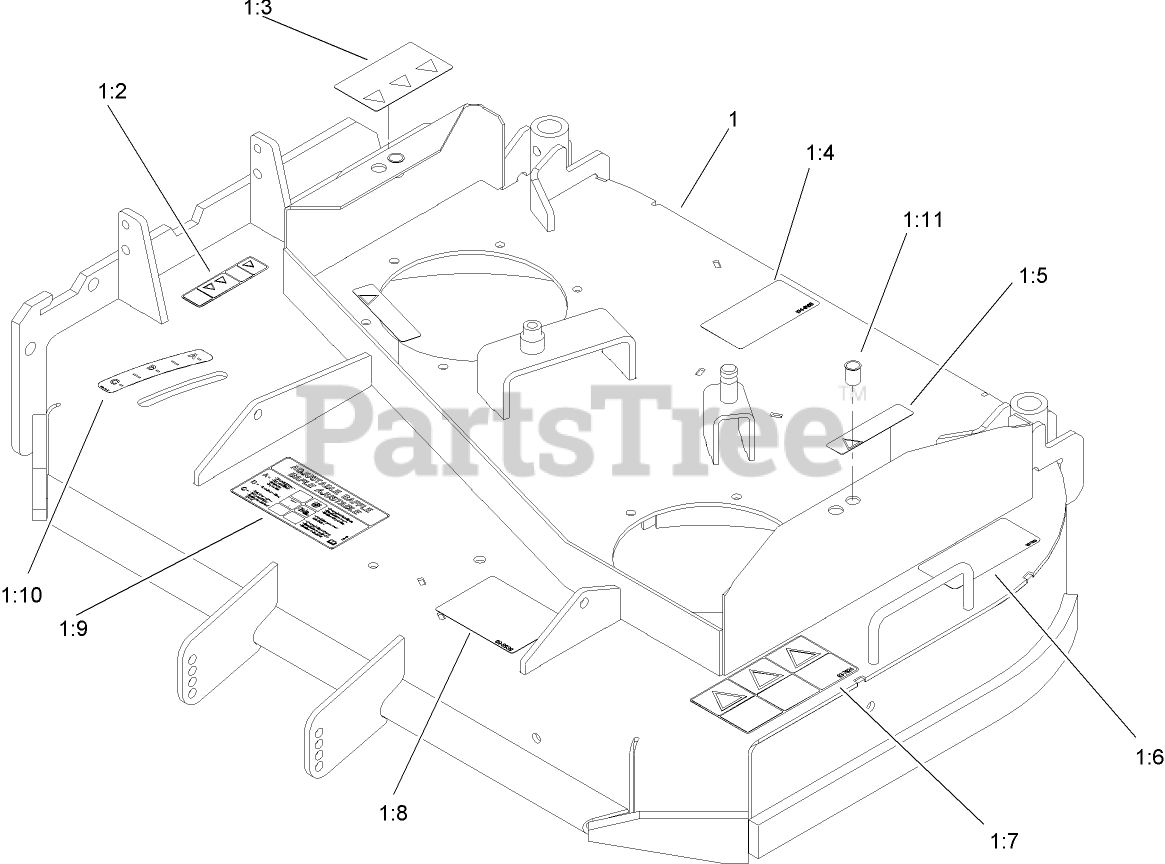

91 CENTIMETER DECK ASSEMBLY NO. 112-7085 Parts Diagram

  • Title
1

91 CENTIMETER DECK ASM

Note: Not serviced separately

$

$

Not available

1:2

Toro 93-7828

DECAL-WARNING, DEFLECTOR

$23.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-7010

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

1:4

$19.99

$

Usually ships in 3-6 days

0

1:5

Toro 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

1:6

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$12.99

$

In Stock, only 2 left!

0

1:7

Toro 93-7824

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

1:8

Toro 99-8939

DECAL-ANTI SCALP

$28.99

$

Usually ships in 3-6 days

0

1:9

Toro 110-2068

DECAL-ADJUSTMENT, BAFFLE

$11.99

$

In Stock, Qty 5

0

1:10

Toro 110-2067

DECAL-SETTING, BAFFLE

$7.99

$

In Stock, Qty 6

0

1:11

Toro 32148-9

INSERT-NUT

$3.49

$

In Stock, only 2 left!

0
