3000 M (UT-26021) - Green Machine String Trimmer Air Cleaner Parts Diagram

String Trimmer

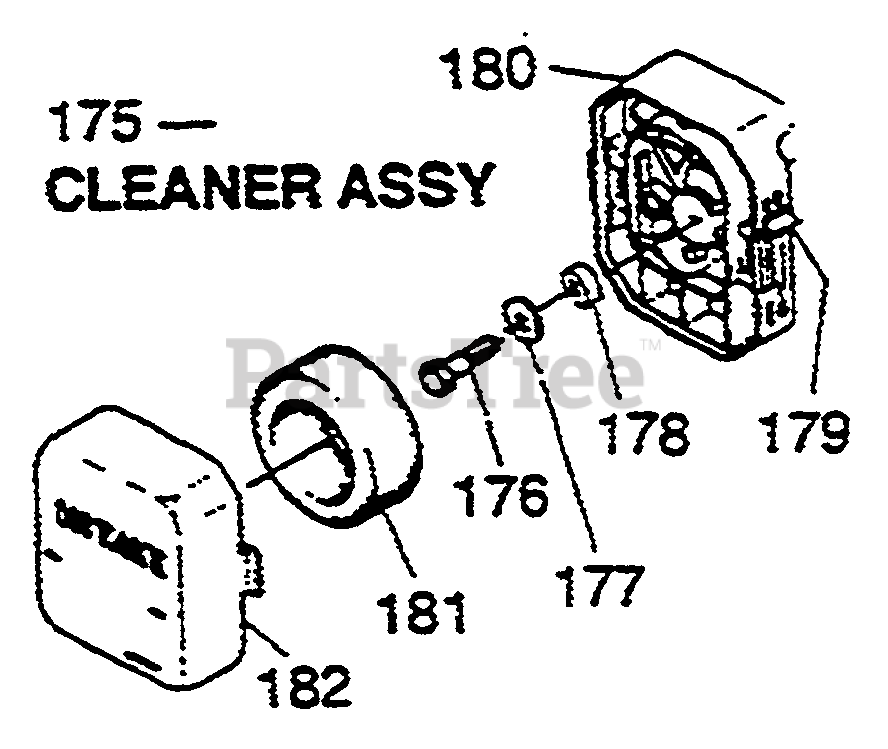

Air Cleaner Parts Diagram

  • Title

175

Homelite GM240308

CLEANER ASSY

Note: Includes ref 178 thru 182

$

$

Currently unavailable

176

Homelite GM002811

SCREW & WASHER

$

$

Currently unavailable

177

Homelite GM040066

WASHER

$

$

Not available

178

Homelite GM248205

SLEEVE

Note: Included in P/N GM240308 Cleaner Assy

$

$

Currently unavailable

179

Homelite GM248206

CHOKE

Note: Included in P/N GM240308 Cleaner Assy

$6.49

$

Usually ships in 3-7 days

0

180

Homelite GM248201

BODY, CLEANER

Note: Included in P/N GM240308 Cleaner Assy

$

$

Not available

181

Homelite GM248202

FILTER

Note: Included in P/N GM240308 Cleaner Assy

$6.99

$

Usually ships in 3-7 days

0

182

Homelite GM248203

COVER, CLEANER

Note: Included in P/N GM240308 Cleaner Assy

$

$

Not available
