3000 HB (UT-26111) - Green Machine Blower Engine Internal Parts Diagram

Blower

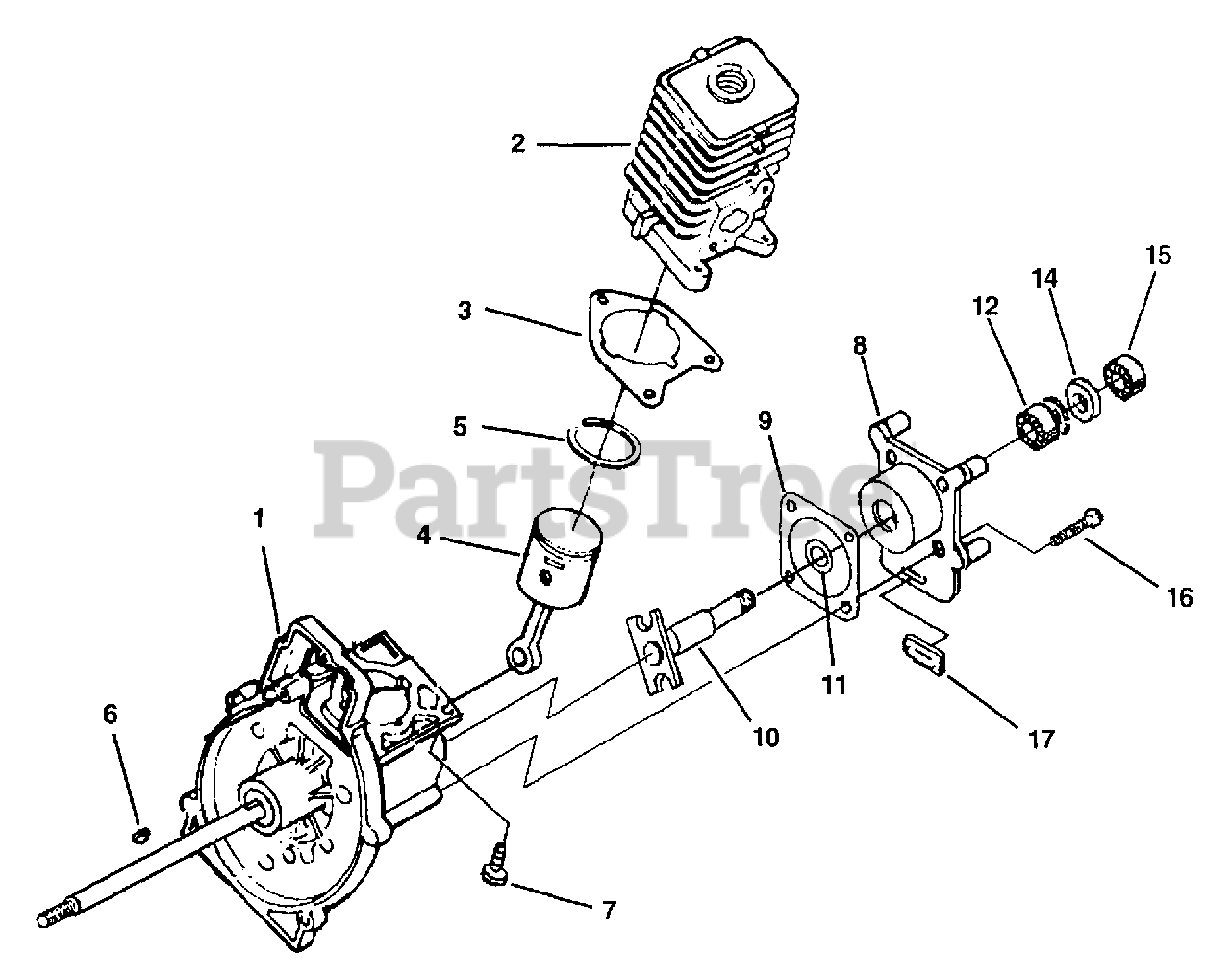

Engine Internal Parts Diagram

  • Title

1

Homelite A06263C

SHORT BLOCK

$

$

Currently unavailable

2

Homelite A07146D

CYLINDER
(Superseded to UP07146)

$

$

Not available

3

Homelite 04388B

GASKET, CYLINDER
(Superseded to 985259001)

$

$

Not available

4

Homelite A06291B

PISTON & ROD
(Superseded to UP03037)

$91.99

$

In Stock, only 1 left!

0

5

Homelite 04933

RING, PISTON

$

$

Not available

6

Homelite 69250

KEY, WOODRUFF

$

$

Not available

7

Homelite 880841

SCREW, SEMS
(Superseded to UP04345)

Note: Torque Specs: 65-75 In/Lbs; 7.5-8.6 Nm

$2.49

$

Usually ships in 3-7 days

0

8

Homelite A040172

CRANKCASE COVER
(Superseded to UP04878)

$

$

Not available

9

Homelite 98767A

GASKET, CRANKCASE

$

$

Not available

10

Homelite 04016B

SHAFT STARTER

$

$

Not available

11

Homelite 04589

SPACER

$

$

Not available

12

Homelite 00270B

BEARING, BALL
(Superseded to UP07197)

$

$

Not available

13

Homelite 98799

RING, RETAINING

$4.99

$

In Stock, only 1 left!

0

14

Homelite 98800

SEAL, SHAFT

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 04450

BEARING, BALL

$

$

Not available

16

Homelite 825551

SCREW, MACHINE 10-24 X 3/4"
(Superseded to UP03899)

Note: Torque Specs: 40-50 In/Lbs; 4.6-5.8 Nm

$2.99

$

Usually ships in 3-7 days

0

17

Homelite 98792

BUMPER, RUBBER

$1.49

$

Usually ships in 3-7 days

0
