3000 HB (UT-26111-A) - Green Machine Blower Starter Parts Diagram

Blower

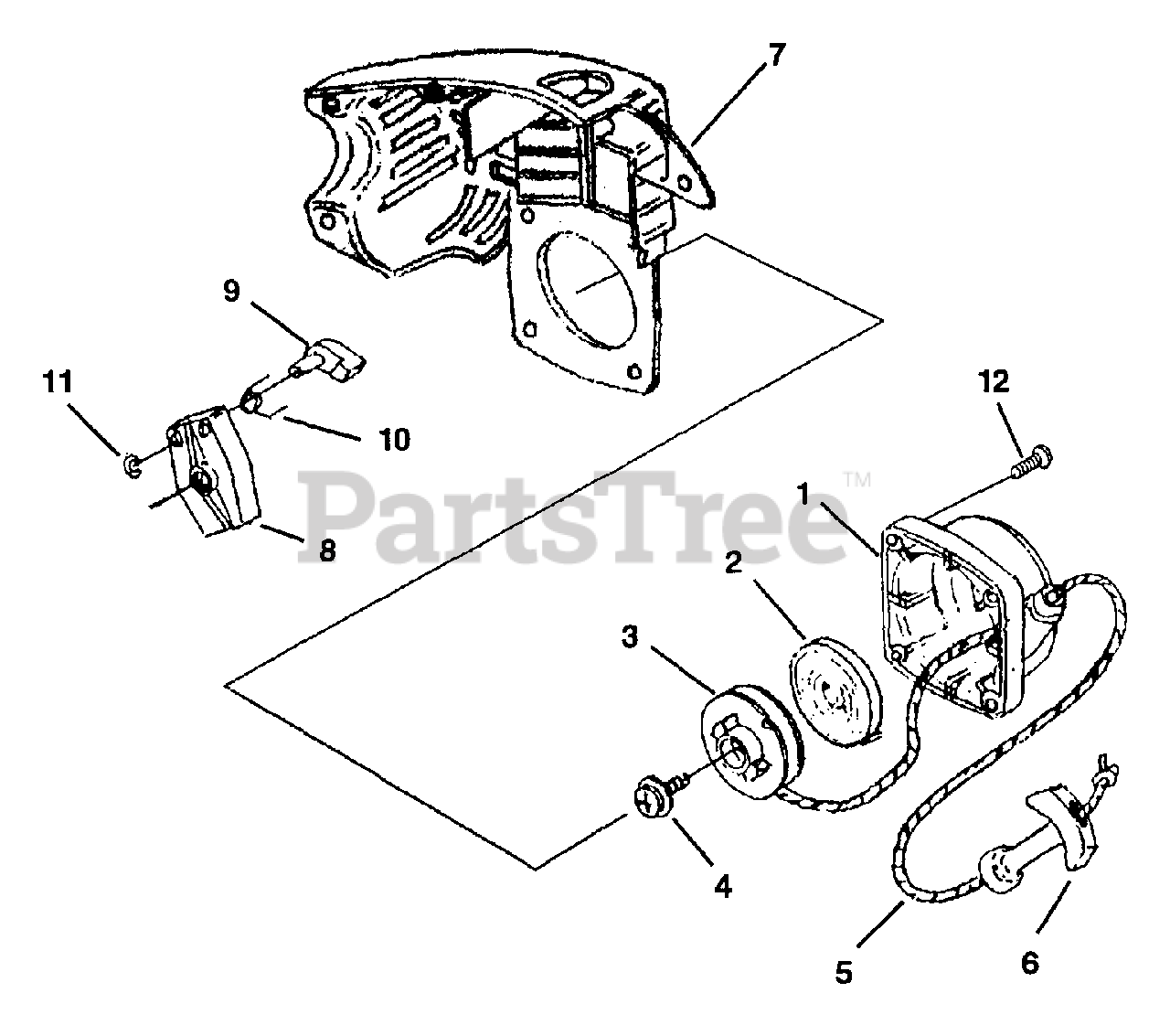

Starter Parts Diagram

  • Title

Homelite A04069

STARTER ASSY.

$

$

Not available

1

Homelite 0406901

HOUSING, STARTER

$

$

Not available

2

Homelite 0406906

SPRING, RECOIL
(Superseded to UP04871)

$

$

Not available

3

Homelite 0406905

PULLEY, STARTER
(Superseded to UP04880)

$96.99

$

Usually ships in 3-7 days

0

4

Homelite 0406904

SCREW

Note: Torque Specs: 25-35 In/Lbs; 2.8-3.9 Nm

$

$

Not available

5

Homelite 0406903

ROPE, STARTER

$

$

Not available

6

Homelite 0406902

GRIP, STARTER

$

$

Not available

7

Homelite 04439

SHROUD, COVER

$

$

Not available

8

Homelite A04018

CUP, STARTER
(Superseded to UP04879)

$

$

Not available

9

Homelite 0401802

PAWL, STARTER
(Superseded to UP04879)

$

$

Not available

10

Homelite 0401803

SPRING, STARTER PAWL
(Superseded to UP04879)

$

$

Not available

11

Homelite 0401804

RING, RETAINER
(Superseded to UP04879)

$

$

Not available

12

Homelite 82538

SCREW

Note: Torque Specs: 40-50 In/Lbs; 4.6-5.8 Nm

$1.99

$

Usually ships in 3-7 days

0
