3000 C (26A-140-150) - Cub Cadet Pressure Washer Pump Set (Part 1) Parts Diagram

Pressure Washer

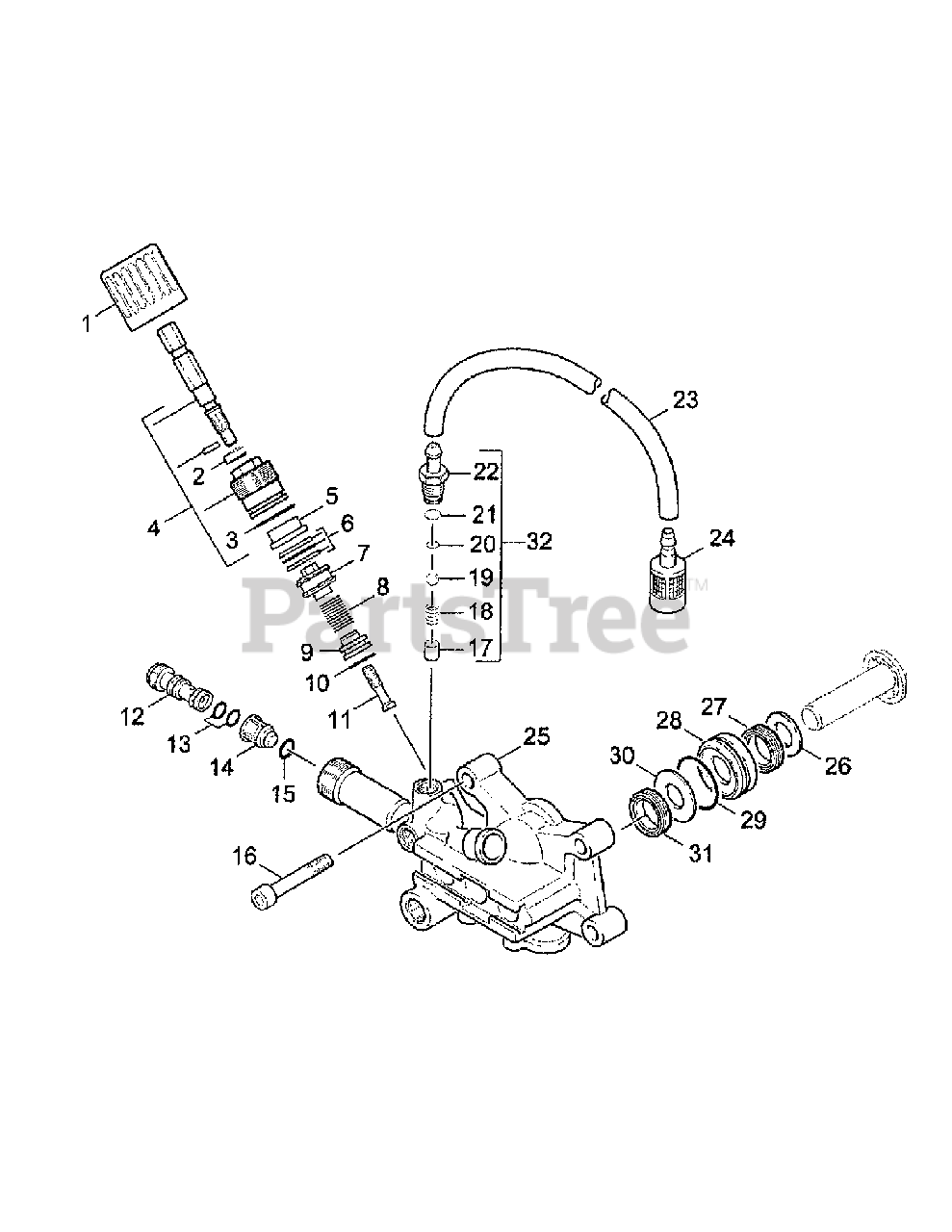

Pump Set (Part 1) Parts Diagram

  • Title

Cub Cadet KR-3532761

Pump Set

Note: NLA

$

$

Not available

1

Cub Cadet KR-5321307

Handle

Note: NLA

$

$

Not available

2

Cub Cadet KR-6362468

Gasket

Note: NLA

$

$

Not available

3

Cub Cadet KR-6362989

Gasket

Note: NLA

$

$

Not available

4

Cub Cadet KR-4401079

Union Scre

Note: NLA

$

$

Not available

5

Cub Cadet KR-5110854

Sleeve

Note: NLA

$

$

Not available

6

Cub Cadet KR-6362454

Gasket

Note: NLA

$

$

Not available

7

Cub Cadet KR-5553363

Piston

Note: NLA

$

$

Not available

8

Cub Cadet KR-5332425

Helical Spring

Note: NLA

$

$

Not available

9

Cub Cadet KR-5581242

Valve Seat

Note: NLA

$

$

Not available

10

Cub Cadet KR-6362169

Gasket

Note: NLA

$

$

Not available

11

Cub Cadet KR-5305274

Screw

Note: NLA

$

$

Not available

12

Cub Cadet KR-5769128

Nozzle Insert

Note: NLA

$

$

Currently unavailable

13

Cub Cadet KR-6362384

Gasket

Note: NLA

$

$

Not available

14

Cub Cadet KR-5584091

Valve Pin

Note: NLA

$

$

Not available

15

Cub Cadet KR-6362851

Gasket

Note: NLA

$

$

Not available

16

Cub Cadet KR-7306047

Screw

Note: NLA

$

$

Not available

17

Cub Cadet KR-5110714

Sleeve

Note: NLA

$

$

Not available

18

Cub Cadet KR-5332258

Helical Spring

Note: NLA

$

$

Not available

19

Cub Cadet KR-7401909

Ball

Note: NLA

$

$

Not available

$

$

Not available

21

Cub Cadet KR-6362451

Gasket

Note: NLA

$

$

Not available

22

Cub Cadet KR-5443448

Nipple

Note: NLA

$

$

Not available

23

Cub Cadet KR-9162101

Hose

Note: NLA

$

$

Not available

24

Cub Cadet KR-4862032

Filter

Note: NLA

$

$

Not available

25

Cub Cadet KR-5550265

Cylinder Head

Note: NLA

$

$

Not available

26

Cub Cadet KR-5115744

Washer

Note: NLA

$

$

Not available

27

Cub Cadet KR-6365434

Grooved Ring

Note: NLA

$

$

Not available

28

Cub Cadet KR-5112576

Bushing

Note: NLA

$

$

Not available

29

Cub Cadet KR-6362376

Gasket

Note: NLA

$

$

Not available

30

Cub Cadet KR-5115859

Washer

Note: NLA

$

$

Not available

31

Cub Cadet KR-6365432

Grooved Ring

Note: NLA

$

$

Not available

32

Cub Cadet KR-2883862

Check Valve

Note: NLA

$

$

Not available
