3000 (5900530) - Massey Ferguson 52" Zero-Turn Mower Engine & PTO Group Parts Diagram

52" Zero-Turn Mower

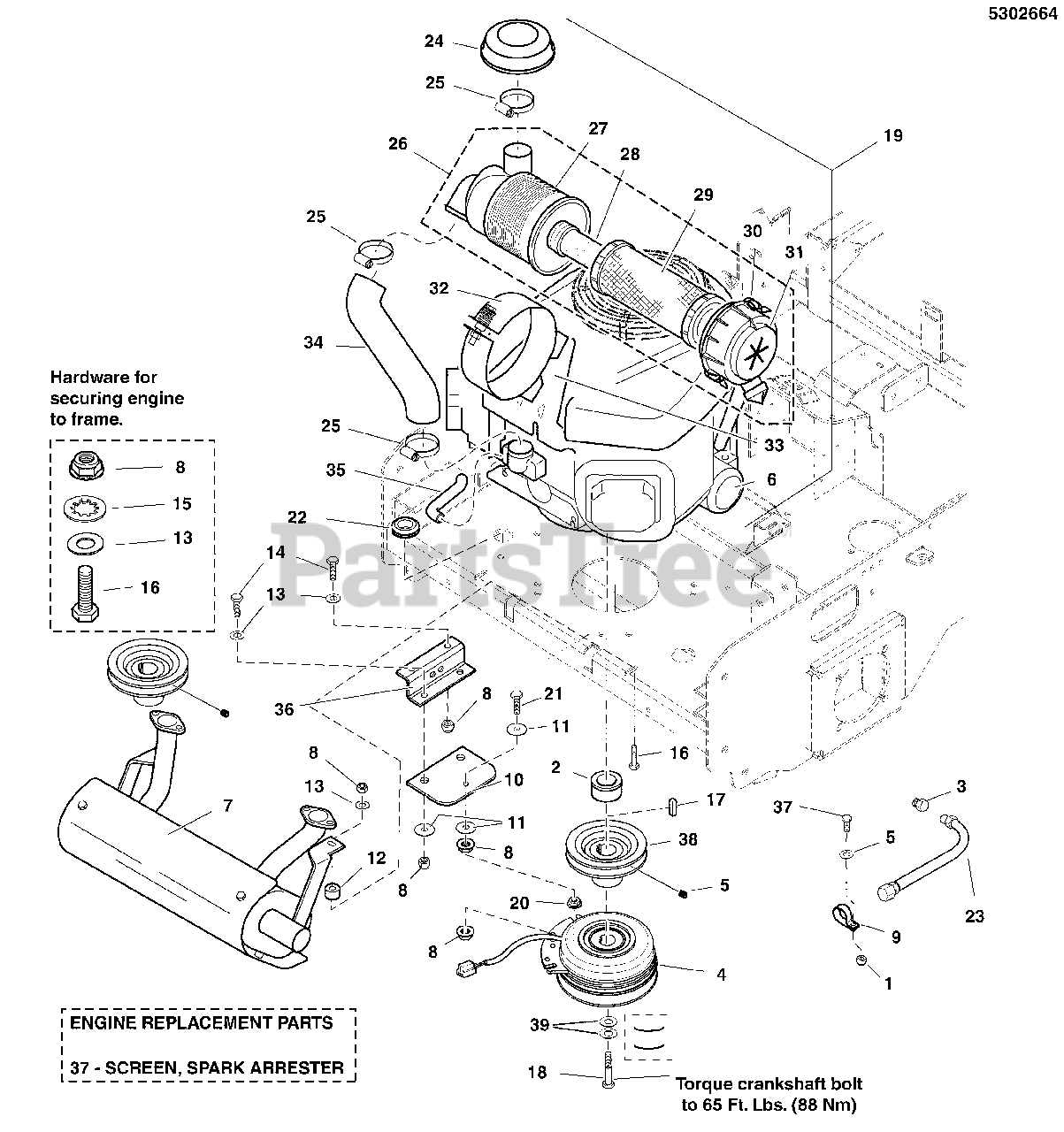

Engine & PTO Group Parts Diagram

  • Title

1

Simplicity 703463

NUT, 1/4-20, GR5 Flanged Nylock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 5048136

SPACER, 1.13 x 1.75 x 1.25

$15.99

$

Usually ships in 2-12 days

0

3

Simplicity 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

4

Simplicity 5105090

CLUTCH WARNER 200 FT-LB 1.13 X 6.323
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

5

Simplicity 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

In Stock, Qty 12

0

6

Simplicity 5102278X1

FILTER,OIL,KAWA FS,FX,FR 603 & 726CC ENG (49065-7007)

$

$

Not available

7

Simplicity 5104326YP

MUFFLER, KAWI, HORIZONTAL, 5" CAN

$207.99

$

In Stock, only 1 left!

0

8

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

Note: (Qty: 10 - S/N: 2016915554 & Below)

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

11

Simplicity 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

12

Simplicity 5046446

SPACER, .39 X 1.00 X .80, CZ
(Superseded to 5046446SM)

Note: (S/N: 2016915554 & Below)

$7.49

$

In Stock, only 1 left!

0

13

Simplicity 5025155

WASHER, 5/16" SAE

Note: (Qty: 6 - S/N: 2016915554 & Below)

$

$

Currently unavailable

14

Simplicity 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

15

Simplicity 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

16

Simplicity 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

Note: (Qty: 5 - S/N: 2016915554 & Below)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 5050407X8

KEY, 1/4" SQ. X 1.00"
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

18

Simplicity 5102865

BOLT, CRANKSHAFT, 7/16 X 2-3/4, PATCH, CZ
(Superseded to 5102865YP)

$5.49

$

In Stock, only 2 left!

0

19

* ENGINE, KAWASAKI

$

$

Not available

20

Simplicity 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

21

Simplicity 5025052X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18)

$3.99

$

In Stock, only 1 left!

0

22

Simplicity 5021379

GROMMET, 7/8"
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

23

Simplicity 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

24

Simplicity 5023143

RAIN CAP, AIR FILTER, 22,24&26HP, KAWASAKI (SV)

Note: (*See footnote)

$

$

Not available

25

Simplicity 5023146

CLAMP, HOSE

Note: (*See footnote)

$11.99

$

Usually ships in 2-12 days

0

26

Simplicity 5023138

CAP END, FILTER CASE

Note: (*See footnote)

$

$

Not available

27

Simplicity 5023139

AIR FILTER ASSEMBLY, Complete
(Superseded to 5023139SM)

Note: (*See footnote)

$

$

Not available

28

Simplicity 5023140

AIR FILTER, ELEMENT, SECONDARY
(Superseded to 5023140SM)

Note: (*See footnote)

$

$

Not available

29

Simplicity 5023141

AIR FILTER, ELEMENT, PRIMARY
(Superseded to 5023141SM)

Note: (*See footnote)

$

$

Not available

30

Simplicity 5023147

CLAMP, Cap

Note: (*See footnote)

$

$

Not available

31

Simplicity 5023144

RUBBER, Dust Valve (SV)

Note: (*See footnote)

$

$

Not available

32

Simplicity 5023145

CASE, BRACKET, COMPLETE

Note: (*See footnote)

$

$

Not available

33

Simplicity 5023142

BRACKET PLATE

Note: (*See footnote)

$

$

Not available

34

Simplicity 5023149

AIR INLET TUBE

Note: (*See footnote)

$

$

Not available

35

Simplicity 5023148

BREATHER TUBE

Note: (*See footnote)

$

$

Not available

36

Simplicity 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

37

Simplicity 5101641

SCREEN, SPARK ARRESTER (SV)
(Superseded to 5101641YP)

Note: (Not Shown)

$84.99

$

Usually ships in 2-12 days

0

38

Simplicity 5101022

PULLEY, 5.15 OD X 1-1/8 BORE B-SECT

$32.99

$

Usually ships in 2-12 days

0

39

Simplicity 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

In Stock, only 4 left!

0
