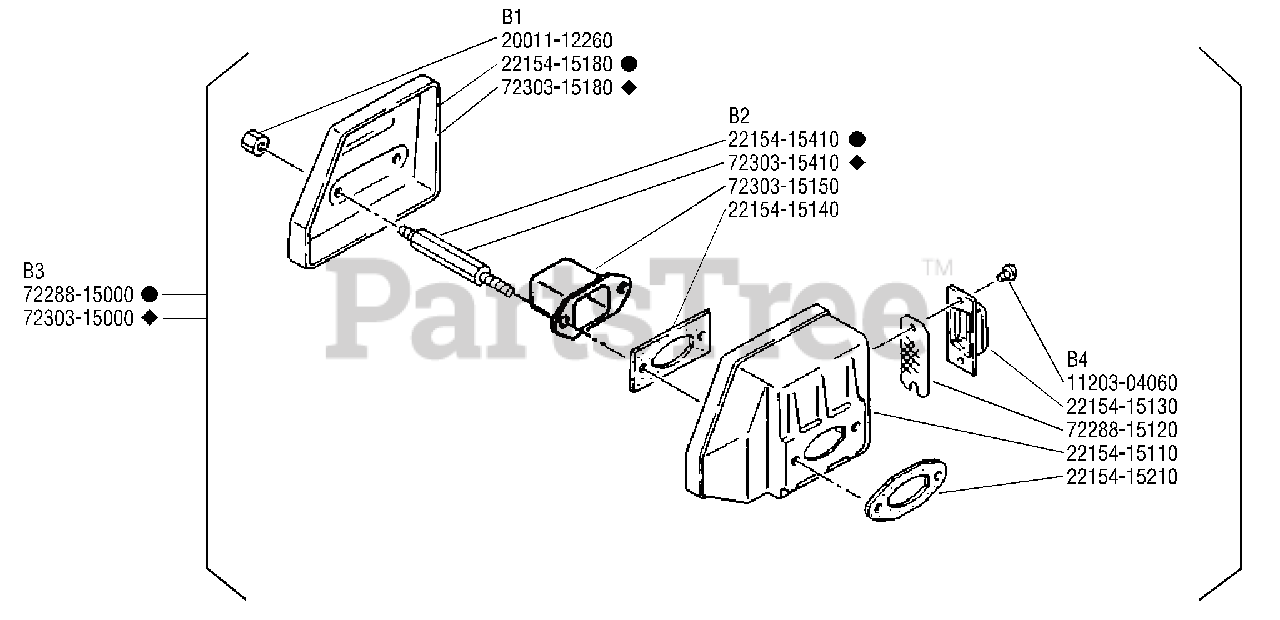

300 - Shindaiwa Chainsaw Muffler Parts Diagram

Chainsaw

Muffler Parts Diagram

  • Title

20011-12260

Echo 20011-12260

NUT
(Superseded to V263000260)

$0.99

$

In Stock, Qty 13

0

22154-15180

Echo 22154-15180

COVER, MUFFLER

Note: Model 300

$7.49

$

Usually ships in 2-4 days

0

72303-15180

Echo 72303-15180

COVER, MUFFLER
(Superseded to A300001310)

Note: Model 300S

$

$

Not available

22154-15410

Echo 22154-15410

BOLT

Note: Model 300

$3.49

$

In Stock, only 2 left!

0

72303-15410

Echo 72303-15410

BOLT
(Superseded to V203001220)

Note: Model 300S

$3.99

$

Usually ships in 2-4 days

0

72303-15150

Echo 72303-15150

PIPE, MUFFLER
(Superseded to A313001420)

$5.99

$

Usually ships in 2-4 days

0

22154-15140

Echo 22154-15140

PLATE, MUFFLER
(Superseded to A313001410)

$2.49

$

Usually ships in 2-4 days

0

72288-15000

Echo 72288-15000

MUFFLER ASSY
(Superseded to Discontinued)

Note: Model 300

$

$

Not available

72303-15000

Echo 72303-15000

MUFFLER ASSY
(Superseded to Discontinued)

Note: Model 300S

$

$

Not available

11203-04060

Echo 11203-04060

SCREW - 4X6
(Superseded to 9157804006)

$0.99

$

In Stock, Qty 14

0

22154-15130

Echo 22154-15130

GUIDE, EXHAUST

$4.99

$

In Stock, only 1 left!

0

72288-15120

Echo 72288-15120

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, only 1 left!

0

22154-15110

Echo 22154-15110

BASE MUFFLER
(Superseded to A300001330)

$13.99

$

Usually ships in 2-4 days

0

22154-15210

Echo 22154-15210

SHIELD, EXHAUST
(Superseded to 22154-15211)

$2.99

$

In Stock, only 1 left!

0
