300 (212-300-100) - Cub Cadet 26" Front-Tine Tiller (1982) Handle, Wheel and Clutch Handle Assemblies Parts Diagram

26" Front-Tine Tiller

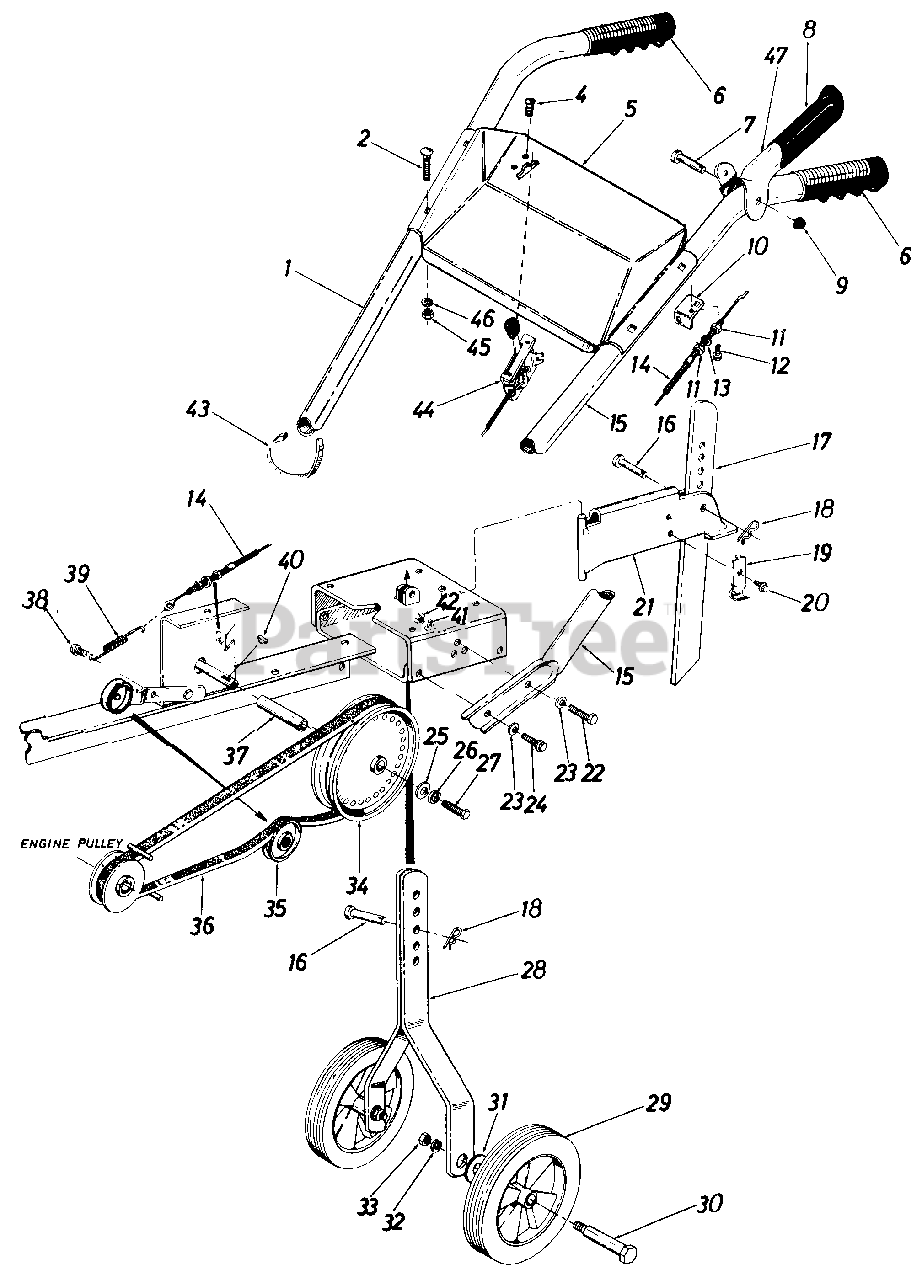

Handle, Wheel and Clutch Handle Assemblies Parts Diagram

  • Title

1

Cub Cadet 749-0518

Handle - R.H.

$

$

Currently unavailable

2

Cub Cadet 710-0458

Carriage Bolt 5/16-18 x 1.75" Lg.

$4.49

$

In Stock, only 4 left!

0

4

Cub Cadet 710-0160

Hex Wash. Hd. AB-Tap Scr. #8 x .62" Lg.

$

$

Currently unavailable

5

Cub Cadet 15284

Handle Panel

Note: Color Code - 499

$

$

Currently unavailable

6

Cub Cadet 720-0180

Grip
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

7

Cub Cadet 711-0705

Clevis Pin 3/8" x 1.88" Lg.
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

8

Cub Cadet 731-0473

Vinyl Clutch Grip

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 726-0110

Push Cap
(Superseded to 926-0100)

$

$

Not available

10

Cub Cadet 15093

Cable Support Brkt.

$

$

Not available

11

Cub Cadet 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

12

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 746-0370

Clutch Control Cable
(Superseded to 946-0370)

$

$

Not available

15

Cub Cadet 749-0520

Handle - L.H.

$

$

Currently unavailable

16

Cub Cadet 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 04927

Depth Bar

Note: Color Code - 499

$

$

Not available

18

Cub Cadet 714-0149

Hairpin Cotter
(Superseded to 914-0149B)

$

$

Not available

19

Cub Cadet 732-0380

Depth Bar Spring

$

$

Not available

20

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 04944

Tailpiece Ass'y.

Note: Color Code - 499

$

$

Not available

22

Cub Cadet 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0649

Hex Wash. Hd. Self-Tap Scr. 3/8-24 x 7/8" Lg.

$

$

Not available

25

Cub Cadet 736-0176

Fl-Wash. .25" I.D. x .930" O.D. x .120" Thk.

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 18

0

27

Cub Cadet 710-0412

Hex Scr. 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

28

Cub Cadet 06813

Wheel Bracket Ass'y.

$

$

Not available

29

Cub Cadet 734-0968

Wheel Ass'y. 9 x 1.75
(Superseded to 753-04874)

$58.99

$

In Stock, only 1 left!

0

30

Cub Cadet 738-0318

Shld. Bolt

$

$

Not available

31

Cub Cadet 736-0253

Belleville Washer 1/2" I.D.

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0921

L-Wash. 1/2 Scr.

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 712-0200

Hex Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

34

Cub Cadet 756-0343

Pulley 6.00" O.D.

$

$

Currently unavailable

35

Cub Cadet 756-0137

Idler Pulley

$

$

Not available

36

Cub Cadet 754-0190

V-Belt 1/2" Pitch x 39"
(Superseded to 954-0190)

$32.99

$

In Stock, only 4 left!

0

37

Cub Cadet 750-0472

Spacer

$

$

Not available

38

Cub Cadet 710-0601

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 732-0387

Extension Spring

$

$

Not available

40

Cub Cadet 714-0388

Hi-Pro Key
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 16

0

41

Cub Cadet 736-0169

L-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 712-0342

Hex 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

43

Cub Cadet 725-0157

Cable Ties

$3.99

$

In Stock, Qty 20+

0

44

Cub Cadet 746-0175

Throttle Control Comp.

$

$

Not available

45

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

47

Cub Cadet 04965

Clutch Handle Ass'y.

$

$

Currently unavailable
