30 HC-C (59AD202-150) - Cub Cadet Single Sided Hedge Clipper Engine Parts Diagram

Single Sided Hedge Clipper

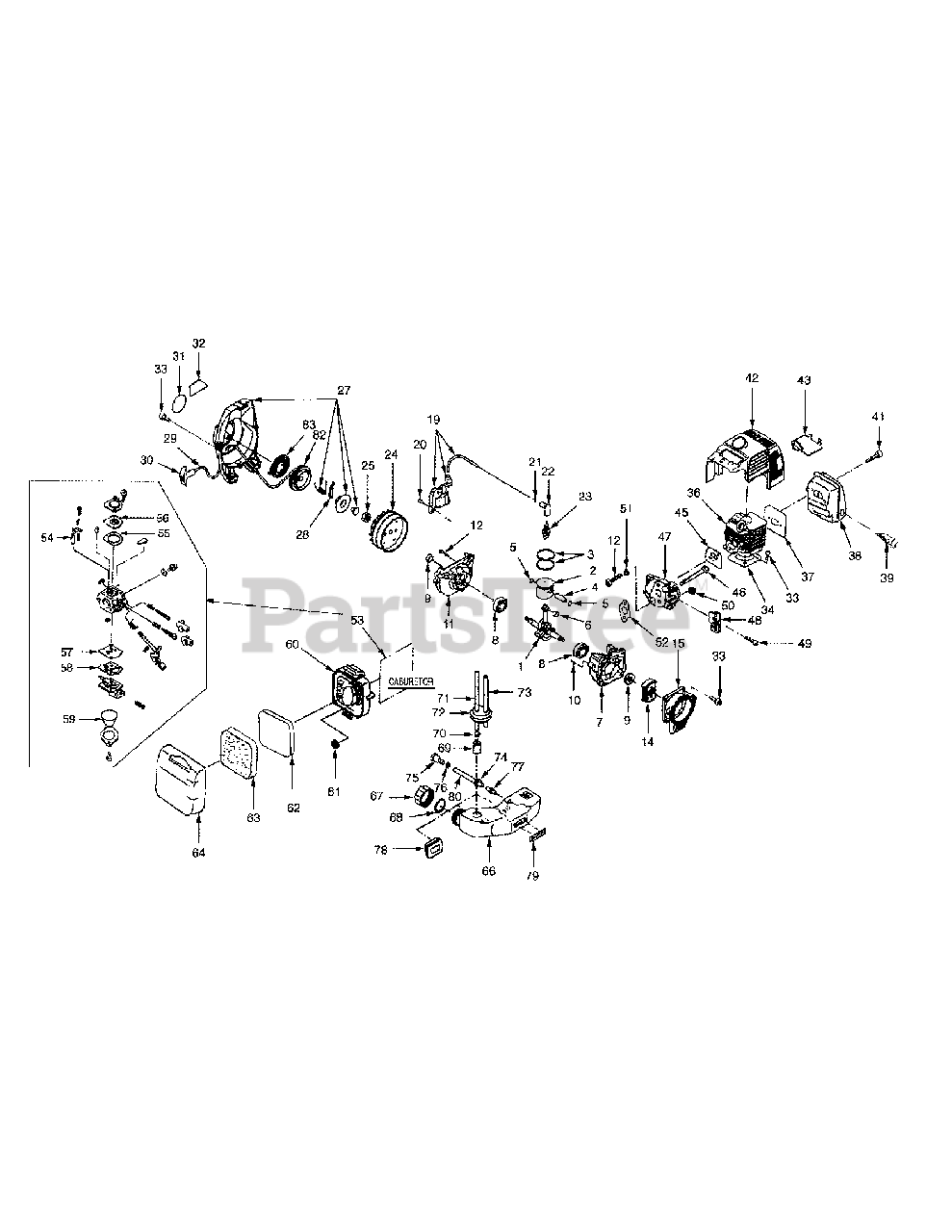

Engine Parts Diagram

  • Title

1

Cub Cadet IM-115253490

Crankshaft

$

$

Not available

2

Cub Cadet IM-115013311

Piston Assembly

$

$

Not available

3

Cub Cadet IM-115113650

Ring, Piston

$

$

Not available

4

Cub Cadet IM-115323041

Pin, Piston

$

$

Not available

5

Cub Cadet IM-198343210

Clip, Piston Pin

$

$

Not available

6

Cub Cadet IM-042709008

Bearing, Needle

$

$

Not available

7

Cub Cadet IM-110035190

Crankcase Assembly

$

$

Not available

8

Cub Cadet IM-040106201

Bearing, Ball, 6201

$

$

Not available

9

Cub Cadet IM-050209070

Seal, Oil

$7.99

$

Usually ships in 3-6 days

0

10

Cub Cadet IM-030500512

Pin, Dowel

$

$

Not available

11

Cub Cadet IM-110035200

Crankcase Assembly

$

$

Not available

12

Cub Cadet IM-010709010

Bolt, M5x25

$

$

Not available

14

Cub Cadet IM-170033380

Clutch Assembly

$

$

Not available

15

Cub Cadet IM-110423060

Adapter

$

$

Not available

19

Cub Cadet IM-150053330

Coil Assembly, Ignition

$

$

Not available

20

Cub Cadet IM-010709018

Bolt, M4x20

$3.49

$

In Stock, Qty 5

0

21

Cub Cadet IM-198213300

Spring

$2.99

$

In Stock, only 1 left!

0

22

Cub Cadet IM-150413033

Cap, Plug

$

$

Not available

23

Cub Cadet IM-150265091

Spark Plug
(Superseded to BPMR7A)

$3.49

$

In Stock, Qty 20+

0

24

Cub Cadet IM-150103521

Flywheel, Magneto

$

$

Not available

25

Cub Cadet IM-020109107

Nut

$

$

Not available

27

Cub Cadet IM-175015190

Housing, Assembly, Blower

$

$

Not available

28

Cub Cadet IM-155163060

Ratchet

$

$

Not available

29

Cub Cadet IM-155213150

Rope, Starter

$

$

Not available

30

Cub Cadet IM-155223061

Knob, Starter

Note: NLA

$

$

Not available

31

Cub Cadet IM-190285520

Name Plate

$

$

Not available

32

Cub Cadet IM-190194011

Caution Plate

$

$

Not available

33

Cub Cadet IM-010709008

Bolt, M5x16

$

$

Not available

34

Cub Cadet IM-110993420

Gasket

$

$

Not available

36

Cub Cadet IM-110213560

Cylinder

$

$

Not available

37

See Ref No. 81

Gasket, Muffler

$

$

Not available

38

Cub Cadet IM-135403680

Muffler

$

$

Not available

39

Cub Cadet IM-135493090

Arrester

$12.99

$

In Stock, only 1 left!

0

41

Cub Cadet IM-010709016

Bolt, M5x48

$3.49

$

Usually ships in 3-6 days

0

42

Cub Cadet IM-175154090

Cowling, Cylinder

$

$

Not available

43

Cub Cadet IM-135433630

Baffle Plate

$

$

Not available

45

See Ref No. 81

Gasket, Insulator

$

$

Not available

46

Cub Cadet IM-010109433

Bolt, M5x56

$

$

Not available

47

Cub Cadet IM-199513510

Insulator

$46.99

$

In Stock, only 1 left!

0

48

Cub Cadet IM-125543100

Adjuster

$

$

Not available

49

Cub Cadet IM-010709006

Bolt, M5x12

$

$

Not available

50

Cub Cadet IM-020100005

Nut

$

$

Not available

51

Cub Cadet IM-026100005

Washer

Note: NLA

$

$

Not available

52

See Ref No. 81

Gasket

$

$

Not available

53

Cub Cadet IM-130104450

Carburetor Assembly

$253.99

$

Usually ships in 3-6 days

0

54

Cub Cadet IM-130153240

Valve, Float

$

$

Not available

55

Cub Cadet IM-130123350

Gasket

$

$

Not available

56

Cub Cadet IM-130283357

Diaphragm, Metering

$

$

Not available

57

Cub Cadet IM-130513409

Diaphragm, Pump

$

$

Not available

58

Cub Cadet IM-130513413

Gasket

$

$

Not available

59

Cub Cadet IM-198113900

Rubber

$24.99

$

Usually ships in 3-6 days

0

60

Cub Cadet IM-135713491

Case. Air Silencer

$

$

Not available

61

Cub Cadet IM-023100005

Nut

$

$

Not available

62

Cub Cadet IM-135263311

Element "B", Air Filter

$8.99

$

Usually ships in 3-6 days

0

63

Cub Cadet IM-135263300

Element "A", Air Filter

$8.99

$

In Stock, only 1 left!

0

64

Cub Cadet IM-135713450

Cap, Case

$8.99

$

Usually ships in 3-6 days

0

66

Cub Cadet IM-160113290

Tank, Fuel

$

$

Not available

67

Cub Cadet IM-160033201

Cap Assembly, Fuel Tank

$10.99

$

In Stock, Qty 6

0

68

Cub Cadet IM-160993100

Gasket

$3.99

$

In Stock, Qty 6

0

69

Cub Cadet IM-130303290

Filter, Fuel

$15.99

$

Usually ships in 3-6 days

0

70

Cub Cadet IM-198343181

Clip

$3.49

$

Usually ships in 3-6 days

0

71

Cub Cadet IM-198163080

Hose

Note: NLA

$

$

Not available

72

Cub Cadet IM-198113672

Rubber

$

$

Not available

73

Cub Cadet IM-068209150

Hose

Note: NLA

$

$

Not available

74

Cub Cadet IM-198113560

Rubber

$

$

Not available

75

Cub Cadet IM-160043121

Valve, Reversing

$

$

Not available

76

Cub Cadet IM-198343060

Clip

$

$

Not available

77

Cub Cadet IM-130443121

Connector

$9.99

$

Usually ships in 3-6 days

0

78

Cub Cadet IM-198113620

Rubber

$

$

Not available

79

Cub Cadet IM-198113740

Rubber

Note: NLA

$

$

Not available

80

Cub Cadet IM-068209183

Hose

$

$

Not available

81

Cub Cadet IM-135994160

Gasket Kit

$

$

Not available

82

Cub Cadet IM-155183150

Reel

$

$

Not available

83

Cub Cadet IM-155263290

Spring, Spiral

$

$

Not available
