3-2641 - Toro 22" Walk-Behind Mower (1973) PARTS LIST FOR MODELS 3-2641 AND 3-2651 Parts Diagram

22" Walk-Behind Mower

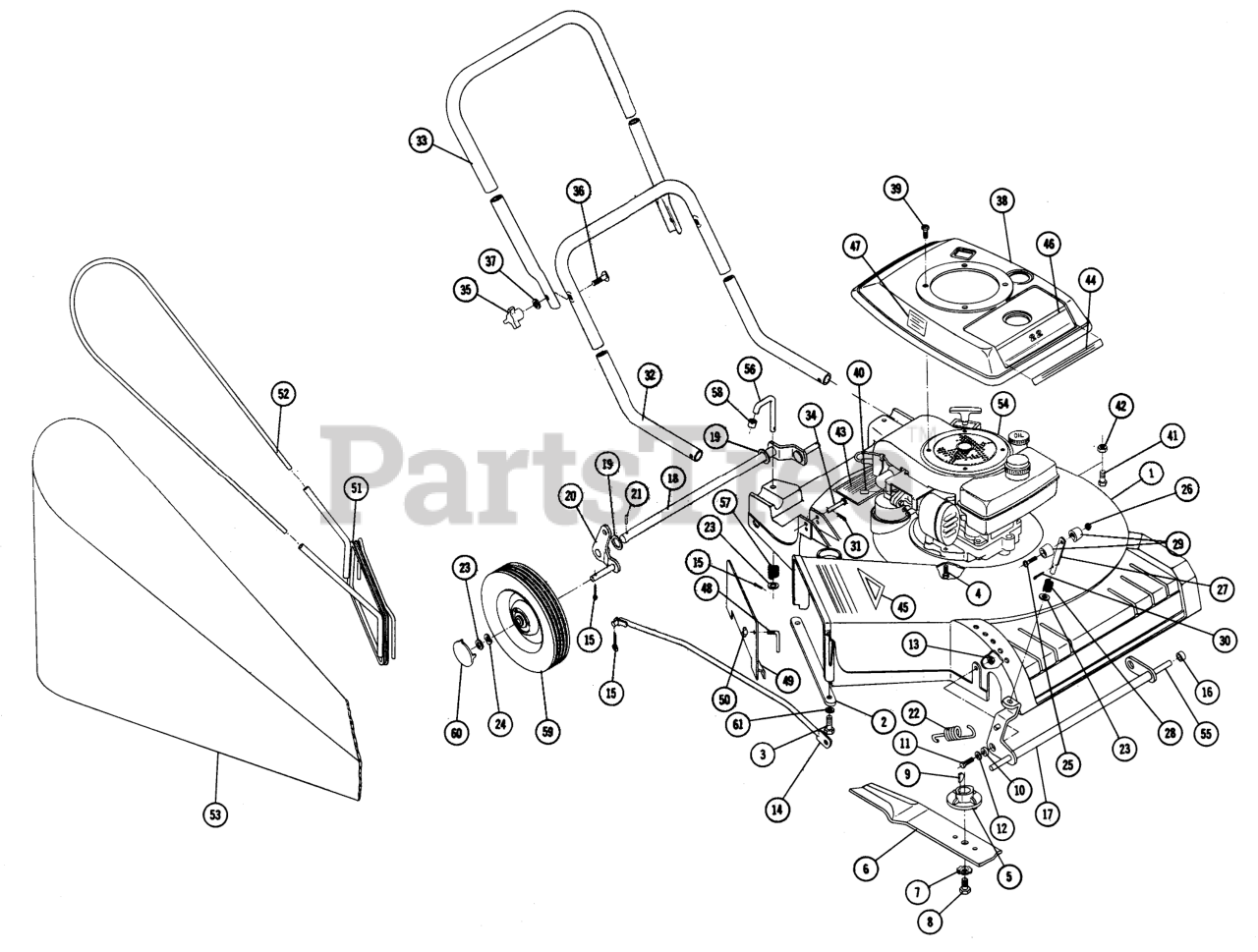

PARTS LIST FOR MODELS 3-2641 AND 3-2651 Parts Diagram

  • Title

1

Toro 8580

Deck

$

$

Currently unavailable

2

Toro 8581

Toe Guard

$

$

Currently unavailable

3

Toro 926695-4

Bolt 5/16-18 x 3/4 Self Tap

$

$

Currently unavailable

4

Toro 911301-4

Screw Hex 5/16-18 x 1 Sems

$

$

Currently unavailable

5

Toro MW-7726

Drive Blade

$

$

Currently unavailable

6

Toro 8551

22" BLADE

$

$

Not available

7

Toro 1336

WASHER

$

$

Not available

8

Toro 908184-5

Bolt 3/8-24 x 1 1/4 Nylok

$

$

Currently unavailable

9

Toro 937155

Key Hi-Pro
(Superseded to 3257-3)

$1.49

$

In Stock, only 4 left!

0

10

Toro 9101

Spacer

$

$

Currently unavailable

11

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

12

Toro 920038-4

Washer

$

$

Currently unavailable

13

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

14

Toro 8591

Rod-Wheel

$

$

Currently unavailable

15

Toro 932008-4

Hairpin

$

$

Currently unavailable

16

Toro 6309

Spacer

$

$

Not available

17

Toro 8592

Height Adjustment Belcrank

$

$

Currently unavailable

18

Toro 8595

Axle-Rear

$

$

Currently unavailable

19

Toro 920013-4

Washer, 5/8

$

$

Currently unavailable

20

Toro 8598

Belcrank Rear

$

$

Currently unavailable

21

Toro 933186

ROLLPIN 3/16 X 7/8

$

$

Not available

22

Toro 8594

SPRING

$

$

Not available

23

Toro 920009-4

Washer

$

$

Currently unavailable

24

Toro MW-4405

Washer

$

$

Currently unavailable

25

Toro 911743-4

Bolt #10-24 x 3/4 Pan Head

$

$

Currently unavailable

26

Toro 915964-4

#10-24 Kep-Nut

$

$

Currently unavailable

27

Toro 8601

Plunger

$

$

Currently unavailable

28

Toro 8602

Spring

$

$

Currently unavailable

29

Toro 8982

Knob

$

$

Currently unavailable

30

Toro 934786-4

Cotter Pin 1/8 x 3/4

$

$

Currently unavailable

31

Toro 933505-4

Hairpin

$

$

Currently unavailable

32

Toro 8608

Handle-Lower

$

$

Not available

33

Toro 8609

Handle-Upper

$

$

Currently unavailable

34

Toro 5523

Pin-Clevis

$

$

Currently unavailable

35

Toro 8610

Knob

$

$

Not available

36

Toro 8684

Bolt 5/16-18 x 1 3/4 Curved Head

$

$

Currently unavailable

37

Toro 920155-4

Lockwasher 5/16 Int. Tooth

$

$

Currently unavailable

38

Toro 7657

Shroud-Engine

$

$

Currently unavailable

39

Toro 911793-4

Screw 1/4-28 x 1/2 Pan Head

$

$

Currently unavailable

40

Toro 9752

Cap

$

$

Currently unavailable

41

Toro 911781-4

Bolt 1/4-20 x 1/2

$

$

Currently unavailable

42

Toro 915661-4

Nut, 1/4-20

$

$

Currently unavailable

43

Toro 8619

NUT, CONDUIT, 1/2 INCH

$

$

Currently unavailable

44

Toro 8620

Decal-Wheel Horse
(Superseded to 83-3410)

$

$

Not available

45

Toro 5699

Decal-ASA Triangle

$

$

Currently unavailable

46

Toro 8875

Decal-22"

$

$

Currently unavailable

47

Toro 9936

Decal-Throttle Control

$

$

Currently unavailable

48

Toro 8624

Stud-Leaf Mulcher

$

$

Currently unavailable

49

Toro 8625

Plate

$

$

Currently unavailable

50

Toro 915584-4

Nut Wing 1/4-20

$

$

Currently unavailable

51

Toro 9183

Frame

$

$

Not available

52

Toro 8989

Hoop

$

$

Not available

53

Toro 8983

Bag

$

$

Not available

54

Toro 8582

Engine

$

$

Currently unavailable

55

Toro 8589

Axle-Front

$

$

Currently unavailable

56

Toro 8615

Hook

$

$

Currently unavailable

57

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

58

Toro 3680

Cap
(Superseded to 105316)

$1.49

$

In Stock, Qty 20+

0

59

Toro 7159

Wheel & Tire Assembly

$

$

Not available

60

Toro 6312

Cap-Hub

$

$

Currently unavailable

61

Toro 920123-4

Lockwasher, 5/16

$

$

Currently unavailable
