3/10 (1692222) - Simplicity Chipper Shredder Housing & Rotor Group - 2/10, 3/10 & 5/10 Parts Diagram

Chipper Shredder

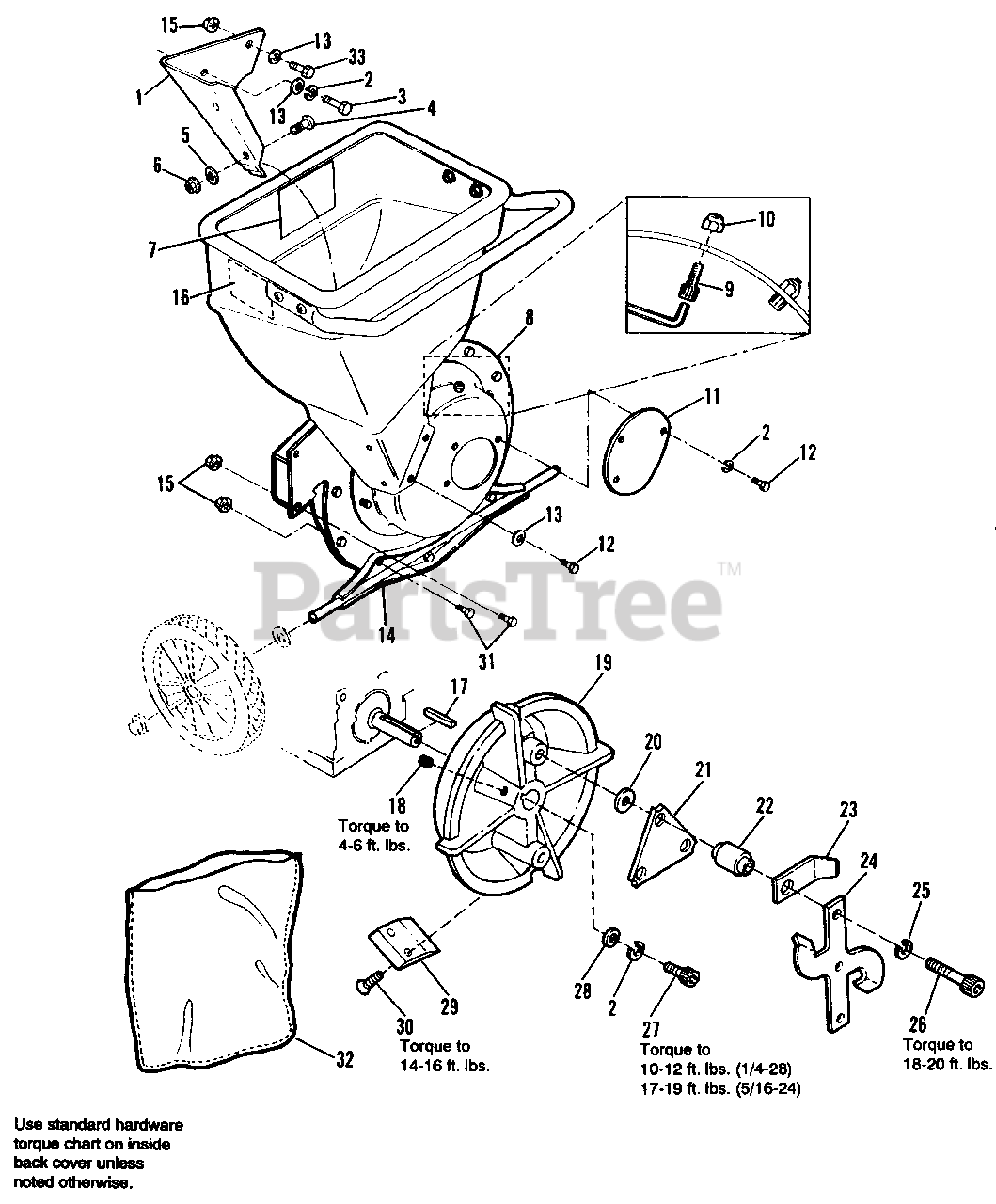

Housing & Rotor Group - 2/10, 3/10 & 5/10 Parts Diagram

  • Title

1

Simplicity 1729176SM

HOPPER LINER

$73.99

$

Usually ships in 2-12 days

0

2

Simplicity 1917356SM

LOCKWASHER, 5/16 (Qty. 4 on Model 3/10, 5/10)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1, Gr.5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

4

Simplicity 1960507SM

SCREW, Button Hd., Hex Socket, 1/4-20 x 3/4

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1921319SM

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1930642SM

NUT, 2-Way, 1/420
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

7

Simplicity 1729208SM

DECAL, Caution/Operate

$

$

Not available

8

Simplicity 1729126SM

BAFFLE PLATE ASSY.

$

$

Not available

9

Simplicity 1729214SM

CAPSCREW, Soc. Hd., 5/16-18 x 1/2

$5.49

$

Usually ships in 2-12 days

0

10

Simplicity 1919438SM

NUT, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1729174SM

COVER, Rotor Housing

$26.99

$

Usually ships in 2-12 days

0

12

Simplicity 1920787SM

CAPSCREW, Hex Hd., 5/16-18 x 1/2
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1924874SM

WASHER, Flat, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1729164SM

A x LE ASSY.

$165.99

$

Usually ships in 2-12 days

0

15

Simplicity 1931277SM

NUT, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

16

Simplicity 1729207SM

DECAL, Danger

$17.99

$

Usually ships in 2-12 days

0

17

Simplicity 1709522SM

KEY, 3/16 x 1/4 x 1-7/8

$2.99

$

Usually ships in 2-12 days

0

18

Simplicity 1960348SM

SET SCREW, 1/4-20 x 3/8

$5.49

$

Usually ships in 2-12 days

0

19

Simplicity 1709868SM

ROTOR

$82.99

$

Usually ships in 2-12 days

0

20

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

21

Simplicity 1729138SM

HAMMER, Triangular

$48.99

$

In Stock, Qty 12

0

22

Simplicity 1709525SM

SPACER

$6.49

$

Usually ships in 2-12 days

0

23

Simplicity 1729137SM

J HAMMER

$50.99

$

In Stock, Qty 8

0

24

Simplicity 1709523

BOOSTER FAN

$

$

Not available

25

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

26

Simplicity 1960496SM

CAPSCREW, Hex, Socket Hd., w/Patch, 3/8-16 x 2 1/2

$2.99

$

Usually ships in 2-12 days

0

27

Simplicity 1960497

CAPSCREW, Hex, Socket Hd., w/Patch 5/1 6-24 x 1 (2/10 Only)

$

$

Not available

27

Simplicity 1960503

CAPSCREW, Hex, Socket Hd., w/Patch, 1/4-28 x 1 (3/10, 5/10 Only)

$

$

Not available

28

Simplicity 1933468SM

WASHER, 5/16 (2/10 Only)

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 1933468SM

WASHER, 1/4 (3/10, 5/10 Only)

$4.49

$

Usually ships in 2-12 days

0

29

Simplicity 1729147SM

KNIFE

$

$

Not available

30

Simplicity 1960344SM

SCREW, Machine, Socket Flat.Hd., 5/16-18 x 3/4

$3.49

$

Usually ships in 2-12 days

0

31

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

32

Simplicity 1709403SM

BAG, 24" x 36"

$

$

Not available

33

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4, Gr.5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0
