3-0200 - Toro Bladeless Walk-Behind Mower (1970) PARTS LIST FOR MODEL 3-0200 Parts Diagram

Bladeless Walk-Behind Mower

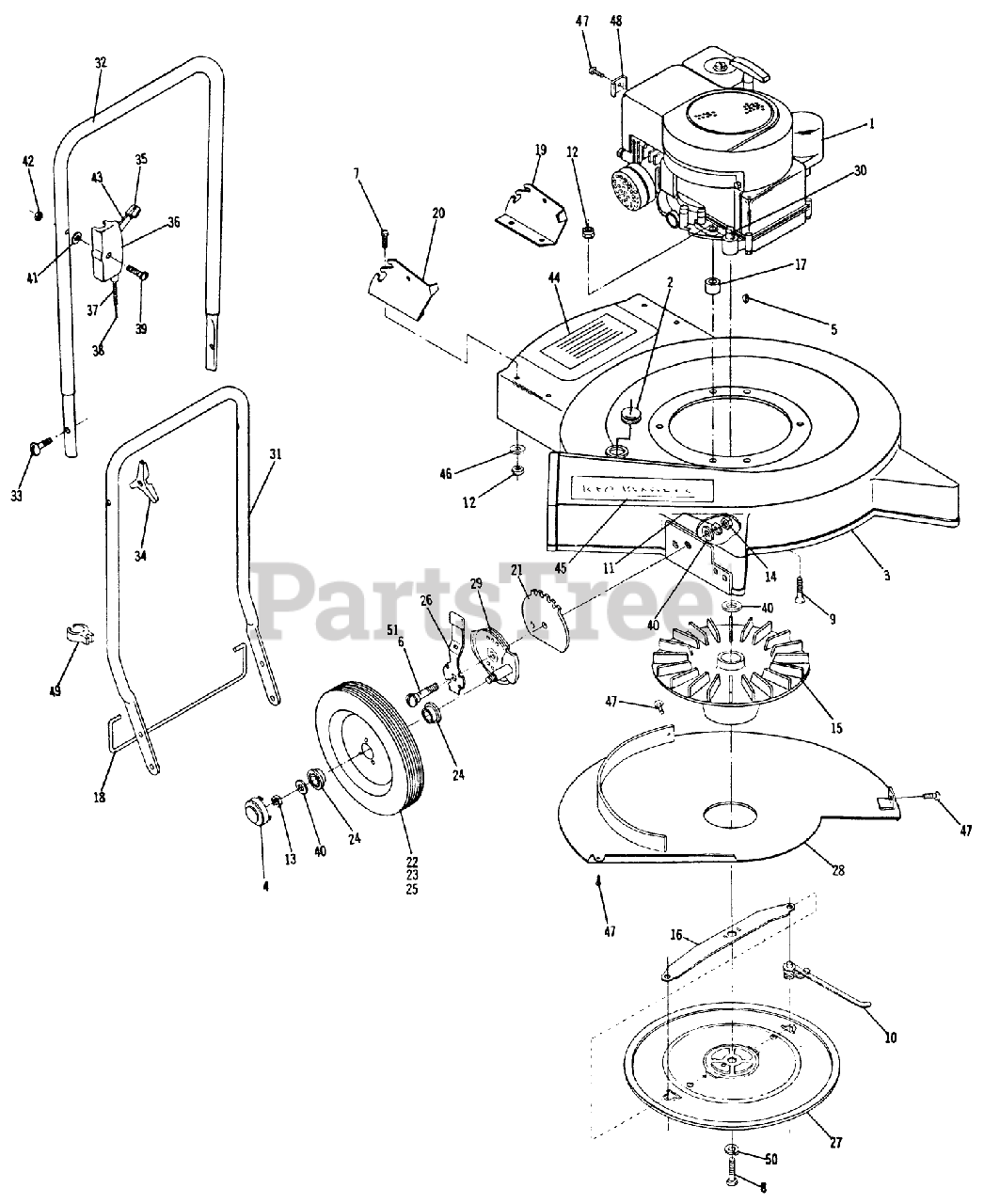

PARTS LIST FOR MODEL 3-0200 Parts Diagram

  • Title

1

Toro 100816

Engine

$

$

Currently unavailable

2

Toro 100817

Plastic Plug

$

$

Currently unavailable

3

Toro 100819

Deck-Magnesium

$

$

Currently unavailable

4

Toro 100820

Hub Cap-Plastic

$

$

Currently unavailable

5

Toro 937009

Key #5 Woodruff
(Superseded to 937084)

$

$

Not available

6

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

7

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

8

Toro 908189-4

Bolt Hex 3/8-24 x 2 1/2

$

$

Currently unavailable

9

Toro 908841-4

Bolt C-Sunk Hd. 5/16-18 x 2

$

$

Currently unavailable

10

Toro 102122

Ass-y.-Tine & Spool

$

$

Not available

11

Toro 920083-4

Lockwasher

$

$

Currently unavailable

12

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

13

Toro 915113-6

Nut

$

$

Currently unavailable

14

Toro 915113-4

Nut

$

$

Currently unavailable

15

Toro 100824

Fan Wheel

$

$

Currently unavailable

16

Toro 102121

Retainer

$

$

Currently unavailable

17

Toro 100826

Spacer

$

$

Currently unavailable

18

Toro 100827

Bar-Handle

$

$

Currently unavailable

19

Toro 100829

Handle Bracket-Left

$

$

Currently unavailable

20

Toro 100828

Handle Bracket-Right

$

$

Currently unavailable

21

Toro 100830

Index Plate

$

$

Currently unavailable

22

Toro 100832

Wheel-Complete

$

$

Currently unavailable

23

Toro 100835

Tire

$

$

Currently unavailable

24

Toro 100833

Roller Bearing

$

$

Not available

25

Toro 100834

Wheel

$

$

Currently unavailable

26

Toro 100836

Adjustment Arm

$

$

Currently unavailable

27

Toro 102123

Rotor

$

$

Currently unavailable

28

Toro 100840

Fan Shield

$

$

Currently unavailable

29

Toro 100841

Axle Plate

$

$

Currently unavailable

30

Toro 100842

Oil Gauge

$

$

Currently unavailable

31

Toro 100843

Handle-Lower

$

$

Not available

32

Toro 100844

Handle-Upper

$

$

Currently unavailable

33

Toro 100823

Bolt 5/16-18-Special

$

$

Currently unavailable

34

Toro 8610

Knob

$

$

Not available

35

Knob-Plastic

$

$

Not available

36

Toro 100847

Control Deck-Plastic

$

$

Not available

37

Toro 100848

Wire-Housing

$

$

Currently unavailable

38

Toro 100849

Wire

$

$

Currently unavailable

39

Toro 908825-4

Screw 1/4-20 x 1 1/4

$

$

Currently unavailable

40

Toro 920039-4

Washer

$

$

Currently unavailable

41

Toro 920037-4

Washer

$

$

Currently unavailable

42

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

43

Toro 100850

Handle

$

$

Currently unavailable

44

Toro 8619

NUT, CONDUIT, 1/2 INCH

$

$

Currently unavailable

45

Toro 100852

Decal

$

$

Currently unavailable

46

Toro 920038-4

Washer

$

$

Currently unavailable

47

Toro 926235-4

Screw # 10-12 Type-A x 5/8

$

$

Currently unavailable

48

Toro 7922

CLIP-CABLE

$3.99

$

Usually ships in 3-6 days

0

49

Toro 7098

Clip-Control

$

$

Currently unavailable

50

Toro 102120

Tab Washer

$

$

Not available

51

Toro 6331

SPACER CLUTCH ARM

$

$

Not available
