2X 945 SWE (31BH97SW710) - Cub Cadet 2X 45" SWE Snow Thrower (2013) Handle, Panel & Discharge Chute Parts Diagram

2X 45" SWE Snow Thrower

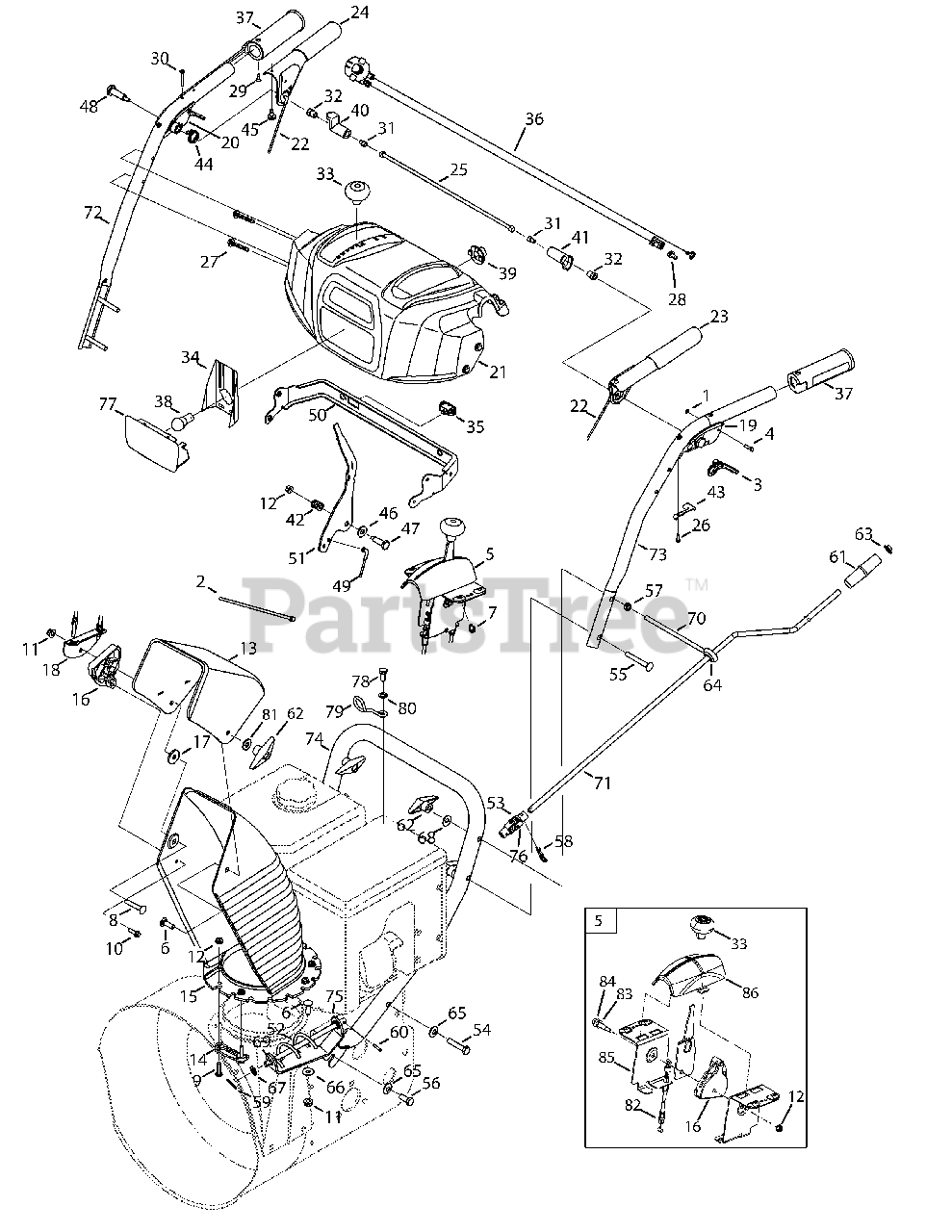

Handle, Panel & Discharge Chute Parts Diagram

  • Title

1

Cub Cadet 716-04036

E-Ring

$6.49

$

In Stock, Qty 6

0

2

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

3

Cub Cadet 731-04954

Trigger Lock

$5.99

$

In Stock, Qty 15

0

4

Cub Cadet 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 19

0

5

Cub Cadet 984-04230

Chute Control Assembly

$134.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 14

0

7

Cub Cadet 710-04187

Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

8

Cub Cadet 710-0458

Carriage Screw, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet 710-0597

Hex Screw 1/4-20 x 1.0

$3.99

$

In Stock, Qty 14

0

10

Cub Cadet 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

11

Cub Cadet 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 731-0846C

Upper Chute, 6.0

$52.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 731-0903E

Lower Chute

$43.99

$

In Stock, Qty 8

0

16

Cub Cadet 731-1313C

Cbl. Guide, Chute Tilt

$11.99

$

In Stock, Qty 20+

0

17

Cub Cadet 936-0231

Flat Wash, .344 x 1.125 x .12
(Superseded to 736-0231)

$

$

Not available

18

Cub Cadet 784-5594-0637

Cable Bracket

$11.99

$

In Stock, only 1 left!

0

19

Cub Cadet 631-04133A

Handle Assembly, LH

$15.99

$

In Stock, only 1 left!

0

20

Cub Cadet 631-04134B

Handle Assembly, RH

$15.99

$

In Stock, only 1 left!

0

21

Cub Cadet 931-04187A

Handle Panel

$71.99

$

In Stock, only 1 left!

0

22

Cub Cadet 646-0012

Cable Ass’y, Auger/Drive

$36.99

$

In Stock, only 1 left!

0

23

Cub Cadet 684-04105B

Engagement Handle, LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

24

Cub Cadet 684-04106C

Engagement Handle, RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 1 left!

0

25

Cub Cadet 684-04250

Clutch Lock Rod Assembly

$12.99

$

In Stock, only 2 left!

0

26

Cub Cadet 710-04326

Screw, #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

27

Cub Cadet 710-04586

Screw, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

28

Cub Cadet 710-0599

Hex Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0837

Screw, #10-16 x .625

$4.49

$

In Stock, Qty 6

0

30

Cub Cadet 710-1233

Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

31

Cub Cadet 710-3069

Screw, 1/4-20 x .50

$4.99

$

In Stock, Qty 10

0

32

Cub Cadet 712-04081A

Nut, Hex, 1/4-20

$7.49

$

In Stock, only 3 left!

0

33

Cub Cadet 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

34

Cub Cadet 777X41804

Lens Lable

$9.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 725-04393

Heated Grip Switch

$16.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 725-05148

Wire Harness

$69.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 725-05149

Heated Grip

$80.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 925-1629

Lamp, 12.8V

$11.99

$

In Stock, Qty 14

0

39

Cub Cadet 925-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

40

Cub Cadet 731-04894D

Lock Plate

$5.49

$

In Stock, only 1 left!

0

41

Cub Cadet 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 8

0

42

Cub Cadet 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

43

Cub Cadet 732-04219C

Clutch Lock Spring

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 732-04238

Torsion Spring, .8156 ID x .3038
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

45

Cub Cadet 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

46

Cub Cadet 936-0267

Flat Washer, .385 x .87 x .06
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

47

Cub Cadet 738-04125

Screw, Shldr., .374 x 1.05

$4.99

$

In Stock, only 4 left!

0

48

Cub Cadet 738-04348

Screw, Shldr., .437 x 1.345

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 746-04341

Clutch Cable

$25.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 790-00248C-0637

Panel Bracket
(Superseded to 790-00248E-0637)

$24.99

$

In Stock, only 1 left!

0

51

Cub Cadet 790-00281B-0637

Shift Lever

$18.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 684-04308A

Chute Crank Assembly

$39.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 684-04350

Joint Block Assembly

$29.99

$

In Stock, only 4 left!

0

54

Cub Cadet 710-04682

Hex Screw, 3/8-16 x 2.00

$5.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 710-0572

Carriage Screw, 5/16-18 x 2.5

$4.49

$

In Stock, only 4 left!

0

56

Cub Cadet 710-3118

Screw, Hex, 3/8-16 x 1.00

$5.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 912-3010

Nut, Hex, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

59

Cub Cadet 714-04040

Pin, Bow-tie Cotter

$1.49

$

In Stock, Qty 20+

0

60

Cub Cadet 715-04095

Spring Pin, .156 dia. x .875 Lg.

$5.49

$

In Stock, only 2 left!

0

61

Cub Cadet 720-0201A

Knob, Crank

$10.99

$

In Stock, only 4 left!

0

62

Cub Cadet 920-0284

Knob, Wing Nut, 5/16-18
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

63

Cub Cadet 926-0100

Push Cap, 3/8
(Superseded to 726-0100)

$

$

Not available

64

Cub Cadet 735-0234

Rubber Grommet

$5.49

$

In Stock, only 2 left!

0

65

Cub Cadet 736-0105

Bell Wash, .375 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

67

Cub Cadet 936-0185

Flat Wash, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 3 left!

0

68

Cub Cadet 736-0242

Wash, Bell, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

69

Cub Cadet 941-0475

Plastic Bushing, .38 ID

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 747-04747

Eye Bolt, .70 Dia.

$12.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 747-04925A-0637

Chute Rod, .375 Dia. x 29.72

$38.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 749-04674-0637

Handle, Upper, RH

$51.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 749-04675-0637

Handle, Upper, LH

$51.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 749-0991-0637

Handle, Lower

$79.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 790-00329-0637

Chute Crank Bracket

$16.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 715-0150

Roll Pin, 3/16 Dia. x 1.100

$4.49

$

In Stock, Qty 17

0

77

Cub Cadet 731-05324

Lens

$14.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 710-04022

Hex Screw, M8-1.25
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 732-04677

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 936-0264

Flat Washer, .330 x .630 x .0635

$6.99

$

In Stock, only 3 left!

0

81

Cub Cadet 936-0159

Washer, Flat, .349 x .879
(Superseded to 736-0159)

$

$

Not available

82

Cub Cadet 746-04338

Cable, Chute Tilt
(Superseded to 946-04338)

$56.99

$

In Stock, only 2 left!

0

83

Cub Cadet 736-0413

Washer, Spring, .39 x .625 x .012

$6.99

$

In Stock, only 2 left!

0

84

Cub Cadet 738-04185

Screw, Shoulder, .31 x .995:1/4-20

$8.49

$

Usually ships in 3-6 days

0

85

Cub Cadet 790-00200A-0637

Bracket, Mounting

$18.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 731-05307

Cover, Tilt Cover

$11.99

$

Usually ships in 3-6 days

0
