2X 945 SWE (31AH97SW756) - Cub Cadet 2X 45" SWE Snow Thrower (2015) Augers, Housing & Gearbox Parts Diagram

2X 45" SWE Snow Thrower

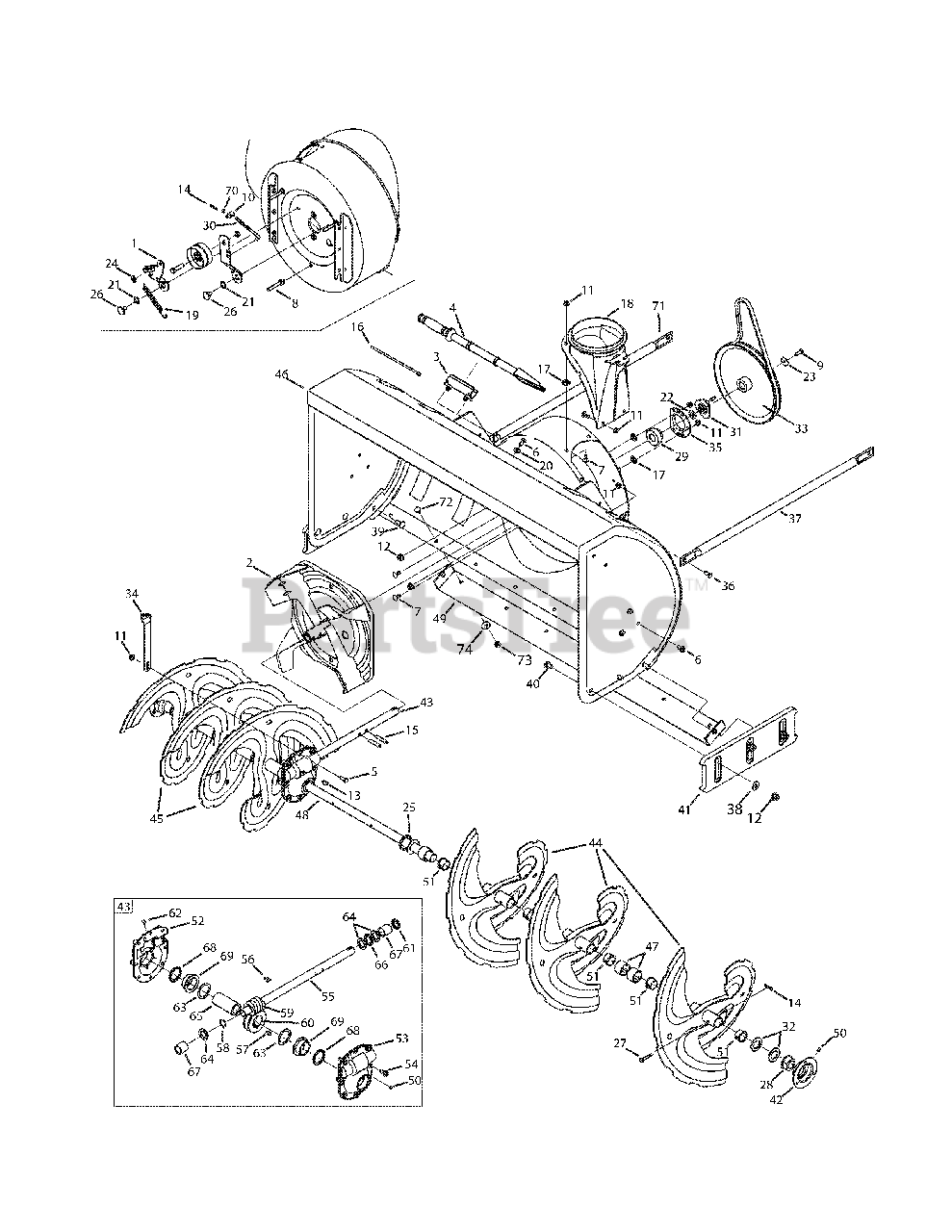

Augers, Housing & Gearbox Parts Diagram

  • Title

1

Cub Cadet 918-0281A

Bracket Assembly, Auger Brake

$64.99

$

In Stock, only 4 left!

0

2

Cub Cadet 684-0090B-0637

Impeller, 16"

$425.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-11421

Clip, Mounting

$11.99

$

In Stock, Qty 7

0

4

Cub Cadet 931-2643

Tool, Clean-out

$19.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 x 1.0 Gr5

$3.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0451

Screw, Carriage, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-04606A

Screw w/Stud, 5/16-18 x .4300

$7.49

$

In Stock, only 1 left!

0

9

Cub Cadet 710-1245B

Screw, Hex Cap Lock, 5/16-24, 875

$8.49

$

In Stock, only 2 left!

0

10

Cub Cadet 911-0677

Ferrule

$17.99

$

In Stock, only 4 left!

0

11

Cub Cadet 712-04063

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04065

Nut, Hex Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 914-0135

Key, Woodruff, 1/4 x 3/4
(Superseded to 714-0135)

$

$

Not available

14

Cub Cadet 714-04040

Pin, Bow-tie Cotter

$1.49

$

In Stock, Qty 20+

0

15

Cub Cadet 915-0118

Pin, Spiral, 5/16 x 1.75
(Superseded to 715-0118)

$

$

Not available

16

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

17

Cub Cadet 926-04012

Nut, Push
(Superseded to 726-04012)

$

$

Not available

18

Cub Cadet 731-1696B

Adapter, Chute, 6"

$91.99

$

In Stock, only 4 left!

0

19

Cub Cadet 732-0858

Spring, Extension

$24.99

$

In Stock, Qty 6

0

20

Cub Cadet 936-0159

Washer, Flat, .349 x .879 .063
(Superseded to 736-0159)

$

$

Not available

21

Cub Cadet 736-0174

Washer, Wave, .625 x .885 x .015

$6.99

$

In Stock, only 2 left!

0

22

Cub Cadet 736-0188

Washer, Bell., .78 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0505

Washer, Flat, .34 x 1.5 x .15 Ht.

$6.49

$

In Stock, only 2 left!

0

24

Cub Cadet 936-3008

Washer, .344 x .75 x .12

$6.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-3046A

Washer, 1.01 x 1.86 x .06

$8.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 938-0281

Screw, Shoulder, .625 x .17
(Superseded to 738-0281)

$

$

Not available

27

Cub Cadet 738-04155

Pin, Shear, .25 x 1.75

$1.99

$

In Stock, Qty 20+

0

28

Cub Cadet 941-0170

Bearing, Flange w/Flats

$19.99

$

In Stock, only 4 left!

0

29

Cub Cadet 941-04024

Bearing, Self Aligning

$64.99

$

In Stock, only 1 left!

0

30

Cub Cadet 747-0980A

Rod, Auger Idler

$47.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 748-04067A

Adapter, Pulley w/Pins

$26.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 950-04020

Spacer, 1.004 x 1.375 x .25

$12.99

$

In Stock, only 1 left!

0

33

Cub Cadet 756-04244A

Pulley, Auger Drive, 10.0

$60.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 790-00264A-0637

Bracket, Gear Box Support

$19.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 05244B

Housing, Bearing

$23.99

$

In Stock, only 2 left!

0

36

Cub Cadet 710-3008

Screw, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 749-04485-0637

Tube, Support , LH

$34.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-3034

Screw, Carriage, 3/8-16 x .75

$3.99

$

In Stock, Qty 5

0

40

Cub Cadet 710-3168

Screw, Carriage, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 731-07032

Skid Shoe

$45.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 784-0315A-0637

Housing, Bearing

$

$

Not available

43

Cub Cadet 918-04514

Gear Box Assembly

$543.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 684-04151-0637

Spiral Assembly, LH

$261.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 684-04152-0637

Spiral Assembly, RH

$261.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 684-04234-4021

Housing, Auger - 45"
(Superseded to 684-04234-0716)

$1010.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 731-05163

Spacer, 1.50 x 1.00 x 1.00

$7.49

$

In Stock, Qty 20+

0

48

Cub Cadet 738-04159

Axle, Spiral

$229.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 790-00280-4021

Shave Plate, 45"
(Superseded to 790-00280-0637)

$60.99

$

In Stock, only 4 left!

0

50

Cub Cadet 937-3000

Grease Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 741-0494

Flange Bushing

$3.99

$

In Stock, only 2 left!

0

52

Cub Cadet 918-0246

Housing Assembly, Auger, RH

$

$

Not available

53

Cub Cadet 918-0435

Housing Assembly, Auger, LH

$109.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-1260A

Screw, LD, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 711-04714

Auger Drive Shaft

$66.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 914-0126

Key, Hi Pro, 3/16 x 3/4
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 19

0

57

Cub Cadet 914-0135

Key, 1/4 x 3/4 Dia.
(Superseded to 714-0135)

$

$

Not available

58

Cub Cadet 716-0111

External Retainer Ring

$6.99

$

In Stock, Qty 8

0

59

Cub Cadet 917-0299

Gear, Worm

$124.99

$

In Stock, only 2 left!

0

60

Cub Cadet 917-1425

Gear, Worm, LH

$177.99

$

In Stock, only 2 left!

0

61

Cub Cadet 921-0145

Seal, Oil

$9.99

$

In Stock, only 1 left!

0

62

Cub Cadet 721-0325

Plug

$4.49

$

In Stock, only 4 left!

0

63

Cub Cadet 936-0266

Wash, Flat, 1.52ID x 2.0 OD
(Superseded to 736-0266)

$

$

Not available

64

Cub Cadet 936-0291

Wash, Flat, .88 ID x .38 OD
(Superseded to 736-0291)

$11.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 741-0184

Bearing, Thrust

$16.99

$

In Stock, only 3 left!

0

67

Cub Cadet 941-0217

Sleeve

$17.99

$

In Stock, Qty 10

0

68

Cub Cadet 921-0146

Oil Seal

$12.99

$

In Stock, only 3 left!

0

69

Cub Cadet 741-0670

Flange Bearing

$13.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 712-3007

Jam Nut, 5/16-18

$6.99

$

In Stock, Qty 5

0

71

Cub Cadet 749-04489-0637

Tube, Support, RH

$32.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 710-04525

Screw, Carriage, 5/16-18 x .750

$6.99

$

In Stock, only 4 left!

0

73

Cub Cadet 712-04103

Nut, Hex, 5/16-18
(Superseded to 712-05158)

$4.49

$

In Stock, only 4 left!

0

74

Cub Cadet 736-04216

Washer, Bell., .34 x .872 x .060

$6.99

$

In Stock, only 4 left!

0
