2X 530 SWE (31BH55TU710) - Cub Cadet 2X 30" SWE Snow Thrower (2013) 483-SUB Muffler & Controls Parts Diagram

2X 30" SWE Snow Thrower

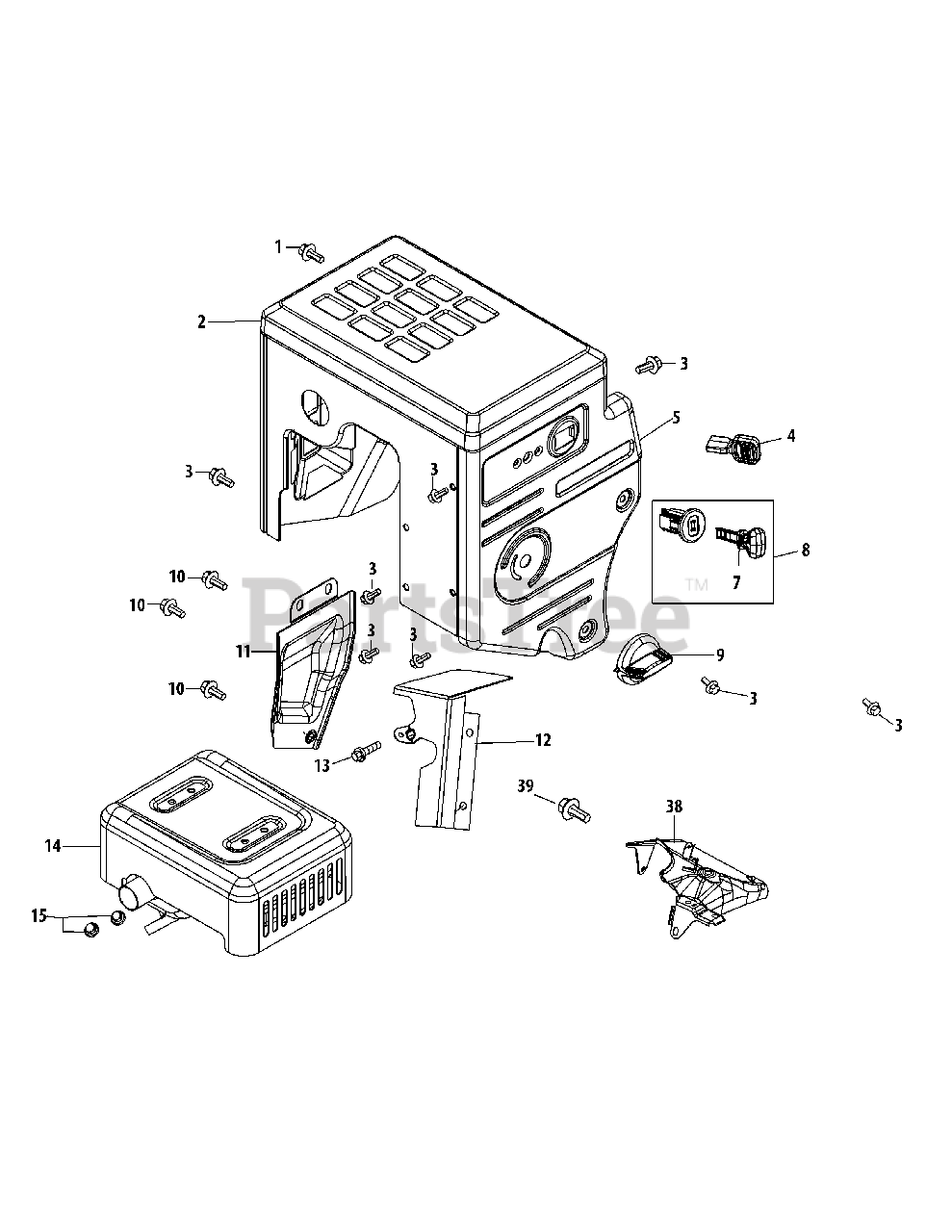

483-SUB Muffler & Controls Parts Diagram

  • Title

1

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, only 3 left!

0

2

Cub Cadet 951-11339

Muffler Shield

$80.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, only 3 left!

0

4

Cub Cadet 951-10757

Throttle Control Knob
(Superseded to 951-11224)

$7.99

$

In Stock, Qty 5

0

5

Cub Cadet 951-11595

Control Panel

$54.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 731-05632

Key
(Superseded to 951-10630)

$6.99

$

In Stock, Qty 7

0

8

Cub Cadet 951-10637

Key Switch Assembly

$14.99

$

In Stock, only 1 left!

0

9

Cub Cadet 951-11302

Choke Knob

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet 710-04914

Bolt M6×10

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet 951-11181

Exhaust Pipe Shield

$30.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 951-11321

Carburetor Heat Shield

$28.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

14

Cub Cadet 951-11338

Muffler Assembly

$139.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-05015

Nut, M8

$6.99

$

In Stock, Qty 6

0

38

Cub Cadet 951-11311

Throttle Control Assembly

$47.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, only 3 left!

0
