2X 528 SWE (31BH54TT709) - Cub Cadet 2X 28" SWE Snow Thrower (2013) Auger & Housing Parts Diagram

2X 28" SWE Snow Thrower

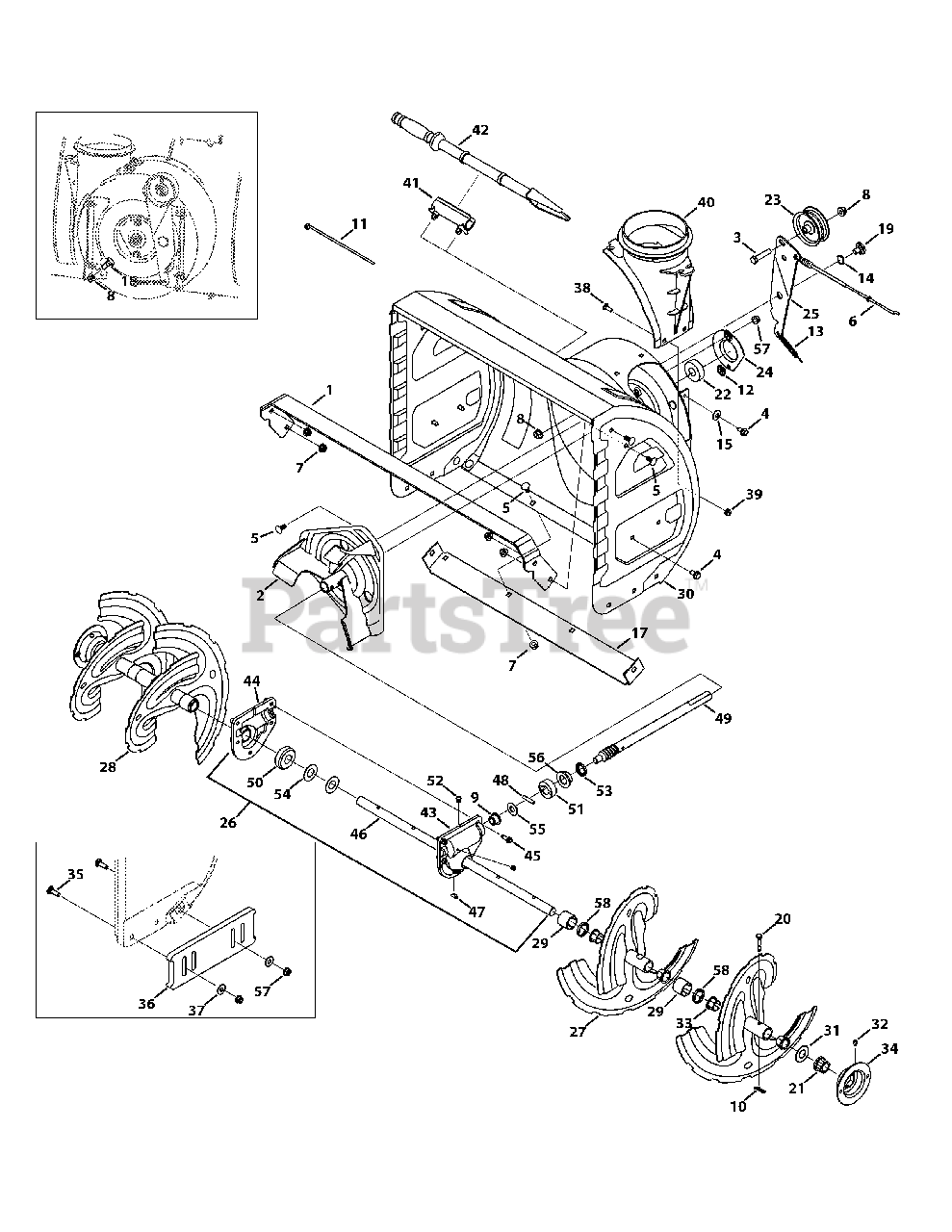

Auger & Housing Parts Diagram

  • Title

1

Cub Cadet 790-00485-0637

Housing Support Bracket, 30"

$78.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-04057A-0637

Impeller Assembly
(Superseded to 684-04057C-0637)

$73.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0347

Hex Bolt, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 946-04230A

Auger Clutch Cable
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

8

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 741-0663

Flange Bearing, .50 x .75 x .59

$9.99

$

In Stock, Qty 20+

0

10

Cub Cadet 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

11

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 926-04012

Push-On Nut, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

13

Cub Cadet 732-04460

Extension Spring, .38 OD x 4.59

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0174

Wave Washer, .625 x .885 x .0175

$6.99

$

In Stock, Qty 12

0

15

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-04216

Bell Washer, .340 x .872 x .060

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 790-00118-4021

Shave Plate, 28"
(Superseded to 790-00118-0637)

$37.99

$

In Stock, Qty 20+

0

18

Cub Cadet 738-0143

Shoulder Screw, 3/8-16 x .496 x .336

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 938-0281

Shoulder Screw, 3/8-16 x .625 x .17
(Superseded to 738-0281)

$

$

Not available

20

Cub Cadet 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

21

Cub Cadet 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

22

Cub Cadet 941-0309

Flange Ball Bearing, .75 x 1.85

$74.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 756-04224

Flat Idler Pulley

$26.99

$

In Stock, Qty 20+

0

24

Cub Cadet 790-00075

Bearing Housing
(Superseded to 790-00075B)

$6.49

$

In Stock, Qty 12

0

25

Cub Cadet 790-00080A-0637

Auger Idler Bracket
(Superseded to 790-00080D)

$28.99

$

In Stock, Qty 11

0

26

Cub Cadet 918-04193A

Gearbox Assembly, Auger, 28"
(Superseded to 918-04173B)

$331.99

$

In Stock, only 1 left!

0

27

Cub Cadet 684-04107-0637

Spiral Assembly - LH
(Superseded to 684-04107A-0637)

$89.99

$

In Stock, Qty 20+

0

28

Cub Cadet 684-04108-0637

Spiral Assembly - RH
(Superseded to 684-04108A-0637)

$94.99

$

In Stock, Qty 10

0

29

Cub Cadet 731-04870

Spacer, 1.25 x .75 x 1.00

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 984-04257-4021

Auger Housing, 28"
(Superseded to 684-04257A-4021)

$274.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 937-3000

Drive Lube Fitting

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 741-0493A

Flange Bushing, .800 x .910
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 790-00138A-0637

Bearing Housing

$15.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 710-0276

Spacer, Carriage, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 10

0

36

Cub Cadet 731-06931

Deluxe Polymer Skid Shoe - Blue
(Superseded to 731-11514)

$29.99

$

In Stock, Qty 7

0

37

Cub Cadet 936-0159

Washer, Flat, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

38

Cub Cadet 710-0703

Carriage Screw, 1/4-20 x 0.75

$4.49

$

In Stock, Qty 15

0

39

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 731-07525

Chute Adapter

$18.99

$

In Stock, Qty 17

0

41

Cub Cadet 731-2635

Clean-out Tool Mtg. Bracket
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 20+

0

42

Cub Cadet 931-2643

Clean-Out Tool

$19.99

$

In Stock, Qty 16

0

43

Cub Cadet 918-0123A

Housing Assembly - RH

$52.99

$

In Stock, Qty 20+

0

44

Cub Cadet 918-0418A

Housing Assembly - LH

$62.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-0642

Screw, 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 711-04283

Axle, Auger, 28"
(Superseded to 711-06145)

$89.99

$

In Stock, only 2 left!

0

47

Cub Cadet 914-0161

Hi-Pro Key

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 715-04021

Dowel Pin, .25OD x 1.25

$4.49

$

In Stock, Qty 16

0

49

Cub Cadet 917-04126

Worm Shaft

$79.99

$

In Stock, Qty 11

0

50

Cub Cadet 917-04861

Worm Gear, 20T

$43.99

$

In Stock, Qty 20+

0

51

Cub Cadet 718-04071

Thrust Collar

$7.99

$

In Stock, Qty 9

0

52

Cub Cadet 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 721-0327

Oil Seal, .75 x 1.131 x .188

$6.99

$

In Stock, Qty 20+

0

54

Cub Cadet 936-0351

Flat Washer, .76 x 1.5
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

56

Cub Cadet 741-0662

Flange Bearing, .75 x 1.00 x .59

$10.99

$

In Stock, Qty 18

0

57

Cub Cadet 912-0158

Hex Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 18

0

58

Cub Cadet 731-04871

Spacer, 1.25 OD x .75 ID x 3/16 Lg

$6.99

$

In Stock, Qty 20+

0
