2X 524 WE (31AM63SR756) - Cub Cadet 2X 24" WE Snow Thrower (2015) Drive System Parts Diagram

2X 24" WE Snow Thrower

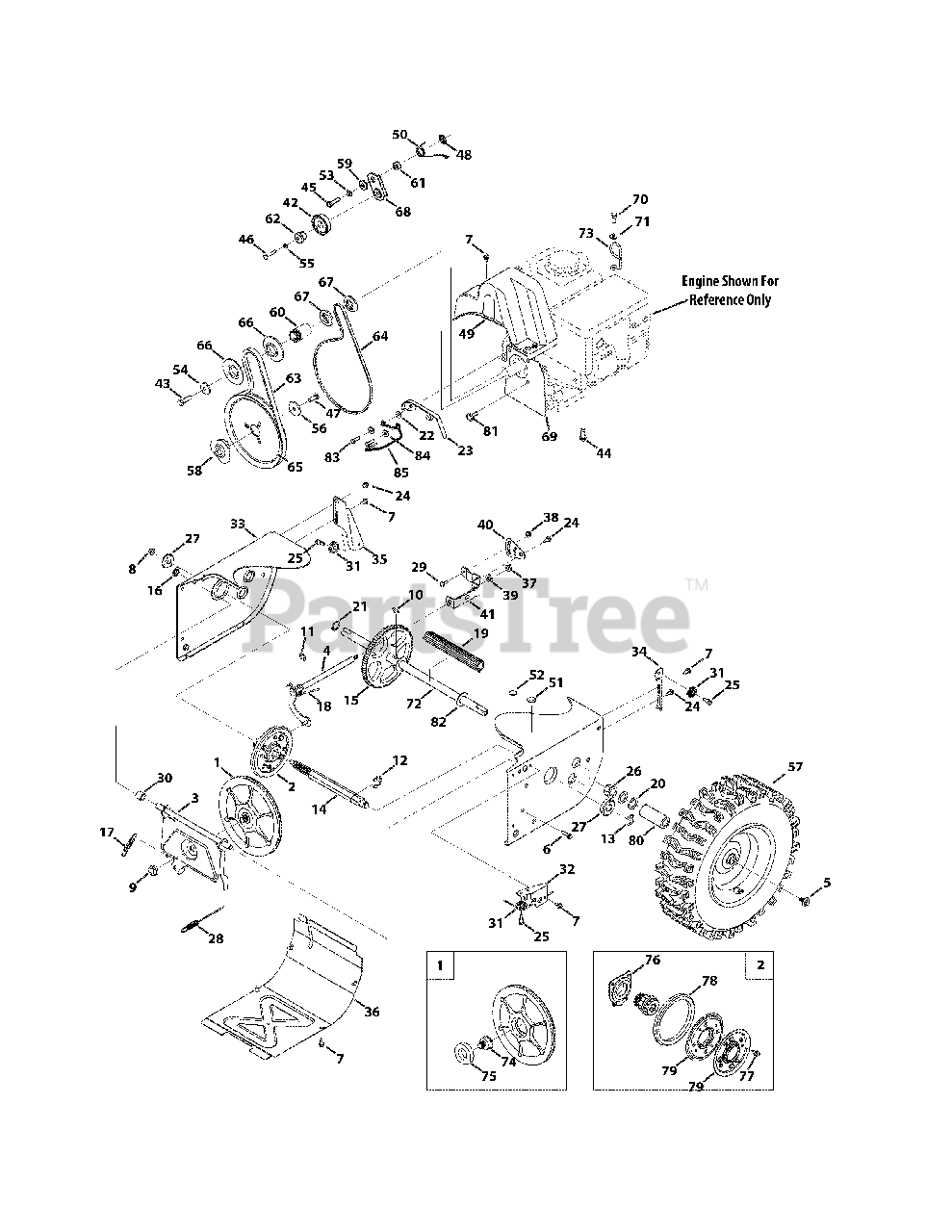

Drive System Parts Diagram

  • Title

1

Cub Cadet 656-04055

Disc Assembly, Friction Wheel
(Superseded to 656-04055A)

$59.99

$

In Stock, Qty 15

0

2

Cub Cadet 684-04153C

Friction Wheel Assembly, 5.5 OD

$101.99

$

In Stock, Qty 20+

0

3

Cub Cadet 684-04154B-0637

Friction Wheel Support Bracket

$41.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-04156A

Rod Shift Assembly

$61.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-05339A

Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0788

Taptite Screw, 1/4-20 x 1.000

$7.49

$

In Stock, only 2 left!

0

7

Cub Cadet 710-1652

Taptite Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet 914-0126

Hi-pro Key, 3/16 x 3/4 Dia.
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 12

0

11

Cub Cadet 916-0104

E-Ring

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 716-0136

Retaining E-Ring, .875 Dia.

$8.99

$

In Stock, Qty 18

0

13

Cub Cadet 916-0231

E-Ring, .750 Dia.
(Superseded to 716-0231)

$

$

Not available

14

Cub Cadet 917-04209A

Hex Shaft, 7-Tooth
(Superseded to 917-04209B)

$143.99

$

In Stock, only 2 left!

0

15

Cub Cadet 917-04230

Gear, 80-Tooth

$108.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 726-0221

Speed Nut, .500

$6.49

$

In Stock, only 2 left!

0

17

Cub Cadet 932-0264

Extension Spring

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 732-04311A

Torsion Spring, .750 x .968

$10.99

$

In Stock, only 3 left!

0

19

Cub Cadet 731-08181

Axle Spacer

$10.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 936-0287

Flat Washer, .793 x 1.24 x .060
(Superseded to 736-0287)

$

$

Not available

21

Cub Cadet 736-04161

Flat Washer, .75 x 1.00 x .060

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0278

Washer, Flat, .330 x .687 x .030

$5.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 731-07101

Belt Cover

$10.99

$

In Stock, only 2 left!

0

24

Cub Cadet 738-04184A

Shoulder Screw, .368 x .113, 1/4-20

$6.99

$

In Stock, Qty 5

0

25

Cub Cadet 738-0924A

Shoulder Screw, 1/4-28, .340 x .355

$6.99

$

In Stock, Qty 5

0

26

Cub Cadet 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

27

Cub Cadet 941-0563

Ball Bearing, 17 x 40 x 12

$36.99

$

In Stock, Qty 7

0

28

Cub Cadet 946-05067

Wheel Clutch Cable, 44.955"

$25.99

$

In Stock, Qty 14

0

29

Cub Cadet 710-0751

Hex Head Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 748-0190

Spacer, .508 ID x .75 OD x .68

$6.49

$

In Stock, Qty 11

0

31

Cub Cadet 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

32

Cub Cadet 790-00096A-0637

Auger Cable Front Guide Bracket
(Superseded to 790-00096B-0637)

$9.49

$

In Stock, only 2 left!

0

33

Cub Cadet 790-00180C-0637

Frame
(Superseded to 790-00180D-0637)

$160.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 790-00206A-0637

Auger Cable Guide Bracket
(Superseded to 790-00206B)

$8.49

$

In Stock, only 1 left!

0

35

Cub Cadet 790-00207C

Drive Cable Guide Bracket
(Superseded to 790-03997)

$5.49

$

In Stock, Qty 6

0

36

Cub Cadet 790-00316-0637

Frame Cover

$47.99

$

In Stock, Qty 5

0

37

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 936-3015

Washer, Flat, .469 x .875 x .105

$4.49

$

In Stock, Qty 19

0

40

Cub Cadet 790-00217A-0637

Speed Selector Pivot Bracket
(Superseded to 790P01117)

$53.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 790-00218A-0637

Speed Selector Shift Bracket
(Superseded to 790-00218A)

$47.99

$

In Stock, only 1 left!

0

42

Cub Cadet 684-04169

Idler Pulley Assembly

$34.99

$

In Stock, Qty 8

0

43

Cub Cadet 710-0191

Hex Screw, 3/8-24 x 1.25

$4.99

$

In Stock, Qty 9

0

44

Cub Cadet 710-0654A

Sems Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 710-0672

Hex Screw, 5/16-24 x 1.25

$4.49

$

In Stock, Qty 16

0

46

Cub Cadet 710-0809

Hex Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 17

0

47

Cub Cadet 710-1245B

Hex Head Screw, 5/16-24 x .875

$8.49

$

In Stock, only 4 left!

0

48

Cub Cadet 926-04012

Push-on Nut, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

49

Cub Cadet 731-05353B

Belt Cover

$

$

Not available

50

Cub Cadet 732-04308C

Torsion Spring, .850 ID x .333

$5.49

$

In Stock, Qty 20+

0

51

Cub Cadet 735-04099

Plug, 3/8 ID

$5.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 735-04100

Plug, 1/2 ID

$5.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

54

Cub Cadet 736-3082A

Flat Washer, .45 x 1.5 x .172

$9.99

$

In Stock, Qty 16

0

55

Cub Cadet 936-0329

Washer, Lock, 1/4

$4.49

$

In Stock, Qty 9

0

56

Cub Cadet 736-0505

Flat Washer, .34 x 1.50 x .150

$6.49

$

In Stock, Qty 11

0

57

Cub Cadet 634-04147A-0931

X-Trac Wheel, 15 x 5 x 6, LH

$239.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 634-04148A-0931

X-Trac Wheel, 15 x 5 x 6, RH

$

$

Not available

58

Cub Cadet 748-04053A

Adapter Pulley, .75 Dia.

$22.99

$

In Stock, only 3 left!

0

59

Cub Cadet 748-04112B

Shoulder Spacer, .3175 x .5 x .0975

$4.49

$

In Stock, Qty 9

0

60

Cub Cadet 750-04303

Spacer, .875 ID x 1.185 OD

$17.99

$

In Stock, only 4 left!

0

61

Cub Cadet 750-04477A

Spacer, .340 x .750 x .330

$5.49

$

In Stock, only 1 left!

0

62

Cub Cadet 750-04571

Shoulder Space, .260 x .785 x .538

$6.99

$

In Stock, only 1 left!

0

63

Cub Cadet 954-04050A

Auger Drive Belt

$27.99

$

In Stock, Qty 20+

0

64

Cub Cadet 954-04260

Wheel Drive Belt

$28.99

$

In Stock, Qty 20+

0

65

Cub Cadet 756-04109

Auger Drive Pulley, 8.1 x .5

$54.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 756-04113

Pulley Half, 2.600 OD
(Superseded to 756-06563)

$3.99

$

In Stock, only 2 left!

0

67

Cub Cadet 756-04252

Pulley Half, 3/8 x 1.716 OD

$6.49

$

In Stock, only 2 left!

0

68

Cub Cadet 790-00208D

Wheel Drive Idler Bracket

$8.99

$

In Stock, Qty 9

0

69

Cub Cadet 790-00289A-0637

Cover Plate
(Superseded to 790-00289B-0637)

$26.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 710-1681

Hex Head Screw, 1.25 x 20

$5.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 936-0264

Washer, Flat, .330 x .630 x .0635

$6.99

$

In Stock, only 2 left!

0

72

Cub Cadet 738-04493

Axle, .75 x 22
(Superseded to 938-04493)

$63.99

$

In Stock, Qty 5

0

73

Cub Cadet 732-0705

Cable Guide

$11.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 738-04164A

Friction Disc Bearing Pin

$24.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 741-04098

Ball Bearing, 30 x 55 x 13

$21.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 618-0063A

Bearing Assembly

$92.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 710-04484

Taptite Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

78

Cub Cadet 935-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

79

Cub Cadet 790-00174C

Friction Wheel Plate

$14.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 731-04873

Spacer, 1.25 x .75 x 3.0

$10.99

$

In Stock, Qty 7

0

81

Cub Cadet 738-04439

Shoulder Screw, .500 x .145

$3.99

$

In Stock, Qty 5

0

82

Cub Cadet 736-0188

Washer, Flat, .760 x 1.49 x .060

$4.49

$

In Stock, Qty 20+

0

83

Cub Cadet 710-0117A

Hex Head Screw, 5/16-24 x 1.00

$5.49

$

Usually ships in 3-6 days

0

84

Cub Cadet 936-0159

Washer, Flat, .349 x .879
(Superseded to 736-0159)

$

$

Not available

85

Cub Cadet 747-06336A

Belt Guide

$

$

Not available
