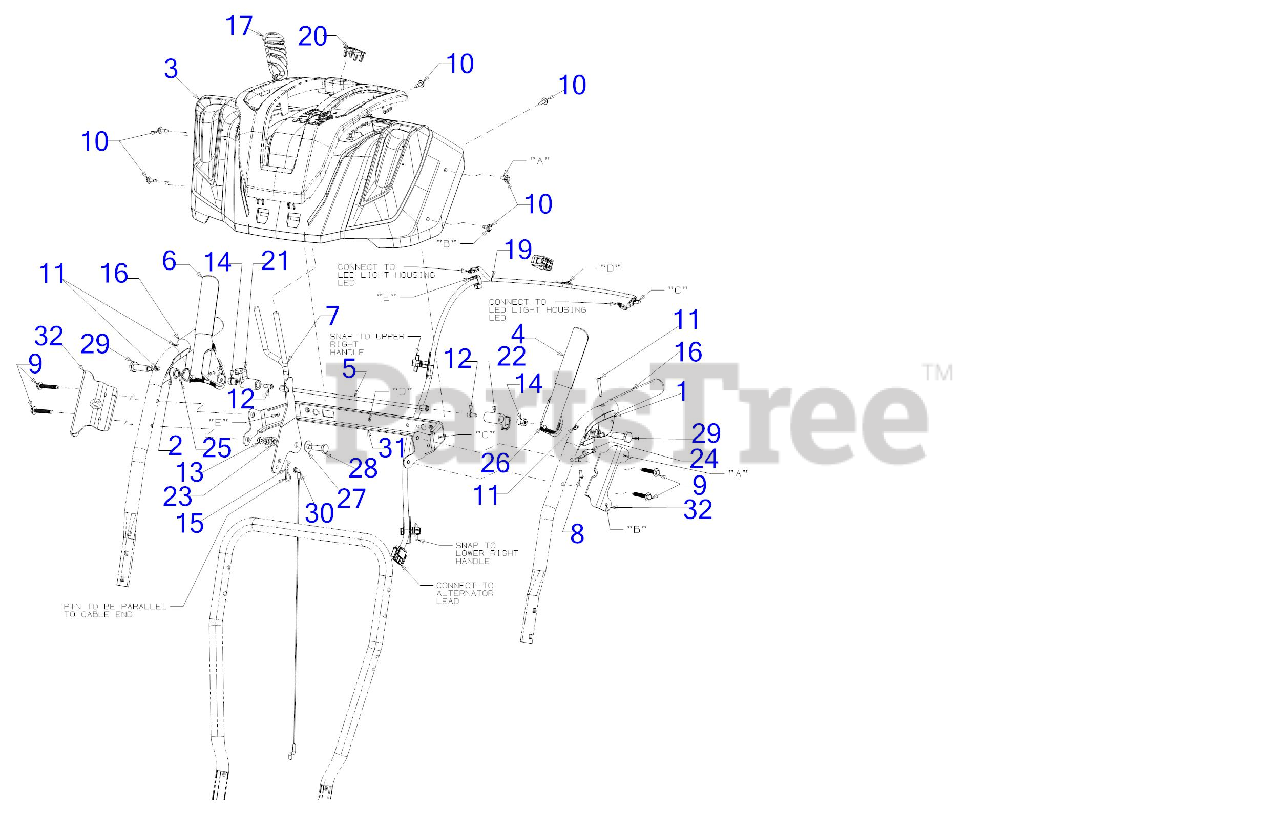

2X 28" Snow Thrower

Panel Parts Diagram

  • Title

1

Cub Cadet 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, only 1 left!

0

1

Cub Cadet 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, only 1 left!

0

2

Cub Cadet 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$15.99

$

In Stock, only 1 left!

0

2

Cub Cadet 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 631-05607

HANDLE PANEL ASSEMBLY
(Superseded to 631-05607A)

$106.99

$

In Stock, only 1 left!

0

3

Cub Cadet 731-13053

LENS-LED SNOW

Note: (Not Shown)

$7.99

$

In Stock, only 2 left!

0

3

Cub Cadet 925-05119

HEADLIGHT HARNESS ASSEMBLY

Note: (Not Shown)

$60.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 753-06470

SCREW 8/16 x .500

Note: (Not Shown)

$2.99

$

In Stock, Qty 12

0

4

Cub Cadet 684-04105C

HANDLE ASSEMBLY (LH)
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

5

Cub Cadet 684-04250

PIVOT ROD

$12.99

$

In Stock, only 2 left!

0

6

Cub Cadet 684-05226

HANDLE ASSEMBLY (RH)
(Superseded to 684-05226A)

$29.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 984-05229

SPEED SHIFT CONTROL ASSEMBLY
(Superseded to 984-05229-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 984-05229-0637

SPEED SHIFT CONTROL (POWDER BLACK) - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

9

Cub Cadet 710-04586

SCREW 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

10

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 15

0

11

Cub Cadet 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

12

Cub Cadet 710-3069

SCREW 1/4-20 x .50

$4.99

$

In Stock, Qty 10

0

13

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04081A

HEX NUT W/PATCH

$7.49

$

In Stock, only 3 left!

0

15

Cub Cadet 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 720-0274

GRIP

$11.99

$

In Stock, only 1 left!

0

17

Cub Cadet 720-05086

PTO HANDLE GRIP .355 ID

$12.99

$

In Stock, only 1 left!

0

19

Cub Cadet 725-07175

HEADLIGHT HARNESS

$58.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 731-04010

PANEL SWITCH PLUG

$20.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 731-04894D

LOCK PLATE

$5.49

$

In Stock, only 1 left!

0

22

Cub Cadet 731-04896B

CLUTCH LOCK CAM
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 8

0

23

Cub Cadet 732-0193

COMPRESSION SPRING

$4.99

$

In Stock, Qty 6

0

24

Cub Cadet 732-04219C

CLUTCH SPRING

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 732-04238B

TORSION SPRING

$5.49

$

In Stock, Qty 11

0

26

Cub Cadet 935-0199A

RUBBER BUMPER
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

27

Cub Cadet 936-0267

FLAT WASHER
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

28

Cub Cadet 738-04125

SHOULDER SCREW

$4.99

$

In Stock, only 4 left!

0

29

Cub Cadet 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 946-04396A

SPEED SELECTOR CABLE (PLASTIC)

$20.99

$

In Stock, Qty 20+

0

31

Cub Cadet 790-00248E

HANDLE SUPPORT BRACKET
(Superseded to 790-00248E-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00248E-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

32

Cub Cadet 790-00846

HANDLE PANEL BRACKET
(Superseded to 790-00846-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00846-0637

HANDLE PANEL BRACKET (POWDER BLACK) - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0
