2X 24 HP (31AM5BSR710) - Cub Cadet 2X 24" Snow Thrower (2016) Auger Housing Parts Diagram

2X 24" Snow Thrower

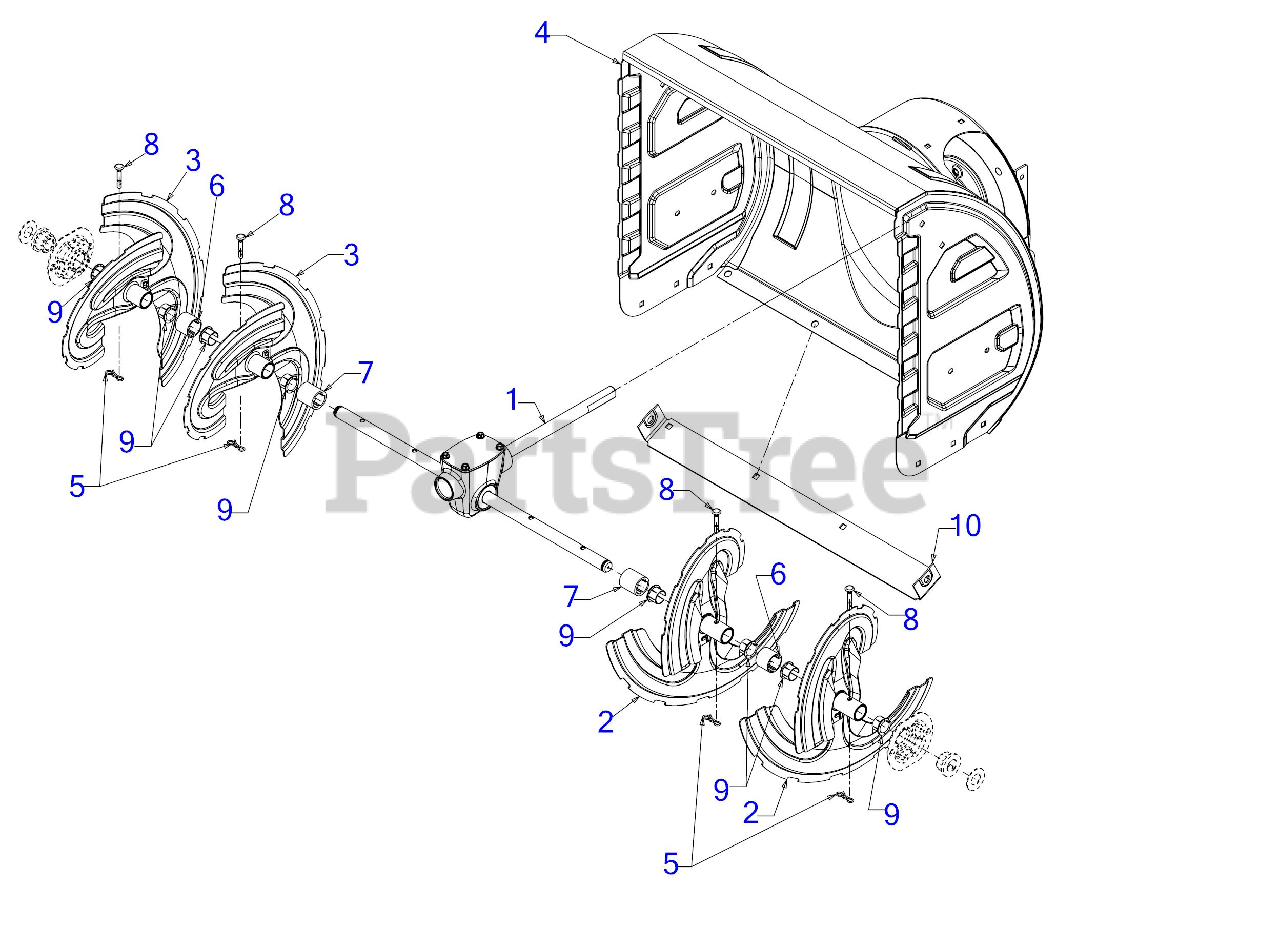

Auger Housing Parts Diagram

  • Title
1

Cub Cadet 918-07025

24" AUGER GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$315.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-04107A-0637

AUGER ASSEMBLY (LH)

$89.99

$

In Stock, Qty 20+

0

3

Cub Cadet 684-04108A-0637

AUGER ASSEMBLY (RH)

$94.99

$

In Stock, Qty 10

0

4

Cub Cadet 684-05197-4021

24" AUGER HOUSING ASSEMBLY
(Superseded to 684-05197A-4021)

$316.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

Cub Cadet 731-04870

SPACER 1.25OD x .75ID X1.00 LG

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 731-10286

SPACER 1.25OD x .75ID x 1.312 LG

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

9

Cub Cadet 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 790-00120-4021

24" SHAVE PLATE
(Superseded to 790-00120-0637)

$34.99

$

In Stock, Qty 20+

0
