2X 24 HP (31AM53SR710) - Cub Cadet 2X 24" Snow Thrower (2015) Auger & Housing Parts Diagram

2X 24" Snow Thrower

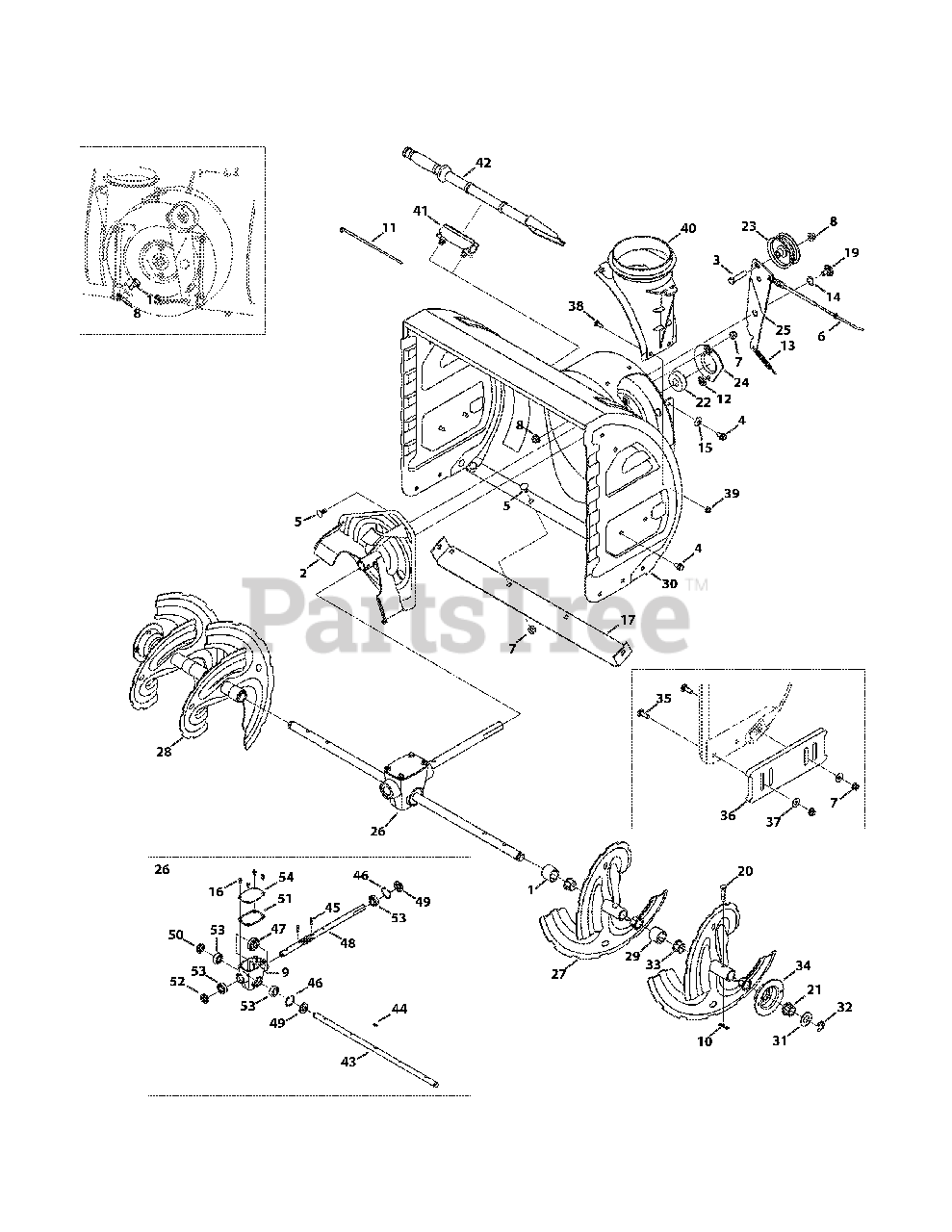

Auger & Housing Parts Diagram

  • Title

1

Cub Cadet 731-10286

Spacer, 1.25 x .75 x 1.312

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-04057B-0637

Impeller Assembly
(Superseded to 684-04057C-0637)

$73.99

$

In Stock, Qty 5

0

3

Cub Cadet 710-0347

Hex Bolt, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 946-04230A

Auger Clutch Cable
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 919-05029

Auger Housing

$84.99

$

In Stock, only 1 left!

0

10

Cub Cadet 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

11

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

12

Cub Cadet 926-04012

Push-On Nut, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

13

Cub Cadet 732-04460

Extension Spring, .38 OD x 4.59

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0174

Wave Washer, .625 x .885 x .0175

$6.99

$

In Stock, only 2 left!

0

15

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0642

Screw, 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 790-00120-4021

Shave Plate, 24"
(Superseded to 790-00120-0637)

$34.99

$

In Stock, Qty 20+

0

18

Cub Cadet 738-0143

Shoulder Screw, 3/8-16 x .496 x .336

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 938-0281

Shoulder Screw, 3/8-16 x .625 x .17
(Superseded to 738-0281)

$

$

Not available

20

Cub Cadet 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

21

Cub Cadet 741-05041

Hex Flange Bearing

$9.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 941-0309

Flange Ball Bearing, .75 x 1.85

$74.99

$

In Stock, only 2 left!

0

23

Cub Cadet 756-04224

Flat Idler Pulley

$26.99

$

In Stock, Qty 20+

0

24

Cub Cadet 790-00075

Bearing Housing
(Superseded to 790-00075B)

$6.49

$

In Stock, only 1 left!

0

25

Cub Cadet 790-00080C

Auger Idler Bracket
(Superseded to 790-00080D)

Variations

Cub Cadet 790-00080C-0637

Auger Idler Bracket - POWDER BLACK

$28.99

$

In Stock, only 4 left!

0

$28.99

$

In Stock, only 4 left!

0

26

Cub Cadet 918-07025

Gearbox Assembly, Auger, 24"

$315.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 684-04107A-0637

Spiral Assembly - LH

$89.99

$

In Stock, Qty 7

0

28

Cub Cadet 684-04108A-0637

Spiral Assembly - RH

$94.99

$

In Stock, Qty 14

0

29

Cub Cadet 731-04870

Spacer, 1.25 x .75 x 1.00

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 684-04259-4021

Auger Housing, 24"
(Superseded to 684-04259A-4021)

$446.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 916-0231

E-Ring, .750
(Superseded to 716-0231)

$

$

Not available

33

Cub Cadet 741-0493A

Flange Bushing, .800 x .910
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 790-00534-4021

Hex Bearing Housing

$13.99

$

In Stock, only 1 left!

0

35

Cub Cadet 710-0276

Spacer, Carriage, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 14

0

36

Cub Cadet 731-06931

Deluxe Slide Shoe
(Superseded to 731-11514)

$29.99

$

In Stock, only 2 left!

0

37

Cub Cadet 936-0159

Washer, Flat, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

38

Cub Cadet 710-0703

Carriage Screw, 1/4-20 x 0.75

$4.49

$

In Stock, Qty 15

0

39

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 731-07525

Chute Adapter

$18.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 731-11421

Clean-out Tool Mtg. Bracket

$11.99

$

In Stock, Qty 7

0

42

Cub Cadet 931-2643

Clean-Out Tool

$19.99

$

In Stock, only 1 left!

0

43

Cub Cadet 711-04285A

Axle, Auger, 24"

$90.99

$

In Stock, only 1 left!

0

44

Cub Cadet 914-0161

Hi-Pro Key

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 715-04034

Pin, Roll, .25 x 1.0

$6.99

$

In Stock, only 3 left!

0

46

Cub Cadet 716-05001

Retainer Ring

$3.49

$

In Stock, only 1 left!

0

47

Cub Cadet 917-04861

Worm Gear, 20T

$43.99

$

In Stock, Qty 20+

0

48

Cub Cadet 917-05230

Worm Shaft

$75.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 721-04612

Seal, .75 x 40mm x .25

$5.49

$

In Stock, Qty 20+

0

50

Cub Cadet 721-04613

Seal, .75 x 1.375 x .25

$4.49

$

In Stock, Qty 9

0

51

Cub Cadet 921-04614A

Gearbox Gasket

$5.49

$

In Stock, only 2 left!

0

52

Cub Cadet 721-04707

Plug, 1.375 OD x .25

$5.49

$

In Stock, only 1 left!

0

53

Cub Cadet 941-05042

Ball Bearing, .75 x 40 x 12

$11.99

$

In Stock, only 2 left!

0

54

Cub Cadet 783-08281

Gearbox Cover

$8.49

$

Usually ships in 3-6 days

0
