2X 24 (31AM6HVRB09) - Cub Cadet 2X 24" Snow Thrower (2022) Auger Gearbox Assembly Parts Diagram

2X 24" Snow Thrower

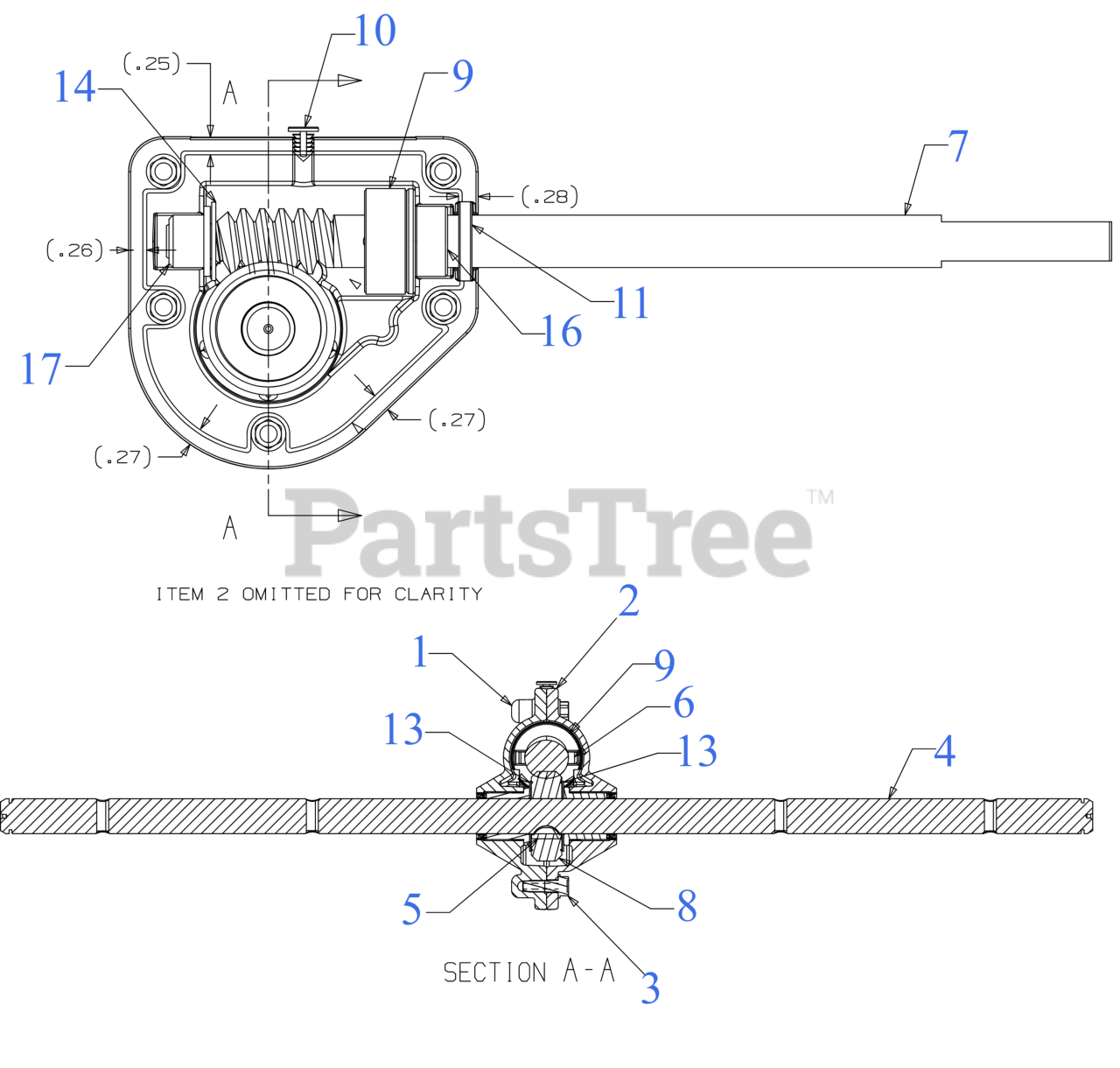

Auger Gearbox Assembly Parts Diagram

  • Title

1

Cub Cadet 918-0123A

REDUCER HOUSING ASSEMBLY (RH)

$52.99

$

In Stock, Qty 19

0

1

Cub Cadet 918-0123A

REDUCER HOUSING ASSEMBLY (RH)

Note: (Not Shown)

$52.99

$

In Stock, Qty 19

0

1

Cub Cadet 921-0338

SEAL-.750X1.00X.125

Note: (Not Shown)

$7.49

$

In Stock, Qty 20+

0

1

Cub Cadet 741-0661B

FLANGE BEARING

Note: (Not Shown)

$10.99

$

In Stock, Qty 11

0

2

Cub Cadet 918-0124A

REDUCER HOUSING ASSEMBLY (LH)

$52.99

$

In Stock, Qty 16

0

2

Cub Cadet 918-0124A

REDUCER HOUSING ASSEMBLY (LH)

Note: (Not Shown)

$52.99

$

In Stock, Qty 16

0

2

Cub Cadet 921-0338

SEAL-.750X1.00X.125

Note: (Not Shown)

$7.49

$

In Stock, Qty 20+

0

2

Cub Cadet 741-0661B

FLANGE BEARING

Note: (Not Shown)

$10.99

$

In Stock, Qty 11

0

3

Cub Cadet 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-04285A

24" AUGER SHAFT

$90.99

$

In Stock, only 3 left!

0

5

Cub Cadet 914-0161

KEY 3/16 x 5/8 HI-PRO

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 715-04021

DOWEL PIN

$4.49

$

In Stock, Qty 15

0

7

Cub Cadet 917-04126

WORM SHAFT

$79.99

$

In Stock, Qty 11

0

8

Cub Cadet 917-04861

WORM GEAR 20T

$43.99

$

In Stock, Qty 20+

0

9

Cub Cadet 718-04071

COLLAR-THRUST .756ID x .600

$7.99

$

In Stock, Qty 9

0

10

Cub Cadet 721-0325

PLUG

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 721-0327

OIL SEAL .75 x 1.131 x .188

$6.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0351

THRUST WASHER

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-3084

FLAT WASHER

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 737-0168A

ALVANIA GREASE

$30.99

$

In Stock, Qty 14

0

16

Cub Cadet 741-0662

FLANGE BEARING

$10.99

$

In Stock, Qty 17

0

17

Cub Cadet 741-0663

FLANGE BEARING

$9.99

$

In Stock, Qty 20+

0

Cub Cadet 918-04171C

GEARBOX ASSEMBLY 24"

$407.99

$

In Stock, only 2 left!

0
